Signature Hardware GEOFFREY 948169 Manual

Cast iron pedestal tub
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
G E O F F R E Y
CAST IRON PEDESTAL TUB
SKU: 948169
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
faucet, plumbing, sink, counter top, or for personal
injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping damage.
If any damage is found, contact our Customer
Relations team via live chat at www.signaturehard-
ware.com or by emailing support@siganturehard-
ware.com.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
Ensure that your bathroom �oor is adequately
supported, and the �nished �oor is level.
Keep the plumbing connections around the tub
easily accessible for any future maintenance that
may be necessary.
This product uses a low pro�le pedestal with
reduced clearance below the drain. Horizontal
waste tube will be approximately 3/4" below
�nished �oor level. Floor must be channeled to
accommodate drain.
ADDITIONAL QUESTIONS?
Still need help? Check out our Help Center at
www.signaturehardware.com for product and
warranty information, or contact us through live
chat or by emailing support@signaturehard-
ware.com.

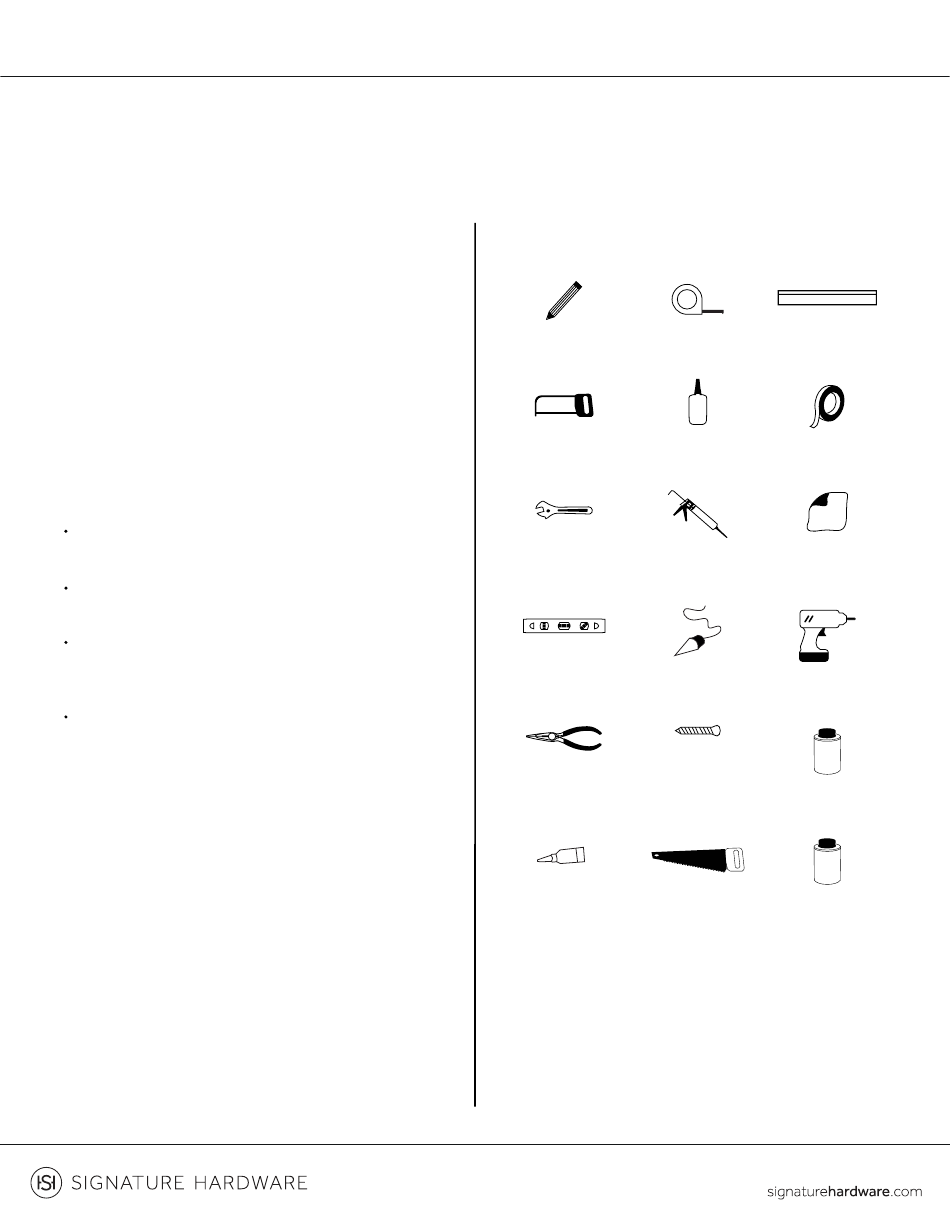

TOOLS AND MATERIALS:
Pencil
Hacksaw
Thread Sealant
Adjustable
Wrench
Silicone Sealant
Level
Long-nose Pliers
Lubricant
(provided)
1
Tape Measure
Straight Edge
Plumber's
Tape
Neutral Cure
Damp
Cloth
Plumb Line
Drill
1-3/4" Screws
(x5)
PVC Primer
Saw
PVC Cement
REVISED 05/05/2021
1.855.715.1800
CODES: 513838

Advertisement

loading
Need help?

Need help?

Do you have a question about the GEOFFREY 948169 and is the answer not in the manual?

Questions and answers

Related Manuals for Signature Hardware GEOFFREY 948169

Summary of Contents for Signature Hardware GEOFFREY 948169

  • Page 1 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the faucet, plumbing, sink, counter top, or for personal Pencil Tape Measure...
  • Page 2 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 QUICK CONNECT DRAIN INSTALLATION 1. Drill a 4” diameter hole in the sub �oor where the 3. Cut the provided 1 ½” PVC pipe 3” shorter than the drain will be installed.
  • Page 3 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 5. Apply PVC primer and cement to the outside of the 7. Insert the drain plug into the drop-in drain, if not PVC pipe and to the inside of the drop-in drain insert. already inserted.
  • Page 4 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 9. Install the �ooring surface, such as tile, leaving an 11. Once ready for tub installation, apply the provided opening around the drain as shown. lubricant to the rubber portion of the inside of the drain.
  • Page 5 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 13. Apply the provided lubricant to the entire tail piece 14. With caution, slowly drop the tub into position, being used. Position the bathtub so that the tail piece inserting the tail piece into the drop-in drain.
  • Page 6 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 TUB INSTALLATION 1. Set the tub in the desired installation location and 4. Next you will need to trim your drain and over�ow drop a plumb line from the center of the over�ow hole pipes to the appropriate sizes.
  • Page 7 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 6. The over�ow tee (A) will be attached at the points 8. Remove the drain and over�ow assembly from the tub, where the drain pipes intersect (B). and trim the pipes at the marked locations with a hacksaw.
  • Page 8 G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 11. Install the over�ow assembly with the beveled 13. Refer to below illustration for completed assembly. washer, over�ow plate, mounting screw (provided) and any other washers or rubber sealing gaskets included.

  • Page 9: Cleaning And Maintenance

    G E O F F R E Y CAST IRON PEDESTAL TUB SKU: 948169 15. Finish your installation by applying a bead of silicone sealant around the base of the plinth where it meets the �oor. Wipe away any excess sealant with a damp cloth. CLEANING AND MAINTENANCE Cast iron tubs have a porcelain enamel surface that is fused to the cast iron under high temperatures and is one of the best heat-resistant coatings available.
