Summary of Contents for Meijer Jumbo RBK
- Page 1 Jumbo RBK Manual Round bale grab Meijer Holland bale handling systems Duinkerkenstraat 11 NL-9723 BN Groningen The Netherlands T + 3 1 ( 0) 5 0 3 1 26 4 4 8 F + 3 1 ( 0 )5 0 3 1 3 8 0 18 i n fo @ m e i j e r h o l l a n d .
-
Page 3: Table Of Contents
4. The functioning of the bale grab ..................7 5. Installation, starting up, adjustment ................... 8 6. Operation and use ......................9 7. Maintenance ........................10 8. Problems and solutions ....................11 9. Environment and disposal ....................12 CE-Declaration of conformity ....................13 round bale grab Jumbo RBK – EN... -
Page 4: Introduction

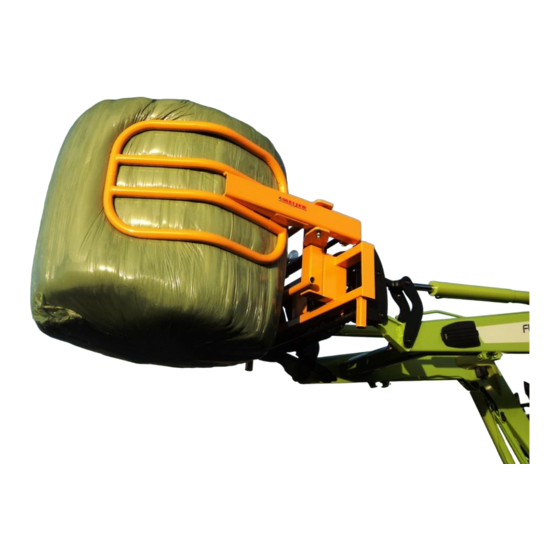

1. Introduction The round bale grab Jumbo RBK of Meijer Holland is designed to be attached to a telescopic handler, front loader, wheel loader or forklift (hereinafter referred to as ‘vehicle’) in order to grab and transport one wrapped round bale of max. 500 kg over a short distance. The hydraulic hoses of the bale grab are to be attached to the hydraulic system of the vehicle. -
Page 5: Technical Specifications
The non-observance of the rules and instructions stated in this manual is to be considered as serious negligence which leads to the extinguishment of any liability on the part of Meijer Holland concerning the resulting consequences. In this case, the risk lies exclusively with the user. -
Page 6: Safety Precautions
Build the stack of straw and hay bales in a stable way so that it cannot fall over. The driver must be aware of the rules that apply to the lifting and hoisting of heavy loads. round bale grab Jumbo RBK – EN... -
Page 7: The Functioning Of The Bale Grab
One movement is possible with the bale grab: The clamping of wrapped bales takes place with the help of the clamp arm that is powered by a hydraulic cylinder. round bale grab Jumbo RBK – EN... -
Page 8: Installation, Starting Up, Adjustment
Check if the bale grab is undamaged and in good condition on delivery. Please contact Meijer Holland if you notice any damages. Use the grab only if it is found to be in good order and after this manual has been read. -
Page 9: Operation And Use
6. Let the bale sink to the (loading) floor and put the hydraulic system in ‘return’. By doing so, the hooks open and release the bale. 7. Drive the vehicle away from the bale in reverse. 8. The bale grab is ready to grab and move another bale. round bale grab Jumbo RBK – EN... -
Page 10: Maintenance
Clean the collector of caked dirt and dust. When using a high pressure washer, avoid the electrical parts. Put grease on the grease nipples. At extensive use: after every 8 working hours add a bit of grease (0,86 grams per grease nipple). round bale grab Jumbo RBK – EN... -
Page 11: Problems And Solutions
Exchange the wrongly attached not attached correctly. hydraulic hoses. Malfunction in the hydraulic system of Consult the manual of the vehicle. the vehicle. The clamp arm is blocked. Look for the blockade and remove round bale grab Jumbo RBK – EN... -
Page 12: Environment And Disposal
Drain the hydraulic system and let the fluid be disposed by an authorised company. The rest of the bale grab is made of coated steel and can be disposed of as crap. round bale grab Jumbo RBK – EN... -
Page 13: Ce-Declaration Of Conformity
3. the machine is designed and constructed according to European standards, including: EN 349:1993+A1:2008 EN-ISO 4413:2010 EN-ISO 12100:2010 The electrics and the control section are the responsibility of the customer. Groningen, 11 August 2016 J.F. Lommerts, director round bale grab Jumbo RBK – EN...
