TEUCER LR-4RGB Quick Start Manual

CONTROLLER AND RECEIVER
LR-4RGB/4RGBW and R4C
4 zones RF controller and 4 zones receiver for RGBW LED strip
Product Description
The LR-4RGB/4RGBW remote enables one to control up to 4
zones of RGBW LED strips.
Featuring a touch colour wheel which offers smooth and
continuous colour changing options and enables creation of
colourful static and dynamic effects. Users can switch on or
off all individual RGBW colours.
Features
• Easy control of RGBW LED strips.
• Single zone, two, three and four zone control.
• 2.4GHz wireless technology, remote distance of up to
30m.
• Operates with an LED indicator light for ease of use.
• Each remote can control one or more receivers.
• Control each zone separately or simultaneously
• PWM dimming enables flicker-less dimming
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Power
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
LR-4RGB/4RGBW
RF Remote
3VDC
2.4GHz
58.5x107x9mm (WxLxH)
battery CR2032
R4C
RF receiver
12-36VDC
4x5A
4X(60-180)W
Constant voltage
45x175x27mm (WxLxH)

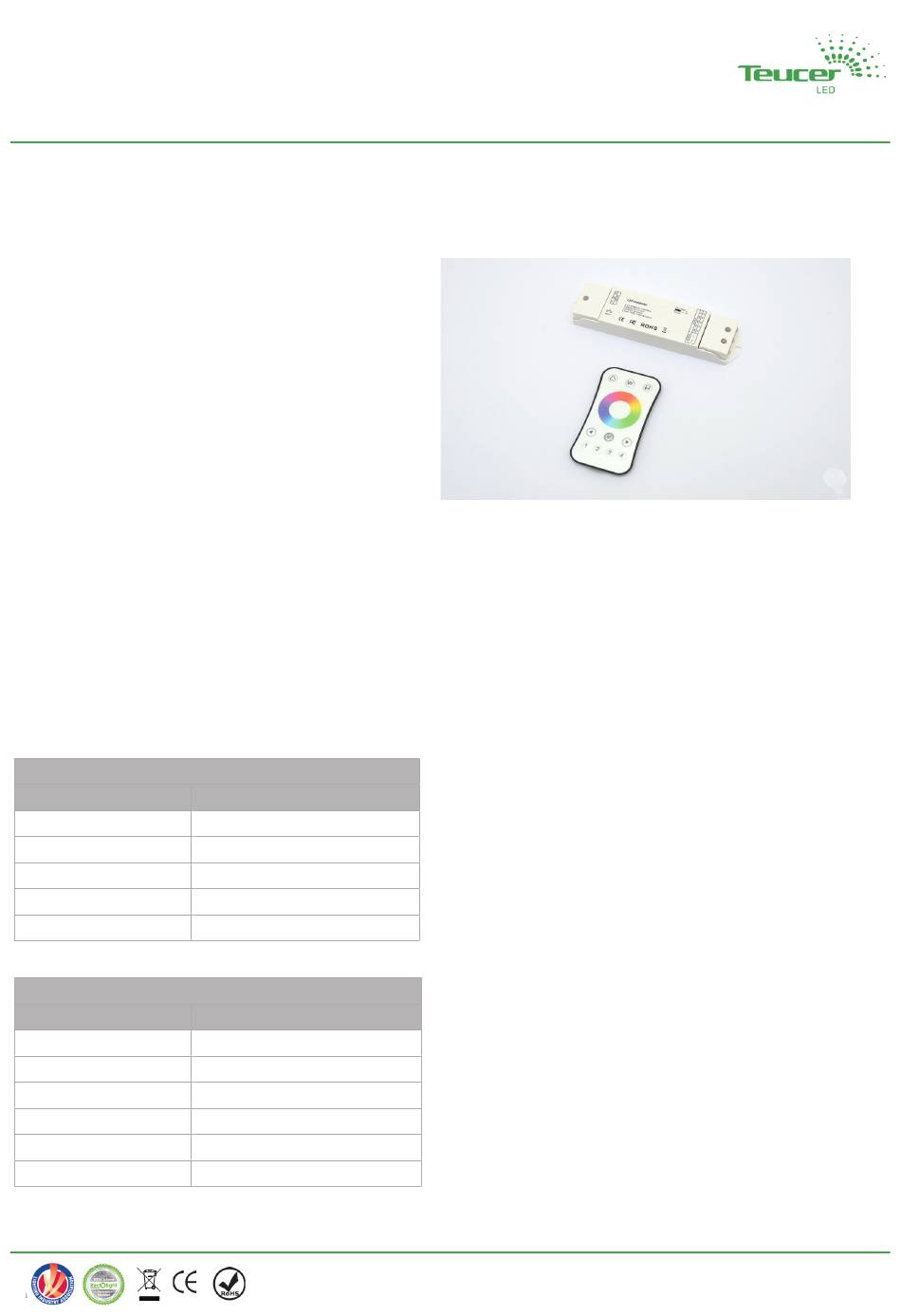

Product Image
Recommendation
RF technology allows for greater flexibility when it comes to
controlling simple or complex lighting installations without
the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in a
ceiling , reducing the RF signal strength and therefore the
communication range.
In order to overcome these RF Signal restrictions we sug-
gest the following when synchronising our RF controllers
and receivers:
• Keep the distance within 10 meters from the controller
to the receiver. The remote can operate up to 30mtrs if
signal is uninterrupted by obstacles.
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
• If your installation requires several RF receivers, ensure
the "master" receiver is positioned in the middle.
