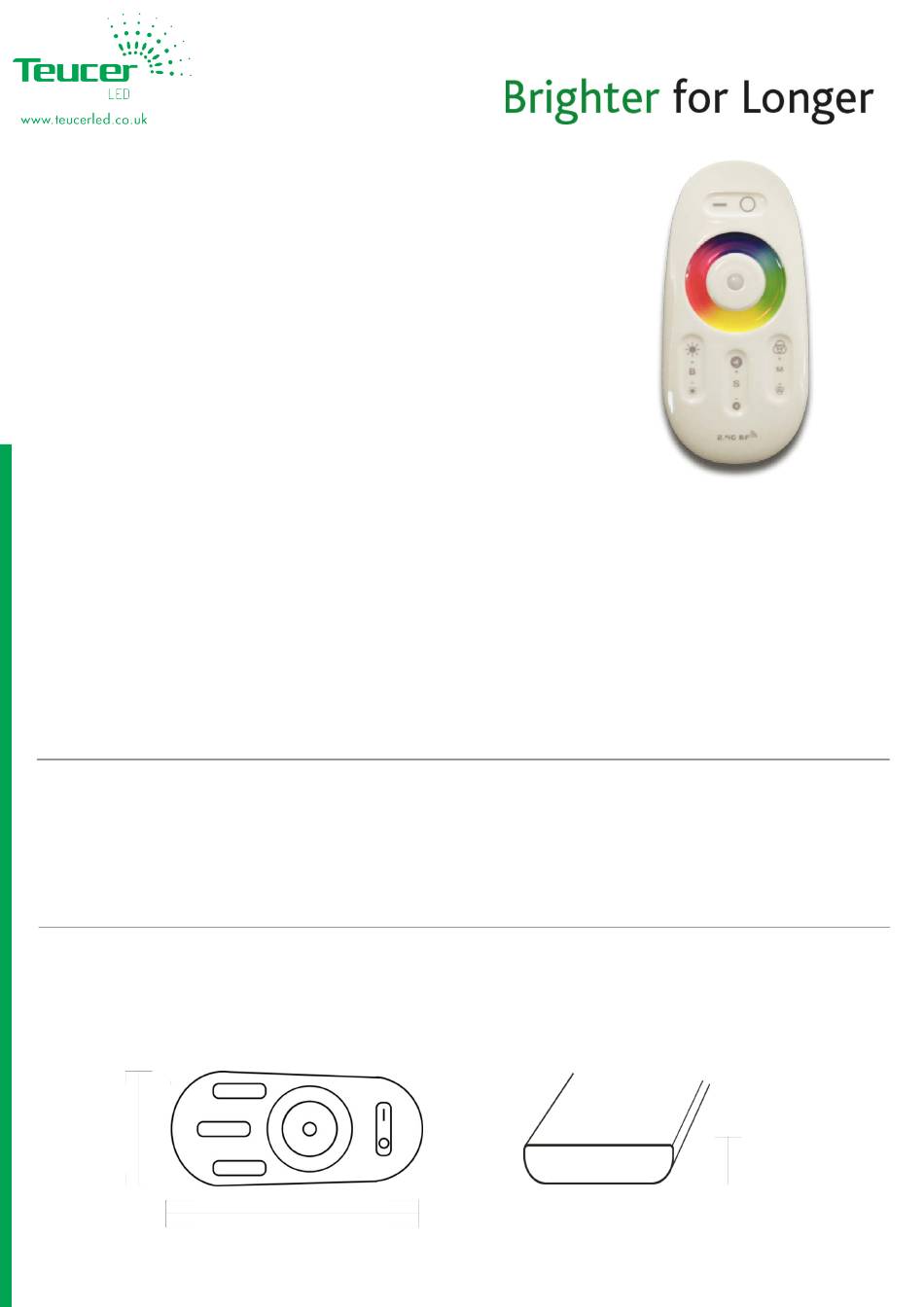

Single Zone Controller - LR-RGBW
The RGBW controller is used to control the LED strip through a vast pallet
of colours and dimming the LED strip from 5% - 100% brightness. There
are also 20 colour changing programs available with the ability to adjust
speed and brightness. The controller has a touch sensitive wheel and
comes with one receiver.
* 5%-100% Smooth Dimming
* Touch sensitive remote & colour Wheel
* 20 Automatic Play modes to choose from
* Several receivers can be synchronised to
one controller
PART NO.
Remote
LR-RGBW
PART NO.
Reciever
LRR-RGBW
52mm
Feature
Parameter
INPUT
VOLTAGE
3.6VDC
INPUT
VOLTAGE
12-36VDC
Produc t Size
110mm
page 1
* Control RGB & white from the same controller
* Dimming & colour changing
* Wireless RF range of 10 - 20 meters (Dependent
on signal obstacles within the installation area)
* Remote and receiver supplied together as
standard
OPERATION
DIMENSIONS
FREQUENCY
RF.2.46GHZ
52x110x20
CURRENT
12-24VDC
4x(72-144)W
REMARKS
(mm)
2xAAA
BATTERIES
OUTPUT
REMARKS
Receiver
20mm
RF
Advertisement
Table of Contents
Related Manuals for TEUCER LR-RGBW
Summary of Contents for TEUCER LR-RGBW
- Page 1 Single Zone Controller - LR-RGBW The RGBW controller is used to control the LED strip through a vast pallet of colours and dimming the LED strip from 5% - 100% brightness. There are also 20 colour changing programs available with the ability to adjust speed and brightness.
- Page 2 Controller Layout COLOUR WHEEL INDICATING LIGHT BRIGHTNESS MODE SPEED RF technology allows for great flexibility when it comes to controlling simple or complex lighting installations without the need of wiring. There are limitations in some cases due to receivers installed in enclosed electrical boxes or in ceiling voids hence reducing the RF signal strength and the communication range.
- Page 3 Synchronising The Remote To Receiver Please Note: All controllers & receivers sold in a pack are pre-synchronised. There is no need to sync the remote to the receiver. *Only follow the instructions below if you are adding another receiver with the same remote 1) Turn the Remote ON a) Press the ON button b) Ensure the Red...
- Page 4 Controlling Your LED Strip 1) Ensure the Remote is ON and touch the colour wheel to select your desired colour Press the ON button Then touch the Colour Wheel 2) Adjusting the Brightness Adjust the brightness of the LED Strip by pressing the increase brightness button Decrease the brightness by pressing the decrease brightness button 3) Selecting Play Modes Select a play mode by pressing the play mode Buttons...
- Page 5 * Never install product whilst connected to power and double check connections before switching on to avoid short circuits. * For any further help or advice please contact Teucer on 0207 350 4429 or find us online at www.teucerled.co.uk Warran ty Agreemen t * 3 Year Warranty: This warranty is for free repair and replacement of the product and covers manufacturing faults only.
