4 Zone DMX and RF wall panel
for Single Colour, Tunable White, RGB, RGBW
and RGBCCT LED strip
WP-4RGBCCT

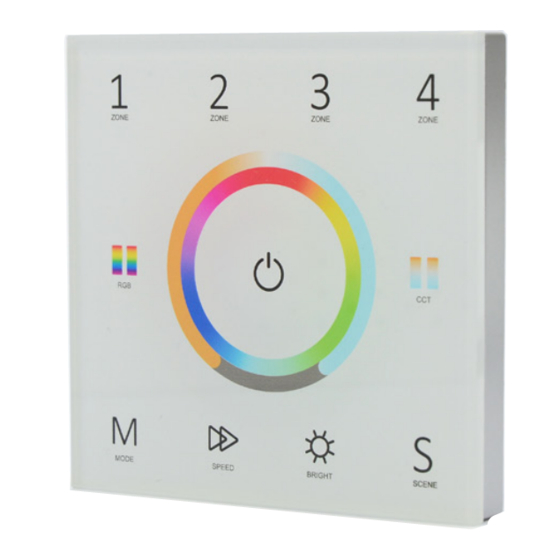

Product Description

The WP-4RGBCCT wall panel enables control of up to 4 zones of Single Colour, Tunable White, RGB,
RGBW and RGBCCT LED strip, featuring simple to use back-lit touch controls for easy brightness
adjustment.

Wall panel Technical Specification

Controller
Type
Input Voltage
Dimension (WxLxH)
DMX Otuput Signal
Operation Frequency
IP rating

Compatible RGB receivers and DMX decoders

Technical Specification
Order code
R3C
Channels
3 (RGB)
Type
RF receiver
Input Voltage 12-24V DC
Current
3x4A
Output
3X(48-96W)
Constant
Note
voltage
33x97x18mm
Dimension
(WxLxH)
R3C
WP-4RGBCCT
RF and DMX wall panel
85-265V AC
86 x 86 x 35mm
DMX512
2.4GHz
IP20
R4C
4 (RGBW)
RF receiver
12-36V DC
4x5A
4X(60-180W)
Constant
voltage
45x175x27mm
(WxLxH)
R4C

Features

•
Easy control of Single Colour, Tunable White,
RGB, RGBW and RGBCCT LED strips for up to
4 zones independently or simultaneously
•
Touch sensitive glass and smooth dimming
•
Backlit buttons for night time use
•
Designed to fit into your existing switch back
box
•
Built-in dynamic play modes with receiver
auto-synchronization
•
Receiver
Auto-Transmitting
achieve greater distances between receivers
and the remote
•
Each zone can have different LED strip type
R5C
DIM-DMX1CH(N)
5 (RGBCCT)
4 (RGBW)
RF receiver
DMX decoder
12-24V DC
12-24V DC
5x3A
4x5A
5X(36-72W)
4x(60-120)W
Constant
Constant voltage
voltage
38x114x20mm
50x170x23mm
(WxLxH)
(WxLxH)
R5C
DIM-DMX1CH(N)
V002-11-2019
function
to
DIM-DMX5CH
5 (RGBCCT)
DMX decoder
12-24V DC
5x6A
5x(72-140)W
Constant
voltage
170x86x39.5mm
(WxLxH)
DIM-DMX5CH
www.teucerled.co.uk
