OH 6035
CRIC ROULEUR 3T PEDALE D'APPROCHE 95mm
SERVICE GARAGE JACK 3T 95mm
clas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OH 6035 and is the answer not in the manual?

Questions and answers

Summary of Contents for CLAS OH 6035

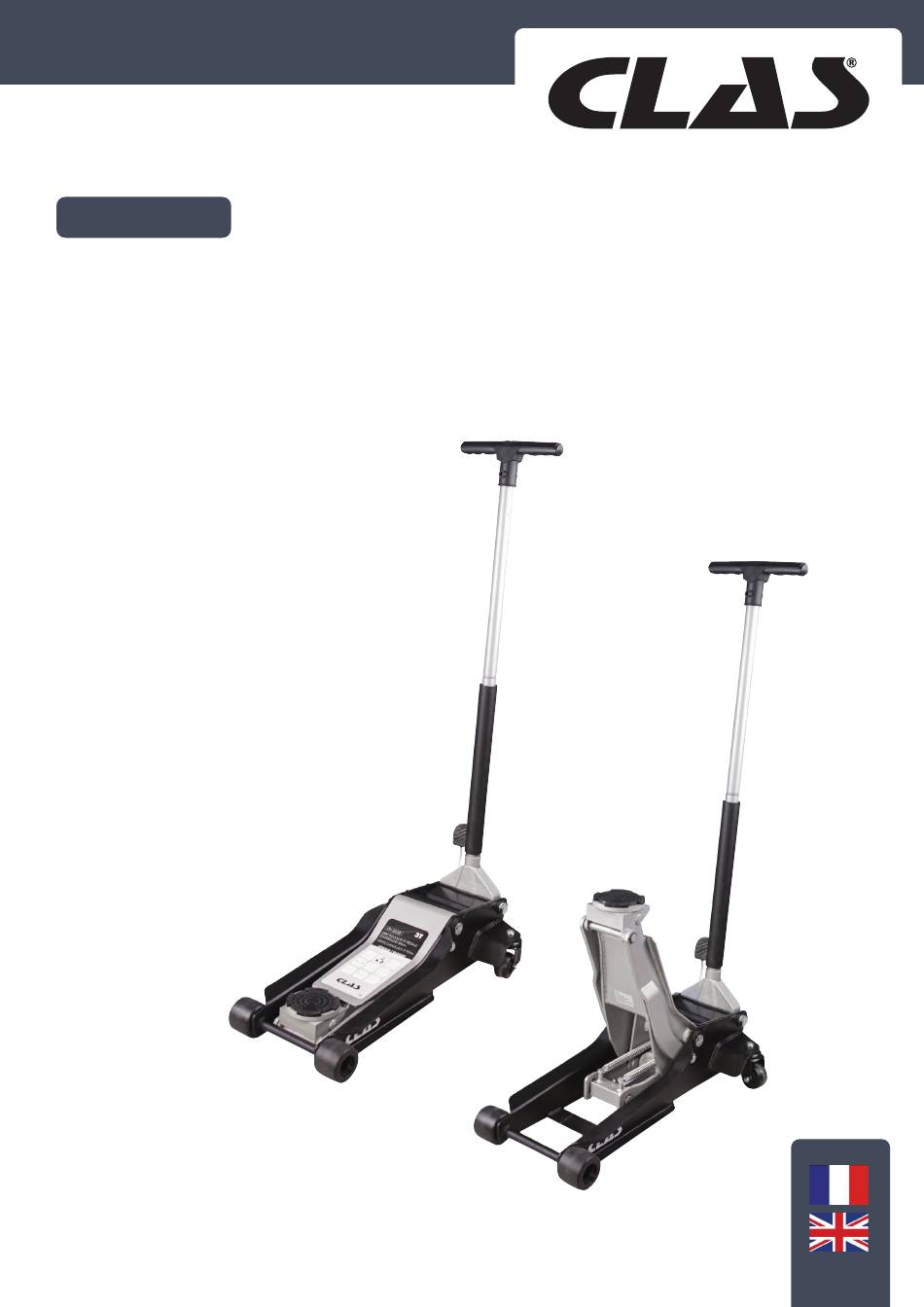

  • Page 1 OH 6035 CRIC ROULEUR 3T PEDALE D’APPROCHE 95mm SERVICE GARAGE JACK 3T 95mm clas.com...
  • Page 2 Contact : You can reach us by mail sav@clas.com or by phone +33(0)4 79 72 69 18 or go directly to our website clas.com If you have changed your mind regarding your purchase, please return this product before you...
  • Page 3: Consignes De Securite

    OH 6035 CRIC ROULEUR 3T PEDALE D’APPROCHE 95mm CONSIGNES DE SECURITE Bien lire et comprendre les instruction et les consignes de ce manuel avant l’utilisation. Ne pas dépasser la capacité nominale du cric. Vérifi er que la force de levage du cric soit compatible avec le poids du véhicule.
  • Page 4: Montage

    OH 6035 CRIC ROULEUR 3T PEDALE D’APPROCHE 95mm CARACTERISTIQUES Capacité : 3 tonnes Hauteur mini. : 95mm Hauteur maxi : 515mm Poids : 39.5kg Dimensions : L. 772 x l.367 x H. 1225mm Normes : Directive machine 2006/42/EC, EN 1494:2000+A1:2008 Durée de vie du cric : 8 ans...
  • Page 5: Entretien

    OH 6035 CRIC ROULEUR 3T PEDALE D’APPROCHE 95mm Abaissement 1. Soulevez le véhicule et retirez les chandelles à crémaillère. 2. Tirez le manche vers le haut, puis faites le tourner dans le sens inverse des aiguilles d’une montre. Le manche étant équipé d’un retour automatique (principe de l’homme mort), veuillez le tenir jusqu’à...
  • Page 6 OH 6035 SERVICE GARAGE JACK 3T 95mm SAFETY INSTRUCTIONS INTRODUCTION Read and understand the instructions and instructions in this manual before use. Do not exceed the rated capacity of the jack. Check that the jack’s lifting force is compatible with the weight of the vehicle.
  • Page 7: Using Instructions

    OH 6035 SERVICE GARAGE JACK 3T 95mm CHARACTERISTICS Capacity: 3T Min Height.: 95mm Max. Height: 515mm Weight: 39.5kg Dimensions: L. 772 x W.367 x H. 1225mm Standard: Directive machinery 2006/42/EC, EN 1494:2000+A1:2008 Product lifetime : 8 years ASSEMBLY 1. Assemble the 2-piece with bolt and fixed T shape handlewith screw supplied.
  • Page 8: Maintenance

    OH 6035 SERVICE GARAGE JACK 3T 95mm Lowering 1. Raise the vehicle and clear the jack stands. 2. Pull up the handle then turn the handle counter-clockwise.the handle is self- return(Dead-man principle), you need to hold the handle until the jack back to the initial position.
  • Page 9 Philippe Barrault, 17.06.2020 CLAS EQUIPEMENTS - SAS au capital de 130 000€, R.C.S Chambéry : 409 786 944, N° TVA Intracommunautaire FR 13 409 786 944 Siège social, Z.A de la Crouza – 73800 CHIGNIN - FRANCE +33 (0)4 79 72 62 22 -  +33 (0)4 79 72 52 86 ...
  • Page 12 73800 CHIGNIN FRANCE Tél. +33 (0)4 79 72 62 22 Fax. +33 (0)4 79 72 52 86 OH 6035 CRIC ROULEUR 3T PEDALE D’APPROCHE 95mm SERVICE GARAGE JACK 3T 95mm Si vous avez besoin de composants ou de pièces, contactez le revendeur En cas de problème veuillez contacter le technicien de votre distributeur agréé...
