Forest garden Overlap Apex Shed 4x3 Quick Start Manual

Overlap Apex Shed
4' x 3''
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This buildings is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not need additional
treatment.
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
- Please keep all plastic bags and small parts away from
children.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
0333 7777 089
Technical Helpline: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in any way (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Not to Scale
Fixing Pack (OPA43FP)
This fixing pack is used for several products.
There may be additional fixings.
10mm Felt tacks
Qty 60
Flush Hinge
Hasp &
Qty 2
Staple
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SPIRIT LEVEL
POZI DRIVE SCREWDRIVER
TAPE MEASURE HAMMER
Important :
Assembly of this
shed requires a
Must Pre drill for
minimum of two
each screw used.
adults.

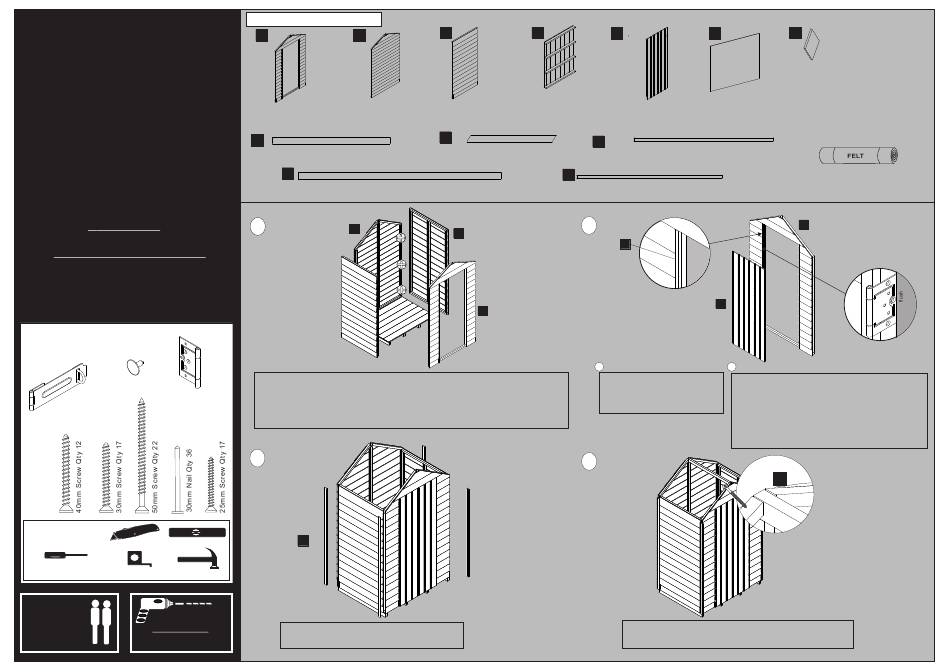

OPA43 PARTS LIST
A B
OPA4PE
OPA4DE
PLAIN END
DOOR END
H H
45280866PT
866mm BATTEN QTY 1
K
28280898PT
898mm BATTEN QTY 2
1 1
A B
Place the panels on top of the floor. Make sure that all of the panels are tight and flush before
fixing them to each other using 3x50mm screws.
Make sure that the panels are sitting flush before fixing to the floor using 2 x 50mm screws for
each panel. Make sure that all of the screws are positioned so that they screw in to the bearers
underneath.
3
J
Place the corner strips so that they cover the joins
between the panels. Fix each in place using 3 x 30mm
screws
C D
E
OPA3PS BRDFL43
PLAIN SIDE FLOOR
QTY 2
I
J
51120810PAII58PT
810mm BARGE BOARD QTY 4
L
20 x1695mm STRIP QTY 1
2
C A
A
a
Fix the 20 x 1695mm strip to the side
of the door frame so that it is tight
with the cladding and flush with the
frame. Use 3 x 30mm screws.
4
F G
SDRPT 8987658
DOOR ROOF SHEET
QTY 2
44121570PT
1570mm C/STRIP QTY 4
20121695PPT
A
L
E
b
Place the hinge against the inside of the door frame and
position the large section of the hinge so that it is with the
inside of the framing as shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door
framing. Again make sure that the hinge is flush and that the
holes are positioned so that the 25mm screws locate
correctly into the batten.
H
Place the 866mm batten so that it connects the door end and plain end.
Fix this in position using a 50mm screw for each end as shown.
FIN20010512PT
FINIAL
QTY 1
85062 Qty 1
Issue 0115
