Forest garden Tongue and Groove Quick Start Manual

Tongue and Groove
4' x 3' Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
Check all parts prior to assembly
This buildings is presure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not require additional
treatment.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Please keep all plastic bags and small parts away from
children
- The roof of this building is not a load bearing structure.
- This product must be built on a solid level base.
0333 7777 089
Technical Help line: 8.30 am and 5.00
pm Monday to Friday.
In line with your statutory rights, please check all parts prior
to assembly, as assembly of damaged parts may be deemed
to be acceptance and this may affect the remedies you are
entitled to. If the product is not constructed in accordance
with the instructions, or is altered in anyway (e.g. painted),
the manufacturer cannot be held liable for any resulting
damage.
Fixing Pack (MSLSH43FP)
Not to Scale
Pad bolt
Tee Hinge Qty 2

REQUIRED TOOLS :

(NOT SUPPLIED)
SHARP KNIFE
SPIRIT LEVEL
FOR ROOFING FELT
HAMMER
POZI DRIVE SCREWDRIVER TAPE MEASURE
HAMMER
Important : Assembly of
this shed requires a
Must Pre drill for
minimum of two adults.
each screw used.

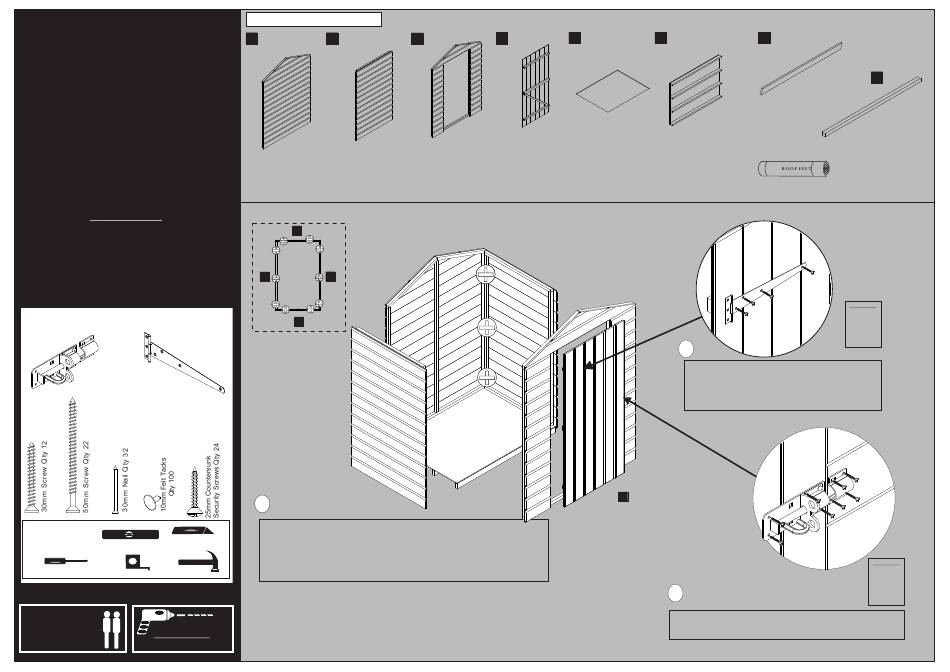

MSLSH43 PARTS LIST
A B C
MSLH43PE MSLSH43PS
PLAIN END PLAIN SIDE QTY 2
Top View
B
C
A
B
1 1
Place the panels on top of the floor. Make sure that all the panels are tight and flush
before fixing them to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are square and fix to the
floor using 3x50mm screws for each side panel. Use 2x50mm screws for the plain and
door end panels, ensuring that the screws are located into the bearers underneath.
D E
MSLSH43DE MTSLSH43DR 9107008
DOOR END DOOR ROOF SHEET
QTY 2
F G
40120720PAII70PT
BARGE BOARD
QTY 4
MSLSH43FL
FLOOR
FELT21BL
FELT QTY 1 ROLL
2
Place and secure two hinges to the door so that they line up with
the battens on the reverse, using 25mm Security Screws for each.
Place the door into the door end ensuring that the door is square.
Fix the doors in place using 3x25mm Security Screws for the other
section of each hinge.
D
3
Fix the pad bolt to the doors so that it is in line with the batten on the back. Make
sure that both parts are positioned so that the bolt will locate correctly and keep
the doors locked. Fix the pad bolt in place using 8x25mm Security Screws.
H
28280910PT
910mm BATTEN
QTY 2
Attention:
Take care
when placing
the screws.
These can
not be
backed out.
Attention:
Take care
when placing
the screws.
These can
not be
backed out.
Issue 0215
