Summary of Contents for Barco R9850105

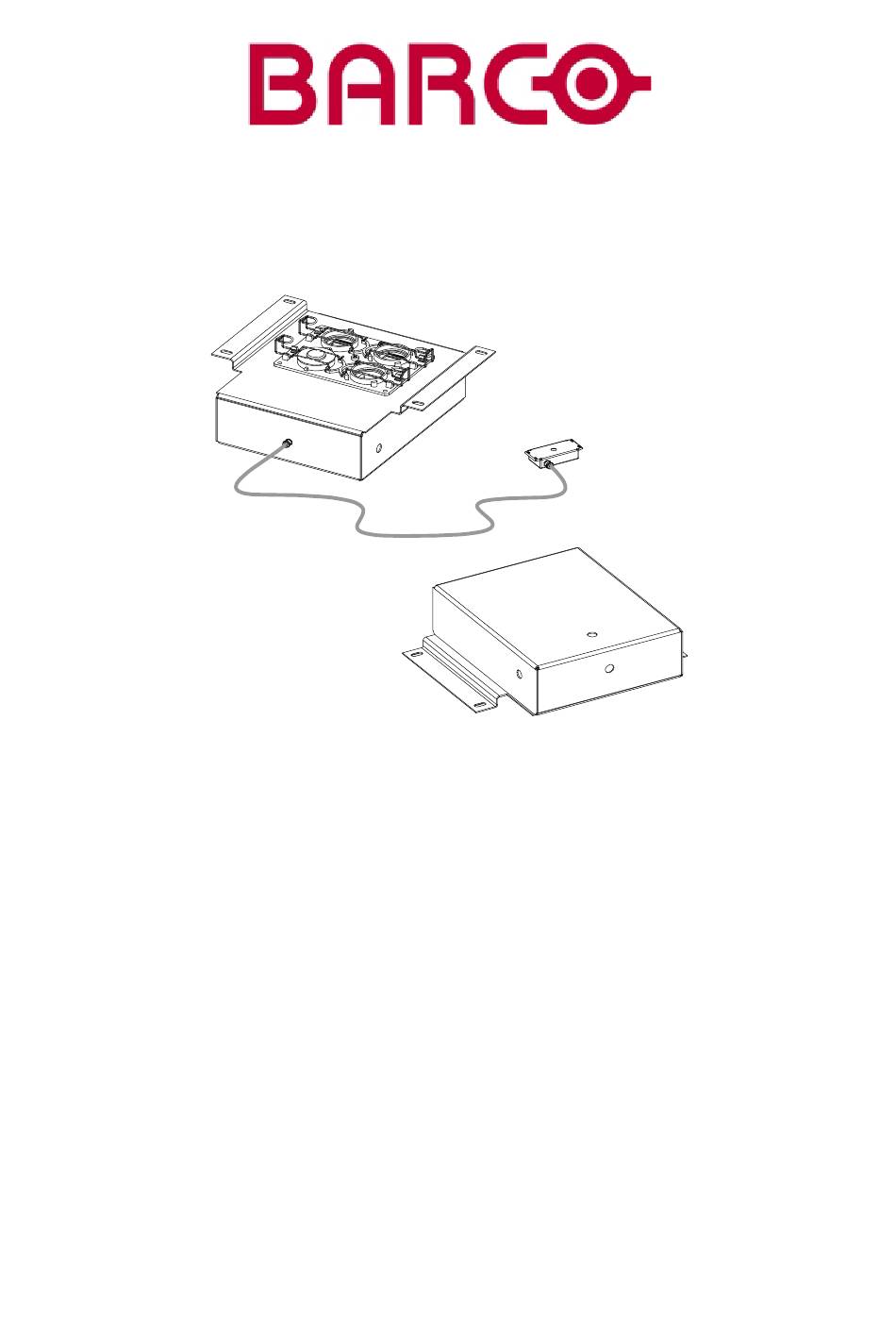

- Page 1 EDIA R9850105 R9650105 NSTALLATION ANUAL Ambient Environment Controller 04112002 R5976153/03...
- Page 2 Barco nv Media Noordlaan 5, 8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: media@barco.com Visit us at the web: www.barco.com Printed in Belgium...
- Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
- Page 5 Revision Sheet Barco nv Media/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70, Fax: +32 56.36.88.24 E-mail: antoon.dejaegher@barco.com, Web: www.barco.com From: Date: Please correct the following points in this documentation (R5976153/03): page wrong correct R5976153 AEC 04112002...
-
Page 7: Table Of Contents
Table of contents TABLE OF CONTENTS 1. Safety ........................3 1.1 Safety Guidelines . - Page 8 Table of contents R5976153 AEC 04112002...
-
Page 9: Safety
Structural & Mounting Components should be kept dry, clean, lubricated (only if recommended), coated properly, and otherwise maintained in a manner consistent with part design. BARCO products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the load handling capability of the part. -
Page 10: Important Safety Instructions
1. Safety 1.2 Important Safety Instructions Instructions: • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • IMPORTANT, all plug holder clamps of the AEC must be locked firmly to prevent the possible ingress of fluids or solid particles. Replace damaged clamps or seals immediately. -
Page 11: Important Warnings
1. Safety 1.3 Important Warnings Important Warnings: • Risk of electric shock: Image 1-5 Risk of electrical shock Risk of electric shock. Do not open. To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. - Page 12 1. Safety R5976153 AEC 04112002...
-
Page 13: Aec
The mechanical flexibility enables easy installation and quick servicing. The AEC Satellite, which contains one sensor in a separated small housing, allows even more flexibility. AEC modules are only to be used in conjunction with BARCO DLite or ILite Modules. -
Page 14: System Overview
2. AEC Image 2-3 Image 2-4 DLite power cable DLite data cable 2.2 System Overview AEC location in system The data stream of the tiles is somewhere interrupted to insert the AEC in series with the tiles. Where this interruption happens does not matter. -
Page 15: Dimensions
2. AEC Type Value Power consumption 11 Watt Operating voltage 200 Volt ~ 240 Volt AC Operating temperature -20ºC <> +50ºC 2.4 Dimensions AEC dimensions Image 2-6 R5976153 AEC 04112002... - Page 16 2. AEC Satellite dimensions Image 2-7 R5976153 AEC 04112002...
-
Page 17: Physical Installation
3. Physical Installation 3. PHYSICAL INSTALLATION 3.1 Standard AEC What has to be done ? Mount the standard AEC on top or at the side of the display structure. Image 3-1 AEC sensors Sensor 1 (Front side) Sensor 2 (Left side) Sensor 3 (Top side) Sensor 4 (Right side) Make sure that the installation or other parts not cover the sensors of the AEC. -
Page 18: Aec Satellite
3. Physical Installation 3.2 AEC satellite What has to be done ? Mounting the AEC on the back of the display structure and integrate the satellite somewhere at the top or at the side of the display. Image 3-3 AEC satellite sensors Sensor 1 (Satellite) 3 meter cable. -
Page 19: Connections
3. Physical Installation Image 3-5 Rear mounting of the AEC Hammer bolts 3.3 Connections What has to be done ? Connecting the power and data cables with the AEC. • The power for the AEC is branched of from the ’POWER OUT’ socket of the last tile in a power circuit of maximum six tiles. •... -
Page 20: Dummy Data Plug (R9850270)
3. Physical Installation The AEC does not have a power output connector. Procedure 1. Place a power linking cable between the ’POWER IN’ socket of the AEC and the ’POWER OUT’ socket of the last tile in a power circuit of maximum six tiles. 2. -
Page 21: Addressing, Calibrating And Sensing
3. Physical Installation Example of power and data cabling Image 3-9 Data and power cabling of a H7 x V5 DLite display with AEC. 3.4 Addressing, Calibrating and Sensing XLite Toolset Addressing, calibrating and sensing are done with the XLite Toolset Software (R9850042). Instructions for addressing, calibrating and sensing are explained in the user guide of the XLite Toolset software (R5976380). - Page 22 3. Physical Installation R5976153 AEC 04112002...
-
Page 23: Maintenance
4. Maintenance 4. MAINTENANCE 4.1 Cleaning the AEC sensors The AEC sensors should be cleaned on regular basis for good functionality of the AEC. How to clean the AEC sensors ? 1. Remove all dirt from the AEC sensors with a damp cloth. R5976153 AEC 04112002... - Page 24 4. Maintenance R5976153 AEC 04112002...
-
Page 25: Index
Index INDEX AEC standard Connections Addressing 7–9 Dimensions Introduction Technical Summary Maintenance AEC System Overview Cleaning Calibrating Safety 3–5 Guidelines Important Instructions Warnings Sensing Installation 11–13 AEC satellite R5976153 AEC 04112002... - Page 26 Index R5976153 AEC 04112002...
-
Page 27: List Of Images
List of images LIST OF IMAGES Warning ....................... . 3 Suspended Loads .
