01945 410950
support@arborgardensolutions.co.uk
http://www.arborgardensolutions.co.uk
Trading address: Unit 11, Cattle Dyke, Wisbech, England, PE1 34NR

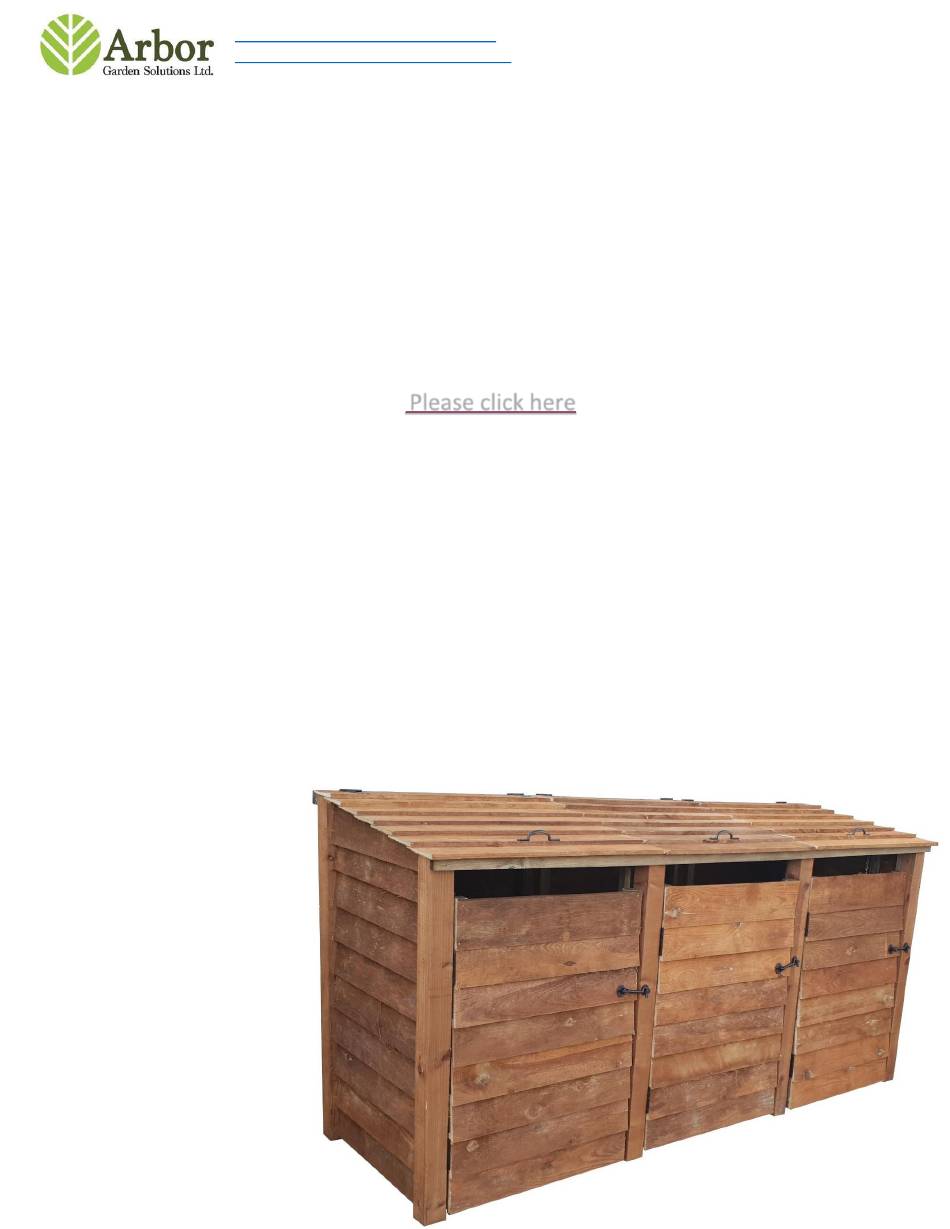

Triple Wheelie Bin Storage Assembly Instructions
Before you commence the assembly process, we recommend that you read these instructions
thoroughly beforehand to familiarize yourself with the assembly process and to also check that
you have the correct components. If for any reason you need assistance, you can find our
contact details on the top of page of these instructions.
We highly recommend that any assembly is carried out on a flat, level surface if possible and
that you use another person to assist you if necessary for your convenience all guide holes are
pre-drilled.
Package contents:
• 3x Back panel
• 3x Doors
• 2x Side panels
• 3x Roof
• 3x Metal bards
• 1x Back bar
• 1x Front bar
• 2x Spacer blocks
• 1x Spacer bar
• 2x Middle Section divider
• 60mm screws
• 85mm Screws
• 32mm Black screws
•
You can check our
YouTube channel
Please click here
for assembly video.
Tools required:
Electric screwdriver with No2 Pozidrive
bit or No2 Pozidrive screwdriver
Advertisement
Related Manuals for Arbor Technology Triple Wheelie Bin Storage
Summary of Contents for Arbor Technology Triple Wheelie Bin Storage
- Page 1 Trading address: Unit 11, Cattle Dyke, Wisbech, England, PE1 34NR Triple Wheelie Bin Storage Assembly Instructions Before you commence the assembly process, we recommend that you read these instructions thoroughly beforehand to familiarize yourself with the assembly process and to also check that you have the correct components.
- Page 2 01945 410950 support@arborgardensolutions.co.uk http://www.arborgardensolutions.co.uk Trading address: Unit 11, Cattle Dyke, Wisbech, England, PE1 34NR Step 1 Step 2 Arrange the 2 spacer blocks on the ground, Stand the left-hand end panel upright on a flat, adjacent to the end panel, as shown in the photo level surface.
- Page 3 01945 410950 support@arborgardensolutions.co.uk http://www.arborgardensolutions.co.uk Trading address: Unit 11, Cattle Dyke, Wisbech, England, PE1 34NR Step 5 Step 6 Carefully lay the assembly on its back and position Now take the front bar and secure it with the the metal bar as shown across the bottom of the 60mm screws as shown in the picture.
- Page 4 01945 410950 support@arborgardensolutions.co.uk http://www.arborgardensolutions.co.uk Trading address: Unit 11, Cattle Dyke, Wisbech, England, PE1 34NR Step 9 Step 10 Secure the roofs to the rear batten with the Arrange the two spacer blocks on the ground, provided black screws. adjacent to the end front, as shown in the photo. Step 11 Step 12 Fit the hook to the opposite side of the doors from the...
- Page 5 01945 410950 support@arborgardensolutions.co.uk http://www.arborgardensolutions.co.uk Trading address: Unit 11, Cattle Dyke, Wisbech, England, PE1 34NR Step 13 Step 14 To fit the latch keeper plate, shut the door and hold the If you bought version with shelf – place shelf at your latch in the horizontal position.
