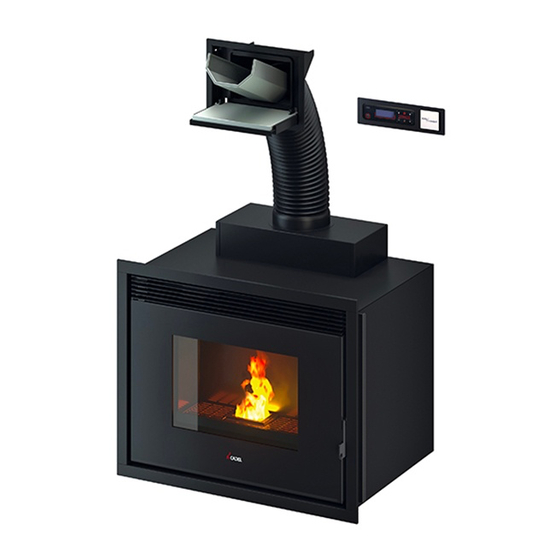

Cadel SATURNO 16 User Manual
Hide thumbs Also See for SATURNO 16:
Table of Contents

Advertisement

Quick Links

USER MANUAL
PELLET THERMOSTOVE
EN
©2020 CADEL srl | All rights reserved - Tutti i diritti riservati
SATURNO 16 - 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATURNO 16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cadel SATURNO 16

  • Page 1 USER MANUAL PELLET THERMOSTOVE ©2020 CADEL srl | All rights reserved - Tutti i diritti riservati SATURNO 16 - 24...
  • Page 2 IT - SCHEDA PRODOTTO EN - PRODUCT DATA SHEETS FR - FICHE DE PRODUIT NL - PRODUCTKAART DE - PRODUKTDATENBLATT ES - FICHA DEL PRODUTO PT - FICHA DO PRODUTO PL - KARTA PRODUKTU CZ - INFORMAČNÍ LIST VÝROBKU SK - INFORMAČNÝ LIST VÝROBKU RO - FIȘA PRODUSULUI HU - TERMÉKISMERTETŐ...
  • Page 3 - SCHEDA PRODOTTO - KARTA PRODUKTU - ΔΕΛΤΙΟ ΠΡΟΪΟΝΤΟΣ - PRODUCT DATA SHEETS - INFORMAČNÍ LIST VÝROBKU - ПРОДУКТОВ ФИШ - FICHE DE PRODUIT - INFORMAČNÝ LIST VÝROBKU - GAMINIO VARDINIŲ - PRODUCTKAART - FIȘA PRODUSULUI PARAMETRŲ LENTELĖ - PRODUKTDATENBLATT - TERMÉKISMERTETŐ...
  • Page 4 Potenza termica indiretta Putere termică indirectă Indirect heat output Közvetett hőteljesítmény Puissance thermique indirecte Posredna toplotna moč Onrechtstreeks thermisch vermogen Neizravna toplinska snaga Indirekte Heizleistung Έμμεση θερμική ισχύς Potencia térmica indirecta Индиректна топлинна мощност Potência térmica indireta Netiesioginė šiluminė galia Pośrednia moc cieplna Kaudne soojusvõimsus Nepřímý...
  • Page 5 Overhold advarslerne og instruktionerne for installation og periodisk vedligeholdelse, der er angivet i instruktionsvejledningen. Respektera de bestämmelser och anvisningar för installation och löpande underhåll som anges i de specifika kapitlen i handboken. CADEL srl Via Foresto Sud, 7 31025 Santa Lucia di Piave (TV) - ITALY www.cadelsrl.com...
  • Page 6: Table Of Contents

    12.4 USER TRAINING .............21 14 SAFETY DEVICES AND ALARMS ....22 14.1 SAFETY DEVICES ...........22 14.2 PRESSURE SWITCH ..........22 14.3 SMOKE TEMPERATURE PROBE ......22 14.4 CONTACT THERMOSTAT IN THE FUEL HOPPER..22 14.5 ELECTRICAL SAFETY ..........22 14.6 SMOKE FAN ............22 SATURNO 16 - 24...
  • Page 7: Manual Simbology

    • All the pictures carried in this manual are only for indicative and explanatory purpose and could therefore slightly differ from your appliance. • The referring appliance is those you purchased. • In case of doubts or difficulties in the comprehension or for problems not described in this manual, please promptly contact your distributor or installer. SATURNO 16 - 24...
  • Page 8: Safety Requirements

    • Packaging are not toys and could cause suffocation or strangulation and other health ha- zards! People (childreen included) with reduced mobility, psycological deseases or without SATURNO 16 - 24...
  • Page 9: Warranty Conditions

    • Incorrect dimensioning with regards to the use or faults in the installation or failure to adopt the necessary devices to guaran- tee proper execution. • Improper overheating of the equipment, use of fuels not conforming to the types and quantities indicated in the instructions provided. SATURNO 16 - 24...
  • Page 10: Product Performance Checks

    For each repair or adjustment which should be necessary, please contact the dealer where you purchased your stove or your nea- rest Technical Assistance Service, specifying: • Appliance model • Serial number • Type of problem SATURNO 16 - 24...
  • Page 11: Warnings For The Correct Disposal Of The Product

    For more information about how to collect electric and electronic equipment and appliances, batteries and accumulators, please contact your local Council or Public Authority competent to issue the relevant permits. SATURNO 16 - 24...
  • Page 12: Wi-Fi - Bluetooth Connection

    The manufacturer will not be held responsible for injury to persons or damage to property or in the event of failed operation. The Wi-Fi module uses the domestic Wi-Fi network; ensure there is enough coverage in the place of installation. SATURNO 16 - 24...
  • Page 13: Use

    Oily plant waste and lacquers can cause smells and smoke during the first working hours: it is advisable to ventilate the room because they could be noxious to people and animals. Set values from 1 to 5 are defined by the manufacturer and they can be changed only by an authorized tech- nician. SATURNO 16 - 24...
  • Page 14: Control Panel Display

    • Modify with the + - keys. • Finally press “menu” to confirm and “esc” to exit. Timer setting (see relative chapter) Sleep setting (see relative chapter) SETTINGS MENU The SETTINGS menu allows to act on the boiler operating mode: A. Language. SATURNO 16 - 24...
  • Page 15 • Press the “menu” button. • Scroll to “Settings” using the arrows • Press “menu” to confirm. • Scroll to “tones” using the arrows. • Press “menu” to confirm. • Select “On” with the + - keys. SATURNO 16 - 24...
  • Page 16 By default, this function is disabled; if necessary, activate it through the settings menu. j - Pellet Recipe This function is for adapting the stove to the pellets that are being used. In fact, as there are several types of pellets on the market, SATURNO 16 - 24...
  • Page 17 • 3 way: the 3 way valve is activated for a fixed time of 1 minute during which the panel displays the countdown seconds. To activate the “Components test” function (only when the boiler is switched off) act as follows: • Press the “menu” button. SATURNO 16 - 24...
  • Page 18 • Scroll to “Technical menu” using the arrows. • Press “menu” to confirm. • Select “Product Type”, “Service”, “Parameters”, “DHW Parameters”, “Meters memories”, “Enable fan” and “Puffer data” with the + - keys. • Press “menu” to confirm and “esc” to exit SATURNO 16 - 24...
  • Page 19: Auto Eco Mode (See Section F-G)

    Continue to program the following days or press “ESC” to exit. Repeat the procedure to program the other timers. SATURNO 16 - 24...
  • Page 20: Notes For Timer Operation

    If the SLEEP function is active with the TIMER active the first has priority over the latter, therefore the boiler will not switch off at the time set on the timer but instead by the time established by the sleep function, even if later than the time set on the timer. SATURNO 16 - 24...
  • Page 21: First Ignition Warnings

    Make sure pellets and ash have not accumulated in the brazier due to failed ignition. If the brazier is not clea- ned before reattempting, there is the risk of further failed ignitions and even explosions in some cases. SATURNO 16 - 24...
  • Page 22: Power Output

    • The room fan (if provided) maintains the set speed until the smoke T reaches 100°C, then it automatically sets itself at the minimum speed until it reaches the shutdown temperature • The smoke fan sets itself at maximum speed and maintains it for a fixed time of 10 minutes, at the end of which if the smoke SATURNO 16 - 24...
  • Page 23: Power Failure

    • If the product repeatedly fails to ignite, we recommend that you stop using it immediately and contact a qualified technician to check product operation. Following these instructions is more than enough to ensure normal operation and prevent any issues with the product. SATURNO 16 - 24...
  • Page 24: Fuel

    Fig. 13 - Right opening of the pellets bag It is necessary to avoid to fill the hopper with the pellet when the stove is running. • Do not get the bag of pellet in contact with hot stove surfaces. SATURNO 16 - 24...
  • Page 25: Loading The Pellets

    • It is a good idea to schedule the first annual service check • Discuss using a potential secondary heating system • Explain how the remote control or thermostat works and where to best position them SATURNO 16 - 24...
  • Page 26: Safety Devices And Alarms

    • In the event of a power cut that lasts over 10” with the boiler on or in the start-up stage, when the boiler is powered again it goes back to the previous operating condition with the following procedure: 18) It performs a cooling phase to the maximum. 19) Performs a new ignition. SATURNO 16 - 24...
  • Page 27: Shutdown

    The control panel gives information on the reason of the alarm in progress. A sound signal is not envisioned for alarms A01-A02 only so to PANEL ALERTnot disturb the user in the event of pellets running out in the hopper during the night. SATURNO 16 - 24...
  • Page 28: Alarm Reset

    To reset the alarm, you must hold down key 1 (ESC) for a few seconds. The stove performs a check to determine whether what caused the alarm is still present. If this is the case, the alarm will be shown again, otherwise the stove will switch OFF. If the alarm persists, contact a service centre. SATURNO 16 - 24...
  • Page 29: Routine Maintenance

    If good quality pellets are used, you will normally only need to use a brush to restore the optimal operating condi- tions of the component. Fig. 15 - Example of cleanly brazier Fig. 16 - Example of dirty brazier SATURNO 16 - 24...
  • Page 30: Hopper Cleaning

    To clean the ash collection compartment, extract the ash pan “P”. Remove any residual ash before reinserting the pan. Your expe- rience and the quality of the pellets will determine how often the ash pan must be cleaned. However, it is recommended not to exceed 2 or 3 days. SATURNO 16 - 24...
  • Page 31: Cleaning The Glass

    Open the firebox door and use the supplied brush to clean the 5 pipes located at the top inside the combustion chamber. Do this several times so that the ash deposited inside these pipes falls into the lower area around the brazier. Use a vacuum cleaner to remove all the fallen material. SATURNO 16 - 24...
  • Page 32: Fume Pipes Annual Cleaning

    For cleaning external and inner parts of the stove do not use steel wools, muriatic acid or other corrosive and abrasive materials. 15.14 CLEANING OF PAINTED METAL PANELS To clean painted metal panels use a soft cloth. Do not use degreasant agents like alcool, diluents, acetone, gasoline because these could irremediably damage the varnish. SATURNO 16 - 24...
  • Page 33: Cleaning Of Ceramic And Stone Panels

    Complete heat exchanger Smoke duct Door gasket Internal parts BY THE QUALIFIED TECHNICIAN Flue Circulation pump Plumbing components Electro-mechanical components Door closure operation * THE FREQUENCY OF CLEANING SHOULD BE INCREASED IF THE PELLETS ARE OF POOR QUALITY. SATURNO 16 - 24...
  • Page 34: In Case Of Anomaly

    Replace the protection fuses in the electric socket (3.15A- fuse in the electric 250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable Replace the flat cable. Faulty electronic Replace the mother board. board SATURNO 16 - 24...
  • Page 35 The door does not close perfectly or Close the door and have the gaskets replaced with other the gaskets are original ones worn Unsuitable pellets Change the type of pellets with one that is recommended by the manufacturer SATURNO 16 - 24...
  • Page 36 Change the type of pellet ble pellets Faulty fume tem- The exchanger Replace the fume probe. perature probe fan continues to turn even though the stove has just Faulty mother Replace the mother board. cooled board SATURNO 16 - 24...
  • Page 37 Stove running and When this flashing message appears upon start-up, it means tenance alert (it display showing that the preset operating hours have elapsed before mainte- does not block the "SERVICE" nance. Contact the service centre. system) SATURNO 16 - 24...
  • Page 38: Problem Solving (Thermostove)

    Replace the fuse The boiler does not start Broken manostat Low water pressure in the boiler (block signal) Clogged smoke Clean the smoke exhaust and/or smoke duct duct or exhaust Water temperature Call customer service probe has tripped SATURNO 16 - 24...
  • Page 39 Check its electrical connections, replace it if necessary. not turn Air inside the Bleed the radiators radiators No hot water Circulator (pump) Release the circulator (pump) comes out blocked Noise and gurgling Air in the system Vent the air and fill the system SATURNO 16 - 24...
  • Page 40 Rev. 00 - 2021 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
