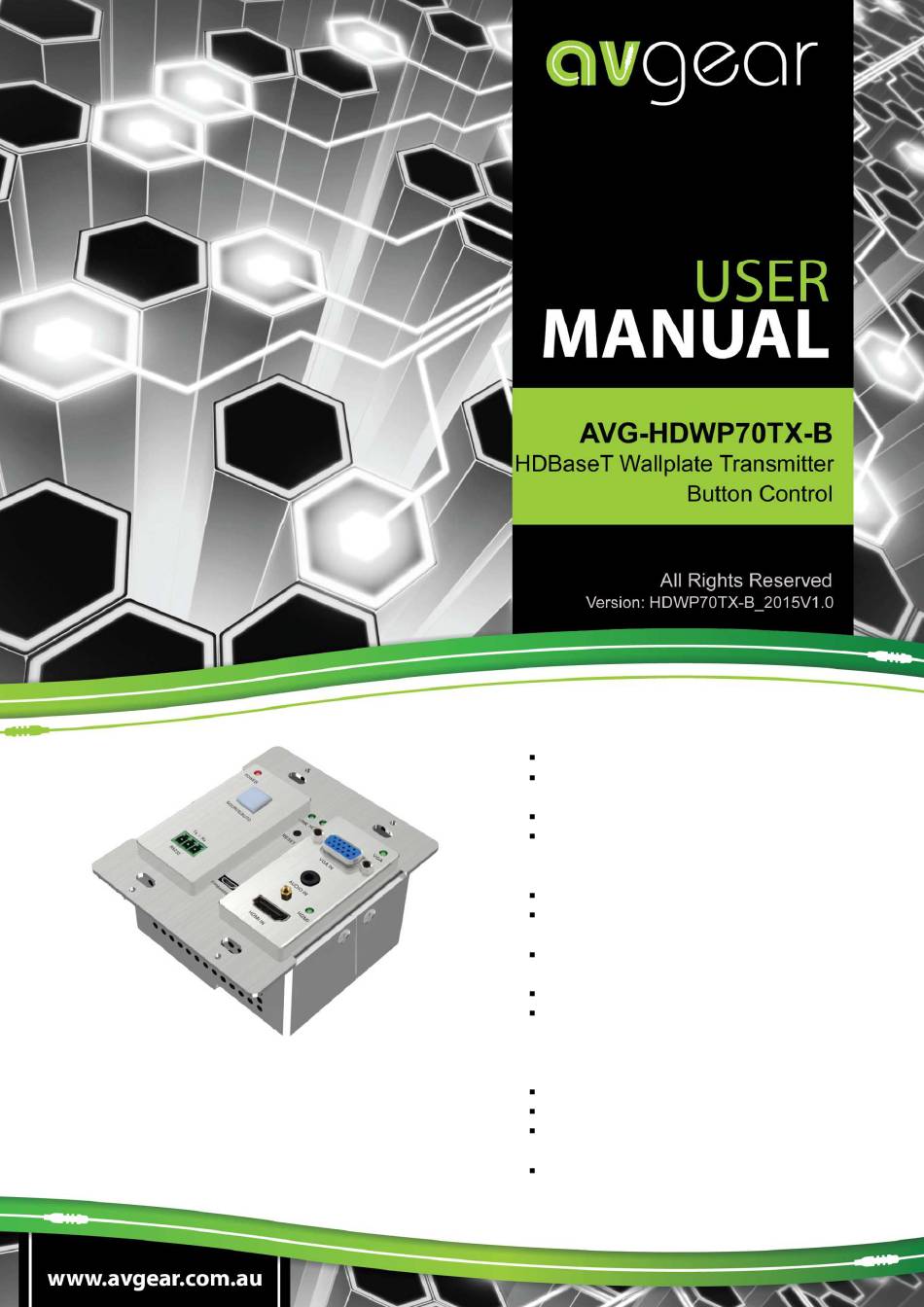

AVG-HDWP70TX-B
AVG-HDWP70TX-B is a Decora style
transmitter that installs in a double-gang wall
box to provide a convenient interface for
HDMI/VGA input sources.
Features
Selectable HDMI/ VGA with audio input
Supports VGA output resolution up to
1920x1200
High bandwidth: 10.2Gbps
In-built scaler function, supports scaling
of HDMI/ VGA signals to match the native
resolution of the display
Transmits HDMI signals up to 4K
Compliant with HDMI 1.4, supports 1080p
3D
HDCP compliant, equipped with HDCP
auto-tracking function
Provides auto-switching capability
Supports multiple control methods
including front panel buttons, and RS232,
supports bi-directional RS232 pass-
through control.
Supports firmware upgrade via USB.
DC 12V power output
Powered by local power pack or PoC
connection up to 60m
Aluminum design for efficient cooling
Advertisement
Table of Contents
Related Manuals for AVGear AVG-HDWP70TX-B
Summary of Contents for AVGear AVG-HDWP70TX-B
- Page 1 Provides auto-switching capability Supports multiple control methods including front panel buttons, and RS232, supports bi-directional RS232 pass- AVG-HDWP70TX-B is a Decora style through control. transmitter that installs in a double-gang wall Supports firmware upgrade via USB. box to provide a convenient interface for DC 12V power output HDMI/VGA input sources.
- Page 2 AVG-HDWP70TX-B PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is for operational use only, and not to be used in a maintenance capacity. The functions described in this version are current as at March 2015. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-HDWP70TX-B SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
AVG-HDWP70TX-B TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-HDWP70TX-B ............1.1 Features ....................... 1.2 Package List ....……………………………………………………………………2 Product Appearance ....................3 Front Panel ....................3.1 Side Panel ....................3.2 Rear Panel....................3.3 System Connection ....................4 System Application ..................4.1 Usage Precautions .................. -
Page 5: Introduction
1. Introduction 1.1. Introduction to the AVG-HDWP70TX-B AVG-HDWP70TX-B is a Decora style transmitter that installs in a double-gang wall box to provide a convenient interface for HDMI / VGA input sources. It has 1 HDMI IN, 1 VGA IN, Audio IN and 1 HDBaseT OUT with PoC. It supports VGA with a full HD scaler, and HDMI 1.4 with 4k&... -
Page 6: Package List
AVG-HDWP70TX-B 2. Package List 1 x AVG-HDWP70TX-B 4 x Screws (for AVG-HDWP70TX-B ) 3 x Pluggable Terminal Blocks (1 2-pin block, 1 3-pin block, and 1 4-pin block) 1 x Face Plate (Selectable) 4 x Screws (for the face plate) -
Page 7: Product Appearance
AVG-HDWP70TX-B 3. Product Appearance 3.1. Front Panel Name Description Power Illuminates red when power is on ① indicator Used as video source selection button (with backlight off): Press to select one source, press again to select next source, switching circularly between HDMI and VGA. - Page 8 AVG-HDWP70TX-B illuminates green when the signal source is chosen as input source turns off when there is no VGA input signal Connect with the audio output socket of VGA source ⑤ AUDIO IN device, delivers synchronous audio with the VGA signal source when choosing VGA as source signal.
-
Page 9: Side Panel
① Audio/ Video signals, supports PoC Note: Pictures shown in this manual are for reference only. Note: AVG-HDWP70TX-B supports unidirectional PoC, i.e. it can be powered from the far-end receiver but it can’t power the far-end receiver. 3.3. Rear Panel... -
Page 10: System Connection
AVG-HDWP70TX-B 4. System Connection 4.1. System Applications Reliable performance for control and transmission makes the AVG-HDWP70TX-B ideal in the IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. 4.2. Usage Precautions 1. -
Page 11: Connection Procedure
Step 1. Connect HDMI source device (e.g. Blu-ray DVD) to HDMI input ports of AVG-HDWP70TX-B with HDMI cable. Connect a VGA source device (e.g. PC) to the VGA input port of AVG-HDWP70TX-B with VGA cable. Step 2.Connect an AVG-HD402PR to the HDBaseT port on the rear panel with twisted pair. -
Page 12: Poc Solution
AVG-HDWP70TX-B 4.5. 12V DC Power AVG-HDWP70TX-B has a 12V power output port on the rear panel. Connect the 12V power output port of AVG-HDWP70TX-B to the power port of a 3 Party Device for convenient localized powering. Note: Pictures shown in this manual are for reference only. -
Page 13: Operations
AVG-HDWP70TX-B 5. Operations 5.1. Operations of the front panel buttons AVG-HDWP70TX-B has a channel switching button on the front panel, through which users can switch input source signals. It supports both manual switching and auto switching. (Default: Auto switching) Press and hold the switching button for 3 seconds or send command “50770% “ and “50771%”... -
Page 14: Rs232 Communication Commands
AVG-HDWP70TX-B Here we take the software CommWatch.exe as an example. The icon is shown as below: The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the Command Sending area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, then you are able to send commands in Command Sending Area. - Page 15 AVG-HDWP70TX-B polarity to the opposite Change the vertical 50706% Vpolarity:0/1 polarity to the opposite 1920x1080 Check the present 50707% Hpolarity:1 resolution and polarity Vpolarity:0 50770% Enable auto-switching Auto Switching 50771% Disable auto-switching Manual Switching Resolution Commands Change the resolution to...
- Page 16 AVG-HDWP70TX-B Set the sharpness to xx. 505xx% Sharpness: xx XX ranges from 00 to 99 Auto-adjust the input 50606% VGA Input Auto parameter Adjust the color Color Temperature: xx (xx can be 50607% temperature medium, warm, user, or cool) Aspect Ratio: xx (xx can be 16:9, 4:3,...
- Page 17 AVG-HDWP70TX-B HDCP Off 50793% Check HDCP status HDCP On HDCP Active Check the image aspect 50635% Aspect Ratio: xx ratio 50636% Check the brightness Brightness: xx 50637% Check the contrast Contrast: xx 50638% Check the saturation Saturation: xx 50639% Check sharpness...
- Page 18 AVG-HDWP70TX-B EDID Commands 50772% EDID pass-through EDID: bypass mode Set EDID data to 1080P 50773% EDID:1080P&PCM 2ch PCM 2.0ch Set EDID data to 1080P 50774% EDID:1080P&5.1ch Dolby 5.1 EDID data 50775% EDID:1080P3d&5.1ch 1080P3D Dolby 5.1 Set EDID data to 1080i 50776% EDID:1080i&PCM 2ch...
-
Page 19: Specification
AVG-HDWP70TX-B 6. Specification Video Input 1 HDMI, 1 VGA Output 1 HDBaseT 1 19-pin Type A Input Output HDMI female; 1 1 RJ45 Connector Connector 15-pin VGA Transmission HDBaseT Mode Audio Input 1 synchronous VGA audio Input 1 3.5mm stereo jack... -
Page 20: Panel Drawing
AVG-HDWP70TX-B Chassis Decora style Power DC 12V 2A; 9.6W Dimension two gang Supply Reference Temperature -10 ~ +40℃ 10% ~ 90% Humidity Dimension 104.5 x 89 x 44 Weight 0.29Kg (W*H*D) 7. Panel Drawing 88.72 mm POWER LINK HDCP RESET... -
Page 21: Troubleshooting & Maintenance
AVG-HDWP70TX-B 8. Troubleshooting & Maintenance Problems Causes Solutions Color loss or no The connecting Check whether the cables are video signal output cables may not be connected correctly and in good on HDMI display connected correctly working condition. or may be faulty...
