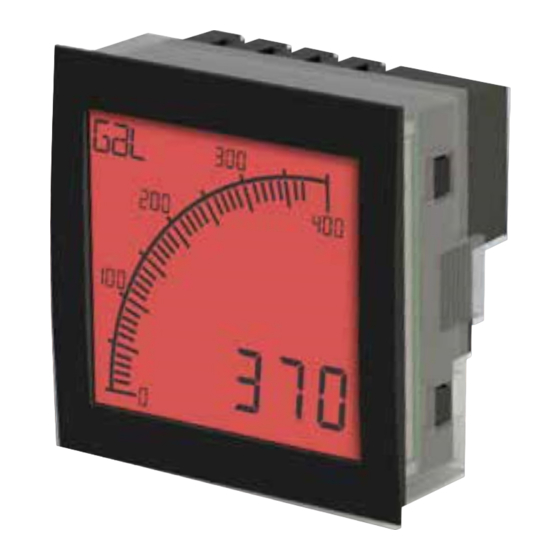

- Page 1 APM-PROC Process Meter Quick Start Guide KESSLER-ELLIS PRODUCTS 10 Industrial Way East Eatontown, NJ 07724 800-631-2165 • 732-649-7100 Fax: 732-649-7099 h t tp : / /w w w. k ep . c om 990374 06/03/16...
-
Page 2: Safety Warnings
Safety Warnings WARNING: INSTALLATION AND MAINTENANCE MUST BE CARRIED OUT BY SUITABLY QUALIFIED AND COMPETENT PERSONEL ONLY. HAZARDOUS VOLTAGES MAY BE PRESENT ON THE CONNECTION TERMINALS. INSTALLATION • Install this product in accordance with local regulations, codes and instructions. • All fuses must be 0.5A / 250V Type F with a breaking capacity of 35A or greater. •... -
Page 3: Key Features
Max current 50mA Analogue output 4-20mA CERTIFICATION UL and cUL (Pending), CE How To Order EXAMPLE: APM-PROC Series: Process Meter Display Type: APO = Positive LCD ANO = Negative LCD Accessories: APM-E200 - Outdoor Enclosure with cutout for 1 APM... -
Page 4: Value Unit
Intended Use DIP Switches Intended Use: The APM has been specifically designed for engineers requiring an effective way to monitor and display Bar Graph Annunciator data. The APM accepts a range of electrical inputs (depend- Item 1234 Input Input Range ing on the model) and displays the data on its integrated multi-format display. -
Page 5: Wiring Diagrams
Wiring Diagrams Inputs Outputs CURRENT INPUT VOLTAGE INPUT VOLTAGE or CURRENT INPUTS VOLTAGE or CURRENT INPUTS EN: 4-20 mA analogue output using setpoint 1. EN: 4-20 mA analogue output using setpoint 1. EN: Using a diode-protected relay on setpoint 1. EN: Using a diode-protected relay on setpoint 1. -
Page 6: Setup Software
Setup Software APM Configurator Software Minimum System Requirements The Trumeter APM Configurator software allows you to The APM Configurator software installs directly onto a programme custom configurations onto your APM. You can Windows-based PC. It is not intended to install over a network set the display range, backlight colour, setpoints and many or run from a server. The APM Configurator software needs: other features. Just plug into any USB port on your PC, run •... - Page 7 Alarm 1 Setup - APM Configurator Software The first tab is used to setup values and functions for Alarm 1. Alarm 2 Setup - APM Configurator Software The second tab is used to setup values and functions for Alarm 2.
- Page 8 Alarm Backlight Setup - APM Configurator Software The third tab is used to setup color and brightness for the Backlight. Response Setup - APM Configurator Software The fourth tab is used to setup the Response time for the display digits, bar graph and alarms.
- Page 9 Scale Setup - APM Configurator Software The fifth tab is used to setup the Scale. Up to 20 input/output pairs can be entered.
