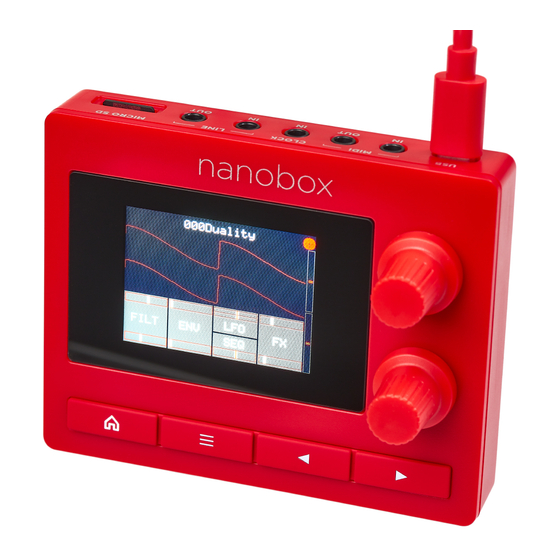

Nanobox Fireball Quick Start Guide
GET SET UP
1.
Insert the microSD card. The card must be in the slot for fireball to load. The card is spring-
loaded. Push to eject when needed, but leave it in for now.
2.
Connect the Line Out to your mixer, speakers or headphones.
3.
Connect an optional MIDI controller to the MIDI IN jack. TRS Type A and B are supported.
4.
Connect the USB power cable.
5.
Play notes on the MIDI controller or the Grid Keyboard screen and you are making music!
FIND YOUR WAY AROUND
PRESET NAME
Touch to load and save presets.
CONTROL PANEL
Gauges show the
real time state of
each control.
Touch to access
the related
settings.
HOME BUTTON
Access the
Dashboard and
the Performance
Stack
1 of 4
WAVETABLE GRAPHS
Touch to configure the
Main Oscillators.
LAYER BUTTON
Cycle between the
layers in the current
feature stack.
CLOCK
Shows the tempo.
LEFT ARROW BUTTON
Go back to the previous screen.
RIGHT ARROW BUTTON
Access more detail about the
current selection.
X/Y GAUGES
Values of the
X and Y
modulators.
KNOBS
Control X and Y
modulators, scroll
through a list and
choose settings.
