1010 Music fxbox Quick Start Manual

Before You Start

A microSD card must be inserted into
fxbox before you can get started.

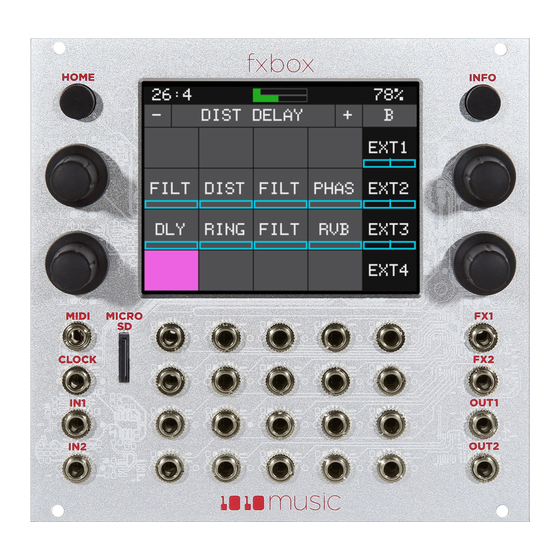

Fxbox takes audio input from IN1 and
IN2, processes the configured effects,
and sends the result to OUT1 and
OUT2. All settings are stored on the
microSD card.

Apply Effects

When fxbox starts up, the Touch Screen
Main
displays the screen with the effects
grid. Activate an effect by doing one of the
following:
Touch a cell on the Touch Screen to
•
momentarily enable that effect.
Trigger the effect via CV signal by
•
plugging a gate signal into the CV
Trigger jack that maps to the effect
in the grid.
Set the effect to be always on by setting the
•
following the steps below. (Not all effects have a trigger property.)

Edit the Parameters of an Effect

1. Touch the cell of the effect in the grid on the
Push the Info button. You will see parameters specific to that effect, such as
2.
Cutoff Delay Time
and
Adjust a parameter by turning the Control Knob next to it.
3.
4. Alternatively, touch and drag in the middle of the Touch Screen to control
the first two parameters using X/Y control. Move your finger left and right to
control the first parameter, up and down to control the second parameter.
Note:
The signal processing chain applies the effects in the same order in which you read a book: Left to right,
•
then top to bottom.

Select a Preset

Main
1. From the
–
touching the and
02BadTapeEcho
(
Main
2. On the screen, touch the preset name at the top of the grid (or the
space above it) to display the
Preset
3. Select a
Knobs, and then touching
Screen.
Note:
All changes you make to the sound are automatically remembered and
•
written to the preset. There is no option to "Discard Changes" or "Save Preset".

Mute Effects

Main
1. While on the
green.
2. Touch a cell to mute that effect. The cell will turn red. Touch it again to remove the mute.
3. Push the Home button to leave mute editing mode. A red bar appears over the names of muted effects.
3/9/17 3:20 PM
fxbox Quick Start Guide
.
screen, you can cycle through the list of presets by
+
buttons on either side of the preset name
Main
in the Screen example shown above right).
Presets
by scrolling through the list with any of the Control
Load in the top right corner of the Touch
screen, push the Home button to enter mute editing mode. The grid cells will be
Trigger Mode
property for the effect to
Main
screen.
screen.
ON
by
Main
Screen
Presets
Screen
Copyright 1010 Music 2017
