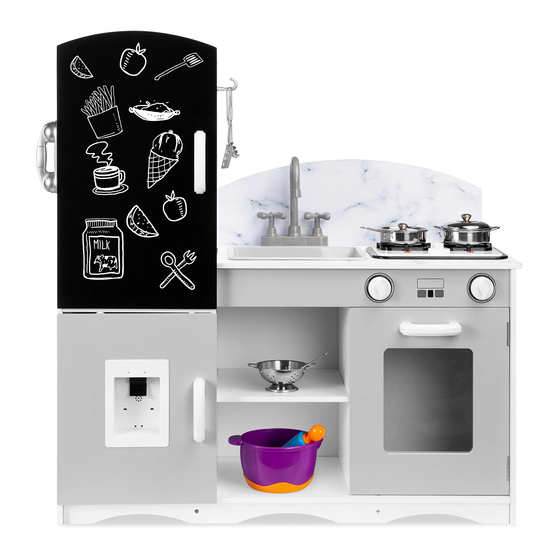

- Page 1 INSTRUCTION MANUAL Kids Kitchen Playset SKY4954 + SKY5967 Ver. 2...
- Page 2 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
-
Page 3: Tools Required
NOTICE Please retain these instructions for future reference. ADULT ASSEMBLY REQUIRED • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and knobs before use. • Reconfirm that all bolts, screws, and knobs are secure every 90 days. •... - Page 4 HARDWARE HINGE DOOR INSERT DOOR CATCH HANDLE HOOK 6 PCS 3 PCS 3 PCS 3 PCS 3 PCS DOWEL M4 x 16mm M3 x 20mm SCREW SCREW 6 PCS 2 PCS 3 PCS PARTS PANTRY LEFT PANTRY RIGHT PANTRY TOP 1 PC 1 PC 1 PC...
- Page 5 PARTS PANTRY BACK BASE SINK SHELF 1 PC 1 PC 1 PC OVEN BACK SKIRT SINK/OVEN DIVIDER 1 PC 1 PC 1 PC OVEN DOOR OVEN SIDE PANTRY DOOR 1 PC 1 PC 1 PC REFRIGERATOR DOOR COUNTER PANEL SINK 1 PC 1 PC 1 PC...
- Page 6 PARTS FAUCET KNOB PHONE RECEIVER 1 PC 2 PCS 1 PC PHONE ICE DISPENSER STOVETOP 1 PC 1 PC 1 PC SINK BACK 1 PC...
- Page 7 PRODUCT ASSEMBLY Attach three part 8 door catches to the part B pantry right panel and part L divider with six part 3 screws, two screws per door catch. Attach two part T knobs to the part Q counter panel with four part 4 screws.
- Page 8 PRODUCT ASSEMBLY Attach the part K skirt to the part H base with two part 1 screws. Attach the part I sink shelf to the part B pantry right with two part 11 dowels. Attach the pantry right to the base with two part 1 screws. Attach the part L sink/oven divider to the part I shelf with two part 11 dowels.
- Page 9 PRODUCT ASSEMBLY Locate the part A pantry left and attach it to the base with one part 11 dowel and two part 1 screws. Insert the part D pantry divider and secure with four part 1 screws. Locate the part N oven side and attach it to the base with one part 11 dowel and two part 1 screws.
- Page 10 PRODUCT ASSEMBLY Insert the part G pantry back between the pantry left and right. Insert the part Y sink back between the part B pantry right and the part L divider. Insert the part J oven back between the part L divider and the part N oven side. Locate the part C pantry top and attach it to the part A&B pantry left and right with four part 1 screws.
-
Page 11: Product Assembly
PRODUCT ASSEMBLY Attach the part E backsplash to the part F countertop with two part 1 screws. Insert the part S faucet and secure with two part 2 screws. Attach the countertop assembly with seven part 1 screws. Attach three part 10 hooks to the part B pantry right with three part 13 screws. - Page 12 PRODUCT ASSEMBLY Insert the part U phone receiver into the part A pantry left and secure with two part 12 screws. Attach the part V phone to the part U phone receiver. Install two AAA batteries in the part X stovetop, then insert into the part F countertop. Insert the part R sink into the part F countertop.
- Page 13 PRODUCT ASSEMBLY Attach one part 7 door insert to the part P refrigerator door with two part 3 screws. Attach one part 9 handle with two part 4 screws and set aside. Attach the part W ice dispenser to the part P refrigerator door with four part 5 screws.
- Page 14 PRODUCT ASSEMBLY Attach one part 7 door insert to the part O pantry door with two part 3 screws. Attach one part 9 handle with two part 4 screws and set aside. Attach one part 7 door insert to the part M oven door with two part 3 screws. Attach one part 9 handle with two part 4 screws and set aside.
- Page 15 PRODUCT ASSEMBLY Attach part O pantry door, part P refrigerator door, and part M oven door with twenty-four part 5 screws and six part 8 hinges, four screws per hinge. Install two AAA batteries in the ice dispenser. AAA -...
-
Page 16: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
