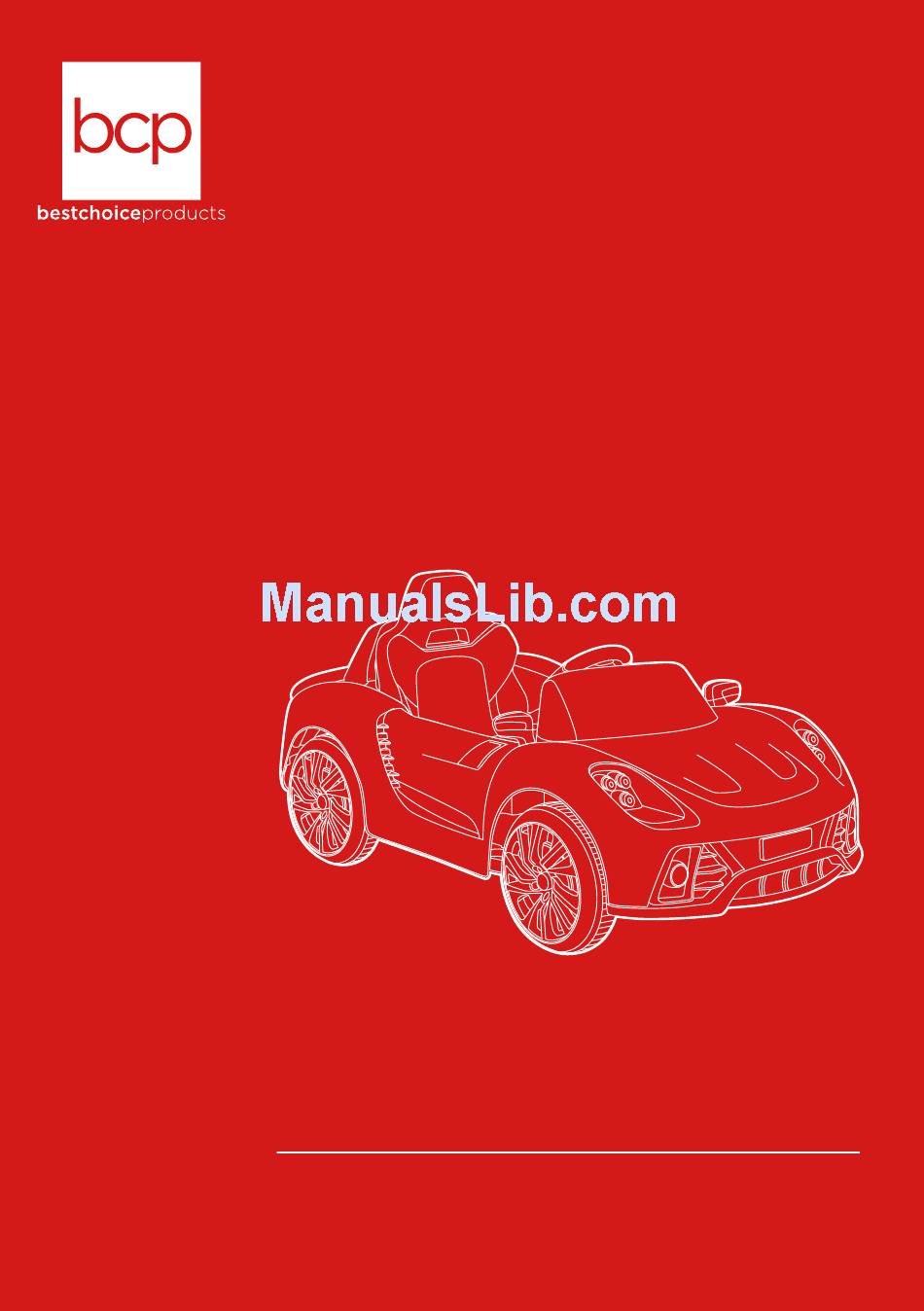

- Page 1 INSTRUCTION MANUAL Ride-On Convertible SKY907 + SKY908 + SKY2308 Ver. 3...
-
Page 2: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 3: User Warnings
USER WARNINGS The following safety hazards may result in serious injury or death: • Never leave a child unattended. • Always sit in the seat when using this vehicle. • Keep your hands, hair, and clothes away from moving parts. •... -
Page 4: Tools Required
TOOLS REQUIRED SMALL PHILLIPS WRENCH SCREWDRIVER 77 LBS 2 PERSON APPROXIMATELY ASSEMBLY 45 MIN. CAPACITY ASSEMBLY HARDWARE SCREW WASHER COTTER PIN 16 PCS 6 PCS 4 PCS PARTS CENTER FRAME REAR FRAME REAR AXLE FRONT WHEEL 2 PC 2 PCS 2 PC 2 PC REAR WHEEL... -
Page 5: Product Assembly
PRODUCT ASSEMBLY Please retain these instructions for future reference. Flip the vehicle over and lay it on a level surface. Attach the part A center frame pieces with twelve part 1 screws. Attach the part B rear frame pieces with four part 1 screws. Pg. - Page 6 PRODUCT ASSEMBLY Slide on a part 2 washer, part D front wheel, and another part 2 washer onto a front wheel axle and secure it with a part 3 pin. Repeat on the other side. Snap a part F hub cap onto each wheel. Slide the part C rear axle through the body of the vehicle.
- Page 7 PRODUCT ASSEMBLY Join the connector from the part H steering wheel to the connector from the steering mount. Remove the nut and bolt from the steering wheel, slide on the steering wheel, and then replace the nut and bolt to secure the steering wheel to the mount.
- Page 8 PRODUCT ASSEMBLY Within the seat, join the connectors from the gear boxes to the corresponding connectors leading from the front of the car. Insert the connector from the battery into the designated terminal on the circuit board. Pg. 8...
- Page 9 PRODUCT ASSEMBLY Snap on the part J side mirrors. Install the part I seat and secure the latch to lock it in place. Pg. 9...
- Page 10 CHARGING INSTRUCTIONS & WARNINGS: • Charging socket is located in the center of the vehicle behind the seat. Insert one end of the part M charger into the charging socket and plug the other end into a wall outlet. • Charge the battery at least 18 hours before initial use.
-
Page 11: Remote Control Diagram
REMOTE CONTROL DIAGRAM • Insert 2 AAA batteries into the remote control. • On the vehicle dashboard, press the remote/manual control switch to change from manual control to remote control. FORWARD/REVERSE TURN LEFT/TURN RIGHT TROUBLESHOOTING Problem Reason Solution Low battery Fully charge the battery Stop use for several minutes and restart Electrical protection... -
Page 12: Product Warranty Information
ASSEMBLY IS COMPLETE! PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included. All returned items will receive a full refund back to the original payment method.
