INSTRUCTION
MANUAL

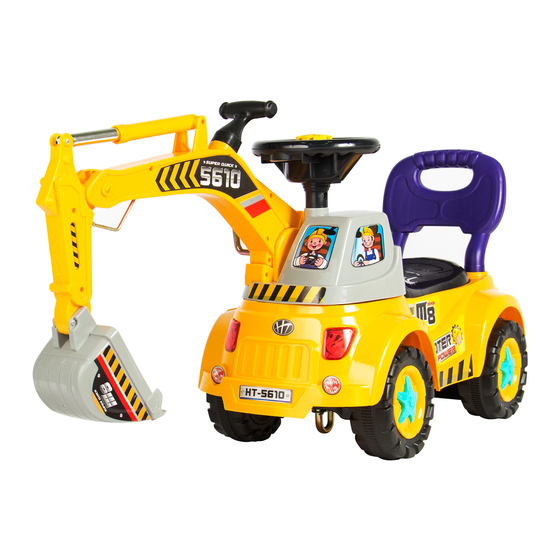

Kids Ride-On Excavator
SKY2219
Ver. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY2219 and is the answer not in the manual?

Questions and answers

Summary of Contents for BCP SKY2219

  • Page 1 INSTRUCTION MANUAL Kids Ride-On Excavator SKY2219 Ver. 2...
  • Page 2 SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle.
  • Page 3 TOOLS REQUIRED AA - PHILLIPS 2 AA BATTERIES 44 LBS 1 PERSON APPROXIMATELY SCREWDRIVER ASSEMBLY 25 MIN. CAPACITY ASSEMBLY HARDWARE SCREW 2 PCS PARTS STEERING WHEEL EXCAVATOR ARM EXCAVATOR BUCKET 1 PCS 1 PC 1 PC WATERING CAN BACKREST SHOVEL 1 PC 1 PC 1 PC...
  • Page 4 PRODUCT ASSEMBLY Use a screwdriver to install two AA batteries on the back of the part A steering wheel. Remove the nut and bolt from the steering wheel mount, slide on the steering wheel, and then replace the nut and bolt to secure the steering wheel to the mount. NOTE: If the steering wheel mount sinks into the vehicle body during installation, push the mount back up from underneath the vehicle.
  • Page 5 PRODUCT ASSEMBLY Insert the part B excavator arm into the slot to the right of the steering wheel and it will lock in place. Slide the part C excavator bucket onto the arm and secure it with two part 1 screws. Pg.
  • Page 6 PRODUCT ASSEMBLY Insert the part D backrest into the slots behind the seat. Assemble the part F shovel and part G rake by snapping the pieces together. Pg. 6...
  • Page 7 USAGE NOTES • There is additional storage space underneath the seat. • Pull the lever back and the excavator arm will go back. Push the lever forward and the excavator arm will go forward. • Use the handle to swing the excavator sideways or up and down. CARE AND MAINTENANCE: •...
  • Page 8 ASSEMBLY IS COMPLETE! PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included. All returned items will receive a full refund back to the original payment method.
