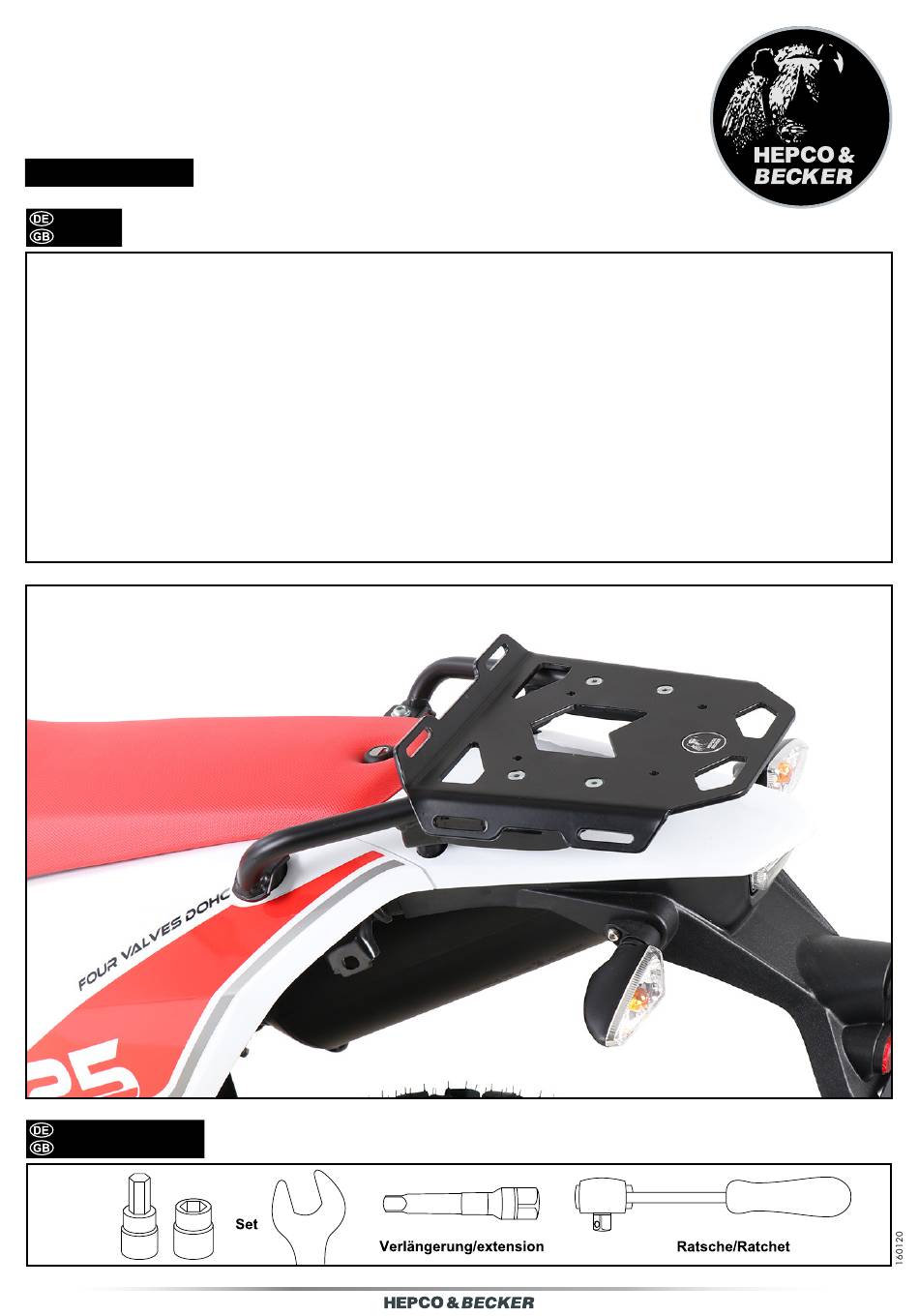

Minirack
Mondial SMX 125 I Enduro/Supermoto CBS
ab Baujahr 2019 / from date of manufacture 2019
Artikel Nr.: / Item-no.:
7607
660
01 01
schwarz/black
INHALT
CONTENT
1x 700009031 Minirack
1x 700010754 Rohradapter links
1x 700010755 Rohradapter rechts
1x 700010757 Schraubensatz:
4x Senkschrauben M6x16
2x Linsenschrauben M8x40
2x Linsenschrauben M8x35
2x Aludistanz Ø18xØ11x15 schwarz
2x Aludistanz Ø18xØ11x20 schwarz
4x Selbstsichernde Mutter M6
4x U-Scheiben Ø8,4
4x U-Scheiben Ø6,4
1x Logo Hepco & Becker ø30mm
4x Verschlußstopfen Ø8 mm
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
1x 700009031 Minirack
1x 700010754 Tube adapter left
1x 700010755 Tube adapter right
1x 700010757 Screw kit:
4x Countersunk screws M6x16
2x Filister screw M8x40
2x Filister screw M8x35
2x Alu spacer Ø18xØ11x15 black
2x Alu spacer Ø18xØ11x20 black
4x Self lock nut M6
4x Washer Ø8,4
4x Washer Ø6,4
1x Emblem Hepco & Becker ø30mm
4x Plastic plugs Ø8 mm
1
