hepco & becker 6607569 01 01 Manual

hepco & becker 6607569 01 01 Manual

Minirack ktm 790 duke from date of manufacture 2018

Advertisement

Quick Links

Minirack
KTM 790 Duke
ab Baujahr 2018 / from date of manufacture 2018
Artikel Nr.: / Item-no.:
7569
660
01 01
schwarz/black
INHALT
CONTENTS
1x
700009031

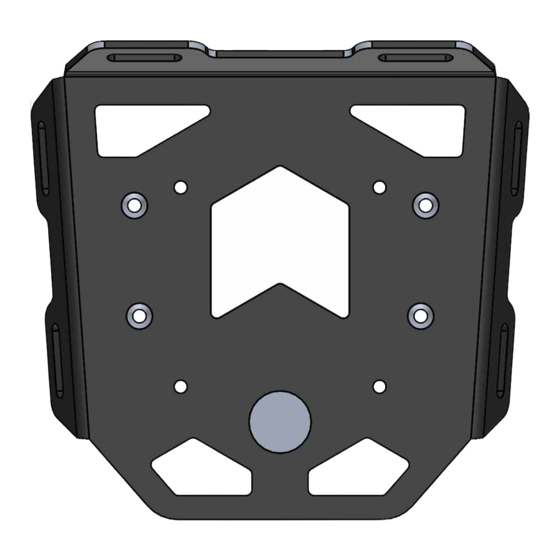

Minirack Alupalette
1x
700010061
Rohradapter links
1x
700010062
Rohradapter rechts
1x
700010073
Schraubensatz:
4x
Linsenschraube M8x65
4x
Senkkopfschrauben M6x20
4x
Selbstsichernde Mutter M6
4x
U- Scheibe Ø6,4
4x
U- Scheibe Ø8,4
1x
Logo Hepco & Becker ø30mm
4x
Verschlußstopfen Ø8 mm
2x
Aludistanz Ø15xØx9x20mm
2x
Aludistanz Ø15xØx9x25mm
1x
1x
1x
1x
Kombinierbar mit C-Bow Taschenhalter 6307569 00 01
Combinable with C-Bow soft bag holder 6307569 00 01
HINWEIS
NOTICE
Bei langen Autobahnfahrten entsteht durch die Auspuffsituation
ein enormer Hitzestau, der zum Schmelzen vom Topcasekunststoff
oder anderen Gepäckstücken führen kann. Wir empfehlen daher
unbedingt die Verwendung unseres optionalen Hitzeschutzblechs
Art.Nr.: 42247569 00 01
During long motorway journeys, the exhaust situation results in
an enormous heat accumulation which can lead to melting of the top
case plastic or other pieces of luggage. We therefore strongly
recommend the use of our optional heat protection plate
Product No.: 42247569 00 01
700009031
Alu palette
700010061
Tube adapter left
700010062
Tube adapter right
700010073
Screw kit:
4x
filister head screw M8x65
4x
countersunk screws M6x20
4x
self lock nut M6
4x
washer ø6,4
4x
washer Ø8,4
1x
emblem Hepco & Becker
4x
plastic plugs Ø8 mm
2x
alu spacer Ø15xØx9x20mm
2x
alu spacerØ15xØx9x25mm
1
