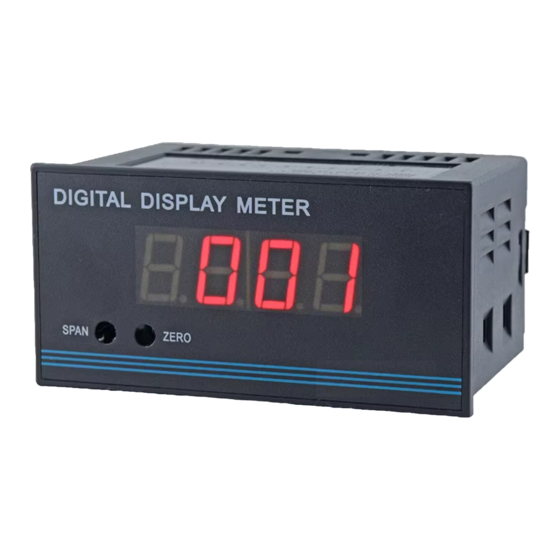

SOMMY SG8-SVA User Manual

SG Se ries Di gi ta l Senso r D ispl ay Met er
For your safty, please read following content carefully before you are using the meter!
Safe Caution
Please read the manual carefully before you use the temperature controller.
※ Please comply with the below important points.
Warning An accident may happen if the operation does not comply with the instruction.
Notice An operation that does not comply with the instruction may lead to product damage.
The instruction of the symbol in the manual is as below.
An accident danger may happen in a special condition.
Warning
1. A safty protection equipment must be installed or please contact with us for the relative information if the product is
used under the circumstance such as nuclear control, medical treatment equipment, automobile, train, airplane, aviation
and equipment etc. Otherwise, it may cause serious loss, fire or person injury.
2. A panel must be installed, otherwise it may cause creepage (leakage).
3. Do not touch wire connectors when the power is on, otherwise you may get an electric shock.
4. Do not dismantle or modify the product. If you have to do so, please contact with us first. Otherwise it may cause electric
shock and fire.
5. Please check the connection number while you connect the power supply wire or input signal, otherwise it may cause fire.
Caution
1. This product cannot be used outdoors. Otherwise the working life of the product will become shorter, or an electric
shock accident may happen.
2. When you connect wire to the power input connectors or signal input connectors, the moment of the No.20 AWG
(0.50 mm2) screw tweaked to the connector is 0.74n.m - 0.9n.m. Otherwise the connectors may be damaged or get fire.
3. Please comply with the rated specification. Otherwise it may cause electric shock or fire, and damage the product.
4. Do not use water or oil base cleaner to clean the product. Otherwise it may cause electric shock or fire and damage
the product.
5. This product should be avoid working under the circumstance that is flammable, explosive, moist, under sunshine,
heat radiation and vibration. Otherwise it may cause explosion.
6. In this unit it must not have dust or deposit, otherwise it may cause fire or mechanical malfunction.
7. Do not use gasoline, chemical solvent to clean the cover of the product because such solvent can damage it. Please
use some soft cloth with water or alcohol to clean the plastic cover.
SG8-SVA Digital Sensor Display Meter User's Manual
Features:
⊙
Be applicable for sensors with linear output features or other equipments,
such as measuring pressure, weight, temperature and humidity and so on
⊙
With decimal point, span, range and zero point setting functions.
KKSG8E01-1
