SOMMY EP8 SVA Series User Manual

EP8 SVA se ries Sen sor in dica to r
For your safe, please read the below content carefully before you use the temperature controller !
Safe Caution
For your safe, please read the below content carefully before you use the
Please comply with the below important points:
Warning An accident may happen if the operation does not comply with the instruction.
Notice An operation that does not comply with the instruction may lead to product damage.
The instruction of the symbol in the manual is as below:
An accident danger may happen in a special condition.
Warning
1. A safety protection equipment must be installed or please contact with us for the relative information if the product is used under
the circumstance such as nuclear control, medical treatment equipment ,automobile, train, airplane, aviation, entertainment or safety
equipment, etc. Otherwise, it may cause serious loss, fire or person injury.
2. Apanel must be installed, otherwise it may cause creepage (leakage).
3. Do not touch wire connectors when the power is on, otherwise you may get an electric shock.
4. Do not dismantle or modify the product, If you have to do so, please contact with us first. Otherwise it may cause electric shock
and fire.
5. Please check the connection number while you connect the power supply wire or input signal, otherwise it may cause fire.
.
Caution
1. This product cannot be used outdoors. Otherwise the working life of the product will become shorter, or an electric shock accident
may happen.
2. When you connect wire to the power input connector or signal input connectors, the moment of the No.20AWG (0.50 mm2) scrwew
tweaked to the connector is 0.74n.m-0.9n.m. Otherwise the connectors may be damaged or get fire.
3. Please comply with the rated specifications. Otherwise it may cause fire after the working life of the product becomes shorter.
4. Do not use water or oil base cleaner to clean the product. Otherwise it may cause electric shock or fire, and damage the product.
5. This product should be avoid working under the circumstance that is flammable, explosive, moist, under sunshine, heat radiation and
vibration.
6. In this unit it must not have dust or deposit, otherwise it may cause fire or mechanical malfunction.
7. Do not use gasoline, chemical solvent to clean the cover of the product because such solvent can damage it. Please use some soft
cloth with water or alcohol to clean the plastic cover.
1.Code Illustration:
EP8 SVA
□ □

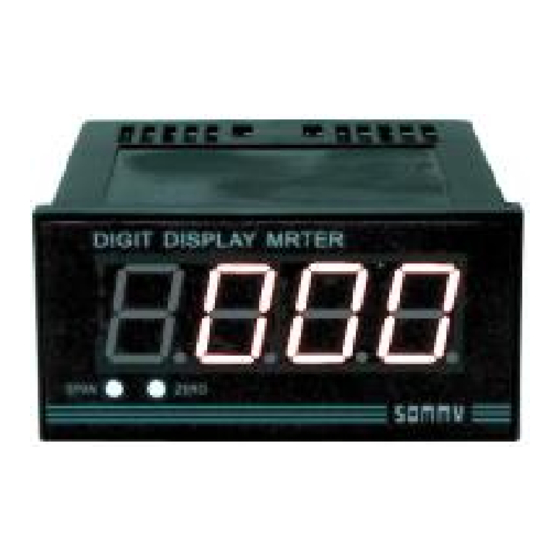

EP8-SVA Digital Display Sensor Indicator
Usrer's Manual
Features:
1) Be applicable for sensor with liner output features or other equipments such as
measuring pressure, weight, temperature, humidity and so on.
2) With decimal point, span, range and digit zero setting function
3) With transmitted analog 4～20mA output.
4) Auxiliary output power supply +12V or 24V
A:12VDC; B:24VDC
Transmit output: 1: no transmit output; 2: with transmit output 4～20mA
EP8-SVA series Sensor indicator. Size 48HX96W
temperature controller !
KKEP8SVAE01-1
