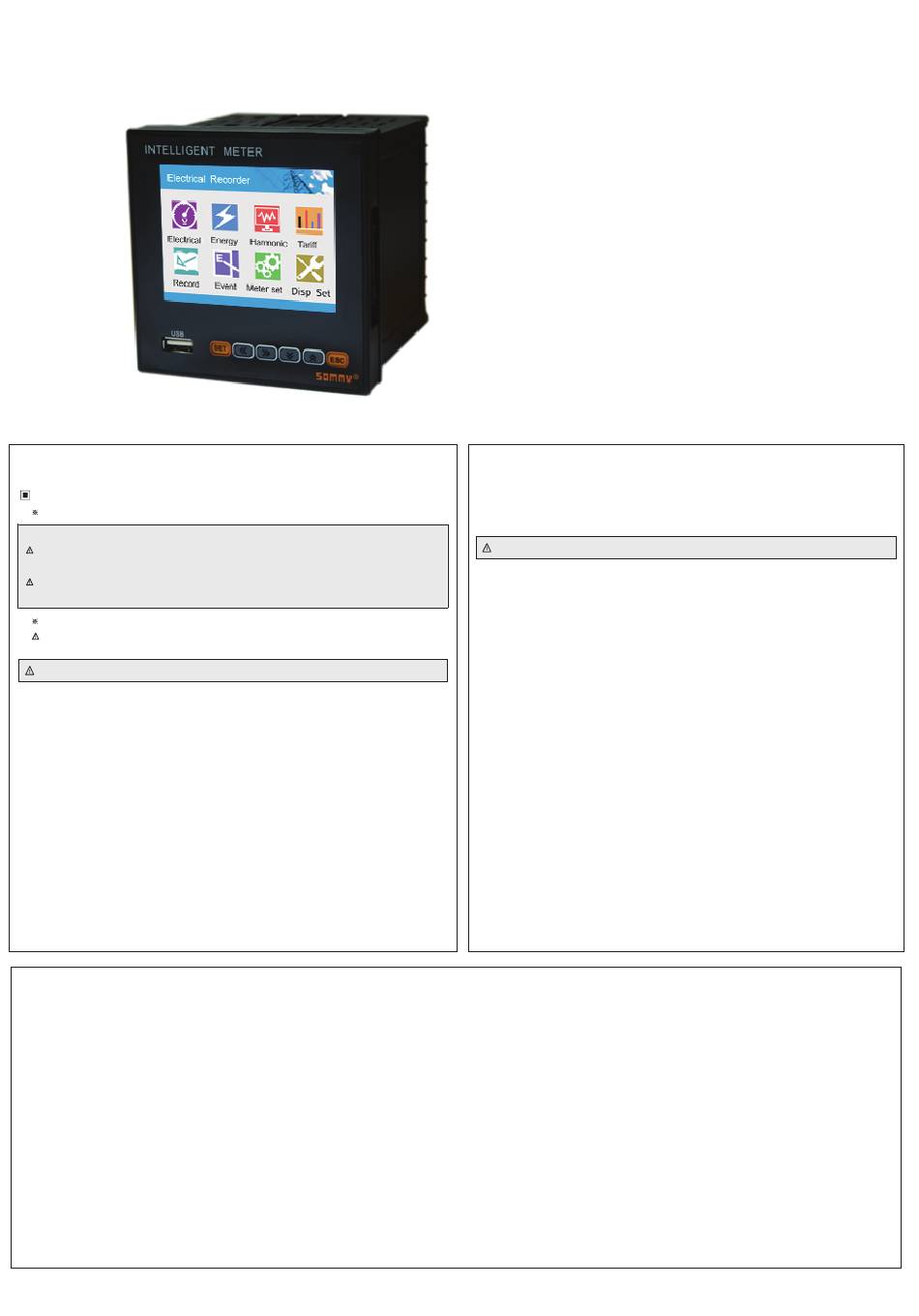

ER9 Series 3 Phase Multi-function Power Recorder Operation Manual
For your safety , please read the content before usage.
Safe Caution
please read the manual carefully before using the meter .
Please comply with the below important points:
※
Warning An accident may happen if the operation does not comply
with the instruction.
Notice An operation that does not comply with the instruction may lead
to product damage.
The instruction of the symbol in the manual is as below:
An accident danger may happen in a special condition.
Warning
1. A safety protection equipment must be installed or please contact with
us for the relative information if the product is used under the circumstance
such as nuclear control, medical treatment equipment ,automobile, train,
airplane, aviation, entertainment or safety equipment, etc. Otherwise, it may
cause serious loss, fire or person injury.
2. Apanel must be installed, otherwise it may cause creepage (leakage).
3. Do not touch wire connectors when the power is on, otherwise you may
get an electric shock.
4. Do not dismantle or modify the product, If you have to do so, please
contact with us first. Otherwise it may cause electric shock and fire.
5. Please check the connection number while you connect the power supply
wire or input signal, otherwise it may cause fire.
Features:
⊙ 320*340 TFT color LCD display.
⊙ Measure 3 phase voltage , ampere , reactive power ,active power , apparent power , power factor , frequency , Kwh , KvarH ect.
⊙ Three phase voltage , ampere , active power , reactive power ,and other parameters real time record and curve record storage
⊙ Total Kwh and total KvarH accumulation memory function.
⊙ Both side and outside storage , support SD card and USB storage , maximum storage is 4GB
⊙ Switch output: AL1, AL2 relay switch output
⊙ Analog output : one 4-20mA DC transmition output.
⊙ Switch input :4 switch input S1-S4 , used in remote control the electric swith status.
⊙ With RS485 communication , Modbus RTU
⊙ Optional tariff statistics function, with demand statistics function.
⊙Optional harmonic analysis funtion (including the total harmonics).
⊙ Backup data can be opened by PC software to show the real time curve record
This meter can measure and record the true value of voltage , ampere ,
active power , reactive power , power factor , Kwh , KvarH ect. It also
can generates various kinds of report forms . The parameters can copy
to SD card or USB automatically or by manual .
With RS485 communication port , support modbus RTU. It can be widly
used in SCADA system and energy management system , power station
automation system , power grid , estate power monitor , intelligent building ,
intelligent switchboard and switch cabinet ect
Caution
1. This product cannot be used outdoors. Otherwise the working life of the
product will become shorter, or an electric shock accident may happen.
2. When you connect wire to the power input connector or signal input
connectors, the moment of the No.20AWG (0.50 mm2) scrwew tweaked
to the connector is 0.74n.m-0.9n.m. Otherwise the connectors may be
damaged or get fire.
3. Please comply with the rated specifications. Otherwise it may cause fire
after the working life of the product becomes shorter.
4. Do not use water or oil base cleaner to clean the product. Otherwise it
may cause electric shock or fire, and damage the product.
5. This product should be avoid working under the circumstance that is
flammable, explosive, moist, under sunshine, heat radiation and vibration.
6. In this unit it must not have dust or deposit, otherwise it may cause fire
or mechanical malfunction.
7. Do not use gasoline, chemical solvent to clean the cover of the product
because such solvent can damage it. Please use some soft cloth with
water or alcohol to clean the plastic cover.
2
KKER9C02-A0-page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SOMMY ER9 Series
Summary of Contents for SOMMY ER9 Series
- Page 1 ER9 Series 3 Phase Multi-function Power Recorder Operation Manual This meter can measure and record the true value of voltage , ampere , active power , reactive power , power factor , Kwh , KvarH ect. It also can generates various kinds of report forms . The parameters can copy to SD card or USB automatically or by manual .
-
Page 2: Technical Parameters
Technical Parameters Connection 3 phase 3 wires, 3 phase 4 wires Voltage Range AC 3x57.7V / 3X220V (note: Direct input volt: L-N: 0~600V, L-L: 0~1000V) Voltage Overload Continuous: 1.2 times Instantaneous: 2 times/10S Voltage Consumption <1VA (each phase) Voltage impedance ≥300KΩ... -
Page 3: Wire Connection
Wire Connection POWER AC/DC 4～20mA 100～240V (Ub) (Uc) (Ua) SCOM Note: 1. For voltage input connection terminal,bracket terminals (Ua) (Uc) (Ub) shows 3 phase 3 wire connection method, 2. Current input is current input terminal , all the inputs and outputs must be coherent Model 2: (2pcs CT): 3 phase 3 wire working mode Model 1: (3pcs CT) 3 phase 4 wire working mode Current input... - Page 4 Page Guide In initial status, meter will come to guide page after power on . There are instantaneous parameters, energy, harmonics measurement, tariff rate kwh, energy record, event record and meter setting and display setting in guide pages .. to move cursor . Press to enter subpages accordingly.
- Page 5 Instant Electric Parameters Page Operation Process In “electrical” interface , press key to shift the page. In any pages , press to back to guide page. In the bottom of display interface , there is press key operation remind Energy Interface Operation In “...
- Page 6 Harmonic Page Operation In “electrical” interface , press key to shift the page. In any page , press to back to guide page. In the bottom of display interface , there is press key operation remind Note: This function is not available now Tariff Rate Operation In “tariff ”...
- Page 7 Record Interface Operation In “ record ” interface , press to shift the page . Press to back to guide page . In the bottom of display interface , there is press key operation remind Event Record Process In “electrical” interface , press key to shift the page.
- Page 8 Meter Parameter Set Operation Process Submenu operation in configuration setting interface to input In measuring status , press to enter into code password interface. Press to move to password cursor , press to confirm to enter configuration set interface. password , press In the interface , press to choose submenu to be operated.
- Page 9 When value is 0 , it is for remote control mode, otherwise it is for alarm mode. Please refer to table 1. mode 0 ～68 unit 1: international standard unit, K: 1000 times standard unit, M: means1000000 times standard unit. 0 ～2 value 1st alarm value setting...
- Page 10 Reference table 1: Reference table for alarm output and transmit output Parameter switch output code low alarm switch output code high alarm transmit output code 4-20mA Ua (A phase voltage) （UaL） （UaH） （Ua） Ub (B phase voltage) （UbL） （UbH） （Ub） Uc (C phase voltage) （UcL）...
- Page 11 Record Backup Operation Process Monthly report 2016-08-15 09：47：58 Daily report 2016-08-15 09：47：58 T y p e T i m e Active power 2016-08 Type Time Active power 2016-08 2 0 1 6 - 0 1 : 0 . 0 0 2 0 1 6 - 0 8 : 1 8 5 .
- Page 12 Configuration Setting Menu Function Menu Submenu Description Can modify the name of the meter , ex-factory setting is Ammeter Alias Main display interface , integrated parameters is default screen Default view Interval record time interval, default is 1second Standby time screen display rest delay time , when set as 0 , no display rest delay function , default value is 10minutes System Password modification .
- Page 13 Curve Record Operation 1. Status bar display 1. realtime curve display operation show Display interface name , data and time : means use key to shift the display interface. voltage realtime curve ① 2 0 1 2- 0 8- 1 5 09: 4 7: 58 2: real time of the record ②...
-
Page 14: Output Function
PC Software Function 1. Used to open and check the data in SD card or USB , files version type is date.EDZ or Date.files series number 2. Make history data analysis by history curve , data list, circle diagram display. 3.
