- Page 1 THE BLUE TIGER STORM MANUAL www.BlueTigerUSA.com...
- Page 4 ® Our mission is to help professional drivers be safe while traveling on the road.
- Page 5 Volume levels are measured in decibels (dB). Exposing your ears to any noise at or above 85 dB can cause gradual hearing loss. According to the Occupational Safety and Health Administration (OSHA), listening to volume levels over 100 dB for more than two hours at a time can lead to hearing loss.
-
Page 6: Table Of Contents
Table of Contents: 1. Product Overview --------------------------------------------------------------------------------------------------------------------------------------------------- 4 2. Basic Operations ---------------------------------------------------------------------------------------------------------------------------------------------------- 5 3. Bluetooth Pairing and Connection ---------------------------------------------------------------------------------------------------------------------------- 7 4. Connection with Two devices ----------------------------------------------------------------------------------------------------------------------------------- 8 5. LED Indicator --------------------------------------------------------------------------------------------------------------------------------------------------------- 9 6. Charging -------------------------------------------------------------------------------------------------------------------------------------------------------------- 10 7. TTS Tone -------------------------------------------------------------------------------------------------------------------------------------------------------------- 12 8. -
Page 7: Product Overview

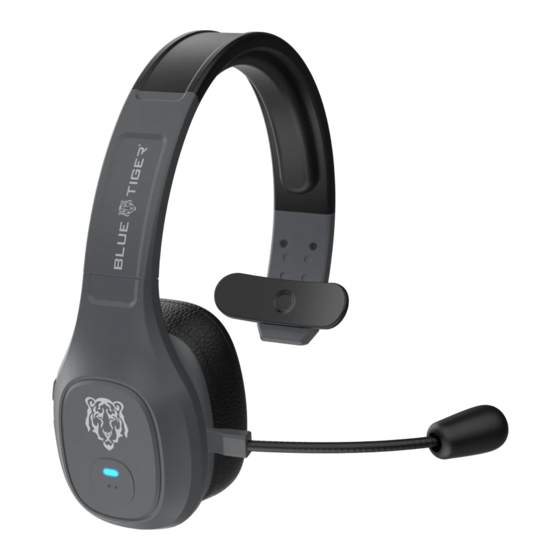

1. Product Overview: Package Contents: A. Bluetooth Mono Headset Blue Tiger Storm x1 B. USB-C Charging Cable x 1 C. Mic Windscreen x 1 D. FCC Certified DC (Vehicle Charger) x 1 E. Quick Start Guide Mute the microphone button... -
Page 8: Basic Operations
Function Operation In off status, hold MFB for 2 seconds to power on. Blue Tiger Storm will power on and enter pairing mode automatically if it does not have a pairing record . ( it will enter reconnect mode Power On automatically if it has a pairing record) In on status, hold MFB for 3 seconds to power off. - Page 9 Multi-function Press MFB for 1 second to ignore an incoming call. Reject a call Button(MFB) In the paired state, hold MFB for 2 seconds to activate Siri and Google Assistant. Activate Siri and Google Assistant Press. Volume Up Volume + Hold for 1 second.
-
Page 10: Bluetooth Pairing And Connection
D. LED changes to a Blue slow flash once connected, now you can begin using your headset. Pairing Connection Search and connect Pairing: In off status, hold MFB for 2 seconds to enter Connection: Search and click to connect pairing mode. LED will flash Blue and Red. “ Blue Tiger Storm” on your phone Bluetooth lists. -
Page 11: Connection With Two Devices
“Blue Tiger Storm”, LED changes to a Blue slow flash after connected. C. Turn on Bluetooth function of first phone, click to reconnect "Blue Tiger Storm" on Bluetooth lists. Headset is connected with two phones now. Expect up to 5 seconds to switch between music. -
Page 12: Led Indicator
5. LED Indicator: Mode LED Indicator Power on LED Blue flashes 2 seconds Power off LED Blue flashes 2 seconds Pairing mode LED Red & Blue flashes alternately Unconnected standby mode LED Blue flashes twice every 5 seconds Connected standby mode LED Blue flashes once every 10 seconds Playing Music LED Blue flashes once every 10 seconds... -
Page 13: Charging
6. Charging: Please charge the Blue Tiger Storm headset at once when the Red LED flashes. Charging time is about 1.5 hours. Solid Red LED will turn off when fully charged. Charge Connections Please connect to the Blue Tiger Storm charging port through the Type-C end of Type-C charging cable, USB end to the charger, can be used as car charger, travel charger, computer USB, etc. - Page 14 4. Charge the headset with the USB-C cable provided. 5. Charging when using headset: When your Blue Tiger Storm needs to be used for a long time, due to the limited working time of the built-in battery, it is allowed to connect the charging power supply (DC 5V ≥ 500mA, low battery or poor power quality may cause the current sound);...
-
Page 15: Tts Tone
7. TTS Tone: Power on Power on Enter pairing mode Pairing Paired successfully Paired Connected successfully Your headset is connected Disconnect Your headset is disconnected Power off Power off Microphone mute on Mute on Microphone mute off Mute off... -
Page 16: Product Specification
8. Product Specification: Bluetooth Version V5.0, Class II Bluetooth Chipset QCC3020 Frequency Range 2.402GHz-2.480GHz Operation Range Up to 100 feet Bluetooth Protocols HSP, HFP, AVRCP, A2DP CODEC Code AAC, SBC Standby Time Approx. 85 hours Working Time Approx. 32 hours (70% volume) Charging Time Approx. -
Page 17: Attention And Q & A
In pairing mode, hold the MFB and Volume - Button for 5 seconds to clear the pairing record. The indicator Blue and Red LED is on for 1 second at the same time ; that means the pairing record has been cleared, and your Blue Tiger Storm will not connect the connected device. - Page 18 F. Power off automatically. Blue Tiger Storm will power off if it does not connect any devices for over 5 minutes, or battery voltage is less than 3.1V. G. Three-way calling function operation. Incoming call during a call, press the MFB to answer the new call and hang up the current call .
- Page 19 Industry Leading Customer Support At Blue Tiger USA, we stand behind our products. We believe that our customer service does not end when we process your payment, but it continues for as long as you use our headset. One-Year Manufacturer’s Warranty (1) Blue Tiger USA warrants that your product will be free from defects in material and workmanship for one year from the date of purchase.
- Page 20 Blue Tiger USA products. (3) Blue Tiger USA obligations under this warranty are limited to repair or replacement (at our option) of any defective part returned to Blue Tiger USA at the customer’s expense.
- Page 21 Some jurisdictions do not permit the exclusion of implied warranties and the foregoing exclusions may not apply to you. (5) In no event shall Blue Tiger USA be responsible for any other damages whatsoever, including direct, indirect, special, incidental, consequential, or other damages for breach of this or any other warranty, expressed or implied.
- Page 22 FCC Compliance Statement NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product.
- Page 24 undesired operation of the device. L’émetteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2.
