- Page 1 THE ELITE ULTRA MANUAL www.BlueTigerUSA.com...
- Page 4 ® Our mission is to help professional drivers be safe while traveling on the road.
- Page 5 Volume levels are measured in decibels (dB). Exposing your ears to any noise at or above 85 dB can cause gradual hearing loss. According to the Occupational Safety and Health Administration (OSHA), listening to volume levels over 100 dB for more than two hours at a time can lead to hearing loss.
-
Page 6: Table Of Contents
Table of Contents Product Overview -------------------------------------------------------------------------------------4 Basic Operations -------------------------------------------------------------------------------------5 Pairing Instructions --------------------------------------------------------------------------------7 Pairing with Multiple Devices (Multi-Point Pairing) -------------------------------------------9 LED Indication----------------------------------------------------------------------------------------11 TTS English Prompt Tone-------------------------------------------------------------------------12 Battery Care & Charging Instructions --------------------------------------------------------- 13 Specifications-----------------------------------------------------------------------------------------15 Precautions / Questions and Answers---------------------------------------------------------16 Additional Applications-----------------------------------------------------------------------------18 Industry Leading Customer Support -----------------------------------------------------------19 One-Year Manufacturer’s Warranty ------------------------------------------------------------19 FCC Compliance Statement ---------------------------------------------------------------------22... -
Page 7: Product Overview

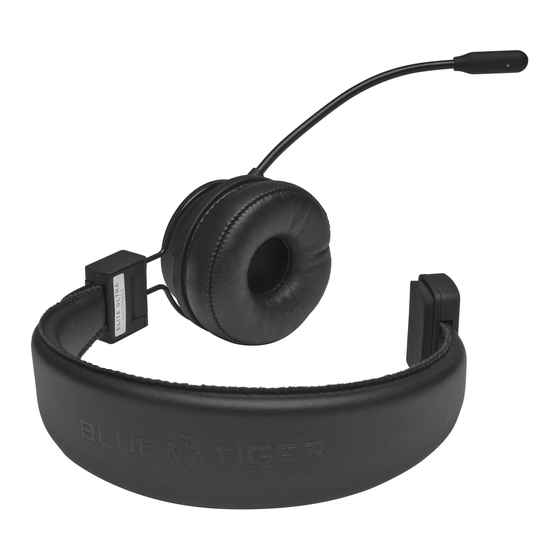

Product Overview MIC Mute Button Multi-function Button(MFB) Volume + Button Volume - Button Micro USB Charging Port... -
Page 8: Basic Operations
Operation Instruction Press MFB for 4 seconds to turn on headset. You will hear a prompt tone ‘Elite Ultra Activated’, and then a prompt tone ‘Ready to pair’. Once the Power On headset is connected to your device successfully, you will hear a prompt tone ‘Device Connected’. - Page 9 Volume Up Short press Volume + Next Song Long press for 1 second Volume Down Short press Volume - Previous Song Long press for 1 second Play / Pause Long press for 1 second Mute Button Mic Mute Double press to mute mic , then double press again to unmute mic .
-
Page 10: Pairing Instructions
Pairing Instructions A. Ensure your Blue Tiger Elite Ultra headset is in the off position. Press & hold the silver MFB button located on the microphone boom for 4 seconds. You will hear “Elite Ultra activated”, then the unit will enter into pairing mode automatically and you will hear “ready to pair”. - Page 11 Pairing Connection No more than 36” apart Searching and Connecting Long press MFB 4 seconds. Pairing mode begins when Access Bluetooth Settings on your phone to search Blue and Red LED lights flash alternately. for Elite ULTRA.
-
Page 12: Pairing With Multiple Devices (Multi-Point Pairing)
A. Pair with the first device. (Follow “Pairing Instructions” for the first device.) B. On the first device: turn off Bluetooth or disconnect from Elite Ultra. You should hear “ready to pair” in the headset. - Page 13 When connected with two mobile phones, the Elite Ultra plays music or makes calls from one device at a time, the device primarily chosen for calls or music. You may still easily alternate between the two devices in Bluetooth settings.
-
Page 14: Led Indication
LED Indication Mode LED Indication Power on Blue LED flash twice. Power off Red LED flash twice. Pairing mode Red & Blue LED flashes alternately. Connected Standby Blue LED flashes once every 10 seconds. Music Playing Mode Blue LED flashes once every 10 seconds. Talking Mode Blue LED flashes once every 10 seconds. -
Page 15: Tts English Prompt Tone
TTS English Prompt Tone Status English Prompt Tone Power on Elite Ultra Activated Power off Elite Ultra off Pairing mode Ready to pair Connected Device connected Unconnected Lost connection... -
Page 16: Battery Care & Charging Instructions
Battery Care & Charging Instructions Your Blue Tiger Elite Ultra headset uses a high-quality Lithium Polymer battery. Fully charged, it allows up to 60 hours talk time. Actual battery life between charging will vary based on your headset usage patterns. - Page 17 Micro USB Charging Cable Connect With Computer For Charging Connect With Charger For Charging Note: Please charge your Elite Ultra every 2 months at minimum (when used infrequently).
-
Page 18: Specifications
Specifications Bluetooth Specification Bluetooth V5.0 CODEC Code Supported Profile HSP, HFP, AVRCP, A2DP Chipset Solution QCC 3024 Operation Range Up to 100 feet Talk Time Up to 60 hours > 1200 hours in OFF state (or sleep mode) Standby Time >... -
Page 19: Precautions / Questions And Answers
A. Passkey: The passkey for pairing will be 0000, 8888, 1111 or 1234, depending on your mobile device. B. Which charger should be used for charging? Blue Tiger charger or power supply included in packaging, or replacement with DC 5v, 500mA. - Page 20 C. How can I reset the headset? Power on, and when in unconnected standby mode, press and hold MFB (do not release), then plug the headset to power supply to reset your headset. (Reset operation will not clear the headset's pairing list.) D.
-
Page 21: Additional Applications
Additional Applications Feel free to connect your Blue Tiger Elite Ultra to any Bluetooth enabled PC, Mac, game system or other Bluetooth enabled device to enjoy online chat or audio. Note: Certain functions may not work when paired with a laptop or PC. Example,... -
Page 22: Industry Leading Customer Support
Industry Leading Customer Support At Blue Tiger USA, we stand behind our products. We believe that our customer service does not end when we process your payment, but it continues for as long as you use our headset. One-Year Manufacturer’s Warranty (1) Blue Tiger USA warrants that your product will be free from defects in material and workmanship for one year from the date of purchase. - Page 23 Blue Tiger USA products. (3) Blue Tiger USA obligations under this warranty are limited to repair or replacement (at our option) of any defective part returned to Blue Tiger USA at the customer’s expense.
- Page 24 Some jurisdictions do not permit the exclusion of implied warranties and the foregoing exclusions may not apply to you. (5) In no event shall Blue Tiger USA be responsible for any other damages whatsoever, including direct, indirect, special, incidental, consequential, or other damages for breach of this or any other warranty, expressed or implied.
-
Page 25: Fcc Compliance Statement
FCC Compliance Statement NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 26: Ised Compliance Statement
measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. -
Page 27: Rf Exposure Compliance Statement
undesired operation of the device. L’émetteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2.
