Dorel Home Products 3264396WE Manual

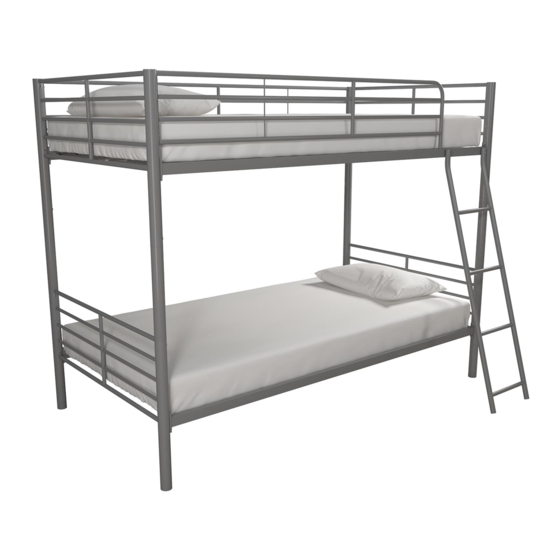

Convertible bunk bed
Hide thumbs

Advertisement

Quick Links

Download this manual

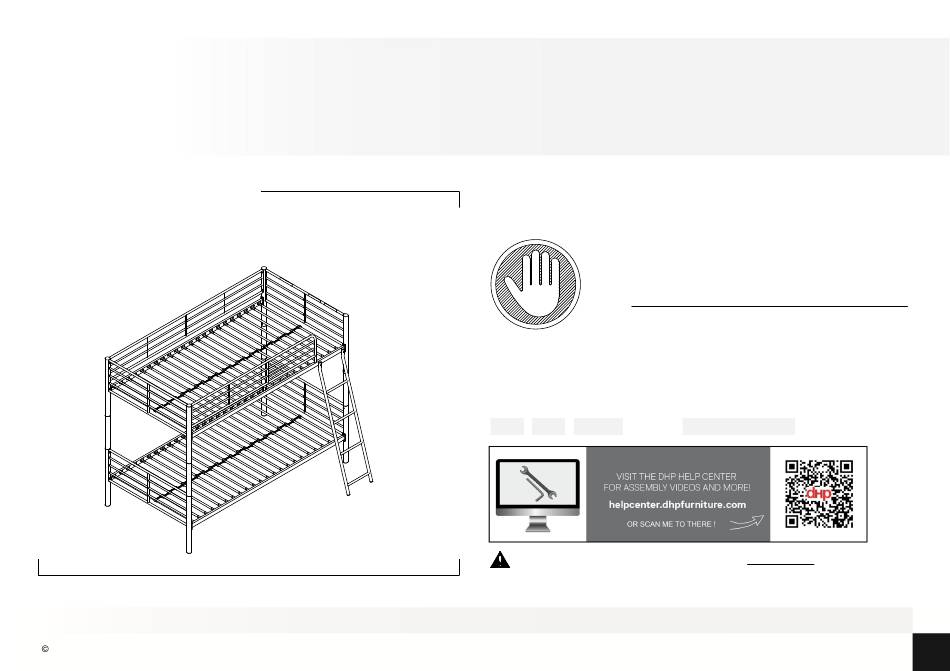

Weight Limit:
200 Lb / 91 Kg for upper bed
250 Lb / 113 Kg for lower bed
J.Z - 2018/8/2
2014 Dorel Home Products All Rights Reserved
Convertible Bunk Bed
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
3264396WE
Twin Twin
Lot Number
B343264396WE00 - 10125-M
White
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3264396WE and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products 3264396WE

Summary of Contents for Dorel Home Products 3264396WE

  • Page 1 Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B343264396WE00 - 10125-M J.Z - 2018/8/2 2014 Dorel Home Products All Rights Reserved...

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Post Post Post Post Post Check Box to identify the parts and ensure that T955330 T955350 T955360...
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Ladder Slats Post Slat Spacer Check Box to identify the parts and ensure that T955440 T922100 T955430...

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T3264196-01 1/4" X 5/8" X 30 5/16" X 3/4" X 16 1/4" X 1 5/8" 4 mm 1/4" X 2 3/8" Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 For your Safety, please ensure that the warning on E1 is oriented towards upside and inside of the bed . Attach E1 to A & C with Attach E2 to A & B with Warning label on part E1 should be oriented on the same side as rail holes!
  • Page 7 Step 2 Attach E2 to D & D1 with Repeat the same procedure for the remaining E2, D and D1.
  • Page 8 Step 3 Wide side of the slot should be facing up ! Upper Bed: Attach J to A & B and H to A & C with Ladder holes on H must be located closest to C. Upper Bed...
  • Page 9 Step 4 Wide side of the slot should be facing up ! Lower Bed: Attach J X 2 to D and D1 with Lower Bed...
  • Page 10 Step 5 Upper Bed: 5.1 Insert O into J and H as illustrated. 5.2 lock O into place with Y. Upper Bed...
  • Page 11 Step 6 Lower Bed: 6.1 Insert O into J x 2 as illustrated. 6.2 lock O into place with Y. Lower Bed...
  • Page 12 Step 7 Upper Bed: 7.1 Press W onto O as illustrated. 7.2 Press Q onto W alternating left and right as illustrated. Upper Bed...
  • Page 13 Step 8 Lower Bed: 8.1 Press W onto O as illustrated. 8.2 Press Q onto W alternating left and right as illustrated. Lower Bed...
  • Page 14 Step 9 This bed offers you 2 status of bed: Single Beds and Bunk Bed, To assemble as Single Beds: From Step 9 to Step 11. To assemble as Bunk Bed: From Step 12 to Step 15. 9.1 Press Y1 X 4 and S X 4 into A X 2, B & 9.2 Press S X 2 into H.
  • Page 15 Step 10 10.1 Screw X 6 into A X 2 & B. 10.2 Screw X 2 into H. 10.2 10.1 Upper Bed...
  • Page 16 Step 11 Press Y1 X 4 and S X 4 into D X 2 and D1 X 2. SINGLE BEDS ASSEMBLY IS DONE! Lower Bed...
  • Page 17 Step 12 To assemble as Bunk Bed: From Step 12 to Step 15. ; Attach F to 12.1 Attach E to B & A with 12.1 A with 12.2 Attach F to H with 12.2 Upper Bed...
  • Page 18 Step 13 Insert K X 4 into D X 2 & D1 X 2 with Lower Bed...
  • Page 19 Step 14 With the help of an extra hand, move Upper Bed on the top of Lower Bed, and carefully slide A X 2, B & C into K X 4, then properly tighten with...
  • Page 20 Step 15 Attach Z to H with Fully tighten all the bolts. BUNK BED ASSEMBLY IS DONE!

  • Page 21: Helpful Hints

    Helpful Hints Weight Limit: 200 Lb / 91 Kg 250 Lb / 113 Kg Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. Some parts have been pre-assembled for this item.
  • Page 22 WARNINGS for Bunk Bed Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed. Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls. Use only a twin mattress which is 74"-75"...
  • Page 23 3264396WE NO LO REGRESE A LA TIENDA ! Si le faltan piezas o las que se incluyen est n da adas, con Convertible Bunk Bed mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Individual/Individual Visite www.dhpfurniture.com/spa/replacement-parts Blanco...
  • Page 24 Partes Instrucciones Paso 1 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts Una E1 con A & C con Una E2 con A & B con Todo se incluye en 1 caja grande! Paso 2 Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para Una E2 con D &...
  • Page 25 Instrucciones L mites de peso: 200 lbs / 91 kgs en la cama superior; 250 lbs / 113 kgs en la cama inferior. Paso 12 12.1 Una E con B y A usando Precauc on Una F con A usando Siga la informaci n sobre las advertencias que aparecen en el extremo superior 12.2 Una F con H usando de la litera y en el empaque.

  • Page 26: Avant De Commencer L'assemblage

    3264396WE NE RETOURNEZ PAS AU MAGASIN ! Si une pi ce est manquante ou endommag e, nous vous Convertible Bunk Bed exp dierons avec plaisir vos pi ces de remplacement gratuitement. Lit une place/Lit une place Visitez www.dhpfurniture.com/fre/replacement-parts Blanc ou appelez au 1-800-267-1739...
  • Page 27 Pi ces Instructions tape 1 Pi ces de rechange, visitez www.dhpfurniture/fre/replacement-parts Attacher E1 A et C avec Attacher E2 B et A avec Tout dans 1 grosse bo te! tape 2 Il y a des bo tes int rieures qui contiennent les composants pour completer Attacher E2 D et D1 avec l'assemblage.

  • Page 28: Conseils Utiles

    Limite de Poids: 200 lbs / 91 kgs sur le lit sup rieur; 250 lbs / 113 kgs sur le lit Instructions inf rieur. tape 12 Avertissement 12.1 Attacher E B et A avec Attacher F A avec Suivre les informations indiqu es sur les avertissements paraissant au bout de 12.2 Attacher F H avec la structure du lit superpos et sur la bo te.
