Weight Limits: 400 Lbs / 181 kgs
WARNING FOR YOUNG CHILDREN - This product contains small components, please ensure that they are kept away from small children. Children under
the age of 6, small infants and babies must not sleep on this bed for safety reasons. To prevent injury and damage to this unit, PROHIBIT jumping on it.
This product is designed for home use and not intended for commercial use.
Recommended # of people needed for assembly 2, (however it is always better to have an extra hand.) Estimated assembly time is 1.5 hours.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
5544196

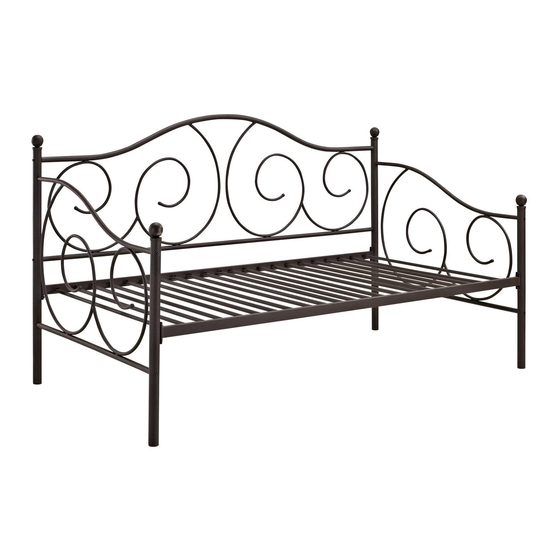

Victoria Metal Daybed TWIN
DO NOT RETURN PRODUCT TO THE
STORE
STOP
Individual stores do not stock parts.
If a part is missing or damaged, call our
toll-free customer service line. We will gladly
ship your replacement parts FREE of charge.
1-800-267-1739
Need Parts or Assistance?
or access our website
www.dhpfurniture.com
For prompt, reliable service; please have your assembly
manual ready.
Date of Purchase
___ / ___ / ___
Lot Number
_________
B34554419601-10125-M
Bronze
Advertisement
Table of Contents
Related Manuals for Dorel Home Products Victoria Metal Daybed 5544196
Summary of Contents for Dorel Home Products Victoria Metal Daybed 5544196
- Page 1 5544196 Victoria Metal Daybed TWIN Bronze Weight Limits: 400 Lbs / 181 kgs DO NOT RETURN PRODUCT TO THE STORE STOP Individual stores do not stock parts. If a part is missing or damaged, call our toll-free customer service line. We will gladly ship your replacement parts FREE of charge.
- Page 2 Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and Canada. READ BEFORE BEGINNING ASSEMBLY HELPFUL HINTS - Read each step carefully. It is very important that each step of instruction is - Call our toll free number if you need assistance. performed in the correct order.
- Page 3 3 / 19...
- Page 4 PARTS SLATS FRONT/REAR RAIL T929520 T929500 POST 04 POST 01 POST 02 POST 03 REAR GUARD RAIL T918460 T918430 T918440 T918450 T918470 BALL T918500 SIDE GUARD RAIL T918490 END CAP T392480 NOTE:"Y1" has been pre-assembled on "A/B/C/D", it is available for replacement. 4 / 19...
- Page 5 HARDWARE PACK CURVED WASHER X 12 BOLT BOLT 1/4" X 3/4'' 5/16"X3/4" BOLT HEX KEY 1/4" X 2 3/16" T5544196-00 NOTE: Please do not completely tighten any hardware, until the entire assembly is complete.Once completed, please be sure to properly tighten all the hardware. 5 / 19...
- Page 6 Attach (T) to (A, B) with CURVED WASHER(4) and BOLT (1); Attach another (T) to (C, D) with CURVED WASHER(4) and BOLT (1). 6 / 19...
- Page 7 2.1 Attach (J) to (A,D) (B,C) with BOLT (2). 2.2 Attach (E) to (B, C) with CURVED WASHER(4) and BOLT (3). Please Note: Wide side of the slot should be facing up ! 7 / 19...
- Page 8 Insert (O) into (J) as illustrated, lock (O) into place with (Y). 8 / 19...
- Page 9 4.1 Press (W) onto (O) as illustrated. 4.2/4.3 Press (Q) onto (W) alternating left and right. 9 / 19...
- Page 10 Attach (S) to (A, B, C, D). 10 / 19...
- Page 11 WARNING DO NOT REMOVE WARNING LABEL FROM BED THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED FOR A POSTURE BOARD OR BOXSPRING. ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
- Page 12 Limites Del Peso: 400Lbs/181Kgs 5544196 NO REGRESAS ESTA PRODUCTO A LA TIENDA ALTO Las tiendas no tiene partes. Si falta partes o las partes esten danados llame gratis a la servicio del cliente. Con gusto mandarnos las partes. Sin alguno carga. Nesacitas partes o Asistancia? o visitar la pagina del internet www.dhpfurniture.com Para servicio mas rapido y reliable por favor tenga esta manual listo.
- Page 13 A) Poste 01 - T918430 - CANTIDAD: 1 B) Poste 02 - T918440 - CANTIDAD: 1 C) Poste 03 - T918450 - CANTIDAD: 1 D) Poste 04 - T918460 - CANTIDAD: 1 E) Barandal trasero - T918470 - CANTIDAD: 1 J) Barandal delantero/trasero - T 929500 - CANTIDAD: 2 O) Tubos - T 929520 - CANTIDAD: 22 S) Perilla - T918500 - CANTIDAD: 4...
- Page 14 14 / 19...
- Page 15 Visite www.dhpfurniture.com LEER ANTES DE COMENZAR A ENSAMBLAR - Lea cada paso cuidadosamente antes de empezar. Es muy importante que cada paso de este manual sea realizado en el orden indicado. De lo contrario, puede tener dificultades con el ensamblaje. - Mueva su nuevo mobiliario cuidadosamente, se recomienda que dos personas ayuden a levantarlo y transportarlo.
- Page 16 Limites de poids: 400Lbs/181Kgs 5544196 NE PAS RETOURNER LE PRODUIT AU MAGASIN ATTENTION 1-800-267-1739 www.dhpfurniture.com Pour un service rapide et fiable, ayez svp votre guide d'assemblage en main Date d'achat ___ / ___ / ___ _________ AVERTISSEMENT : qu'elles sont tenues avec ce lit, il est interdit de sauter au-dessus.
- Page 17 PAGE 04 PAGE 05 1) BOULON 1/4'' x 3/4'' 2) BOULON 5/16'' x 3/4'' 3) BOULON 1/4'' x 2 3/16'' EMBALLAGE BLISTER: T5544196-00 PAGE 06 Attacher autre PAGE 07 PAGE 08 Inserez (O) dans (J), verrouiller (O) en place avec (Y). PAGE 09 4.1 Puis pousser (W) dans (O).
- Page 18 18 / 19...
- Page 19 Visitez www.dhpfurniture.com AVANT DE COMMENCER L'ASSEMBLAGE LES CONSEILS UTILES frais. l'assemblage. personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Informations sur la garantie Visitez notre siteweb: www.dhpfurniture.com 410E, First Street South, Wright City, MO 63390 , USA Attention: Consumer Service.
