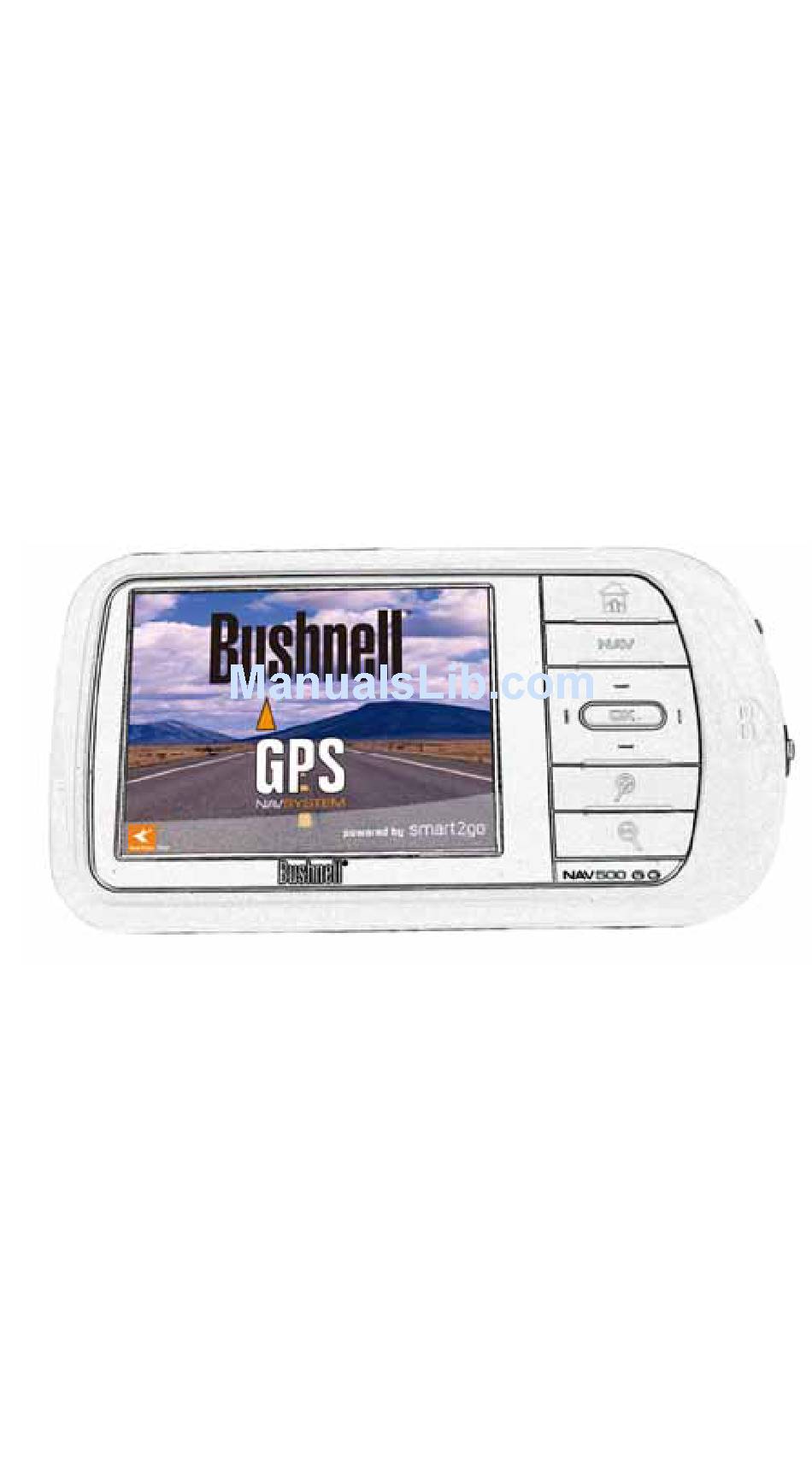

BUSHNELL

NAV500

User Guide

Model Number: Bushnell NAV500
Congratulations on your purchase of the NAV500. Not only can you use
your NAV500 as an in-car navigation system, you can also use it as an
MP3 player and a photo album viewer.
Please read through the following manual carefully in order to use your
NAV500 correctly.

Advertisement

Table of Contents
loading

Related Manuals for Bushnell NAV500

Summary of Contents for Bushnell NAV500

  • Page 1: Bushnell

    Model Number: Bushnell NAV500 Congratulations on your purchase of the NAV500. Not only can you use your NAV500 as an in-car navigation system, you can also use it as an MP3 player and a photo album viewer. Please read through the following manual carefully in order to use your...

  • Page 2: Table Of Contents

    BUSHNELL ... 1 NAV500 ... 1 User Guide... 1 Contents...2 DESCRIPTION OF BUTTONS, ETC... 3 ACCESSING THE NAVIGATOR FUNCTION... 5 MP3 PLAYER ... 6 Mp3 player button definitions...7 Playing music ...7 Adjusting the volume ...8 Changing the order of tracks ...8 Repeating tracks ...8...

  • Page 3: Description Of Buttons, Etc

    DESCRIPTION OF BUTTONS, ETC. FRONT VIEW Touch screen TOP VIEW Headphone/Socket BOTTOM VIEW Software reset button Hardware reset switch GPS signal indicator Power indicator SD card slot Main Menu Navigator Directional /OK keys Zoom in Zoom out...
  • Page 4 SIDE VIEWS External antenna connector connector External power connector BACK VIEW Foldable GPS Antenna Stylus on/off...

  • Page 5: Accessing The Navigator Function

    ACCESSING THE NAVIGATOR FUNCTION Switch the unit on and tap Navigator in the Main Menu screen. Alternatively, you can use the directional keys to highlight Navigator and then press the OK key. After the application loads the main Navigator menu will appear. For more information regarding the Navigator function please see the Navigator Manual.

  • Page 6: Mp3 Player

    MP3 PLAYER Playing music on your NAV500 couldn’t be easier. Switch the unit on and tap MP3 in the Main Menu screen. Alternatively, you can use the directional keys to highlight MP3 and then press the OK key. The MP3 screen will now appear in the display: NOTE: Music must be loaded to the SD memory card from your computer.

  • Page 7: Mp3 Player Button Definitions

    Mp3 player button definitions The MP3 Player Buttons are defined as follows: Sequence/random indicator Volume indicator Decrease volume Increase volume Rewind Playing music While on the MP3 screen, press the Play button listening to music. To pause music, press the Pause To stop listening to music, press the Stop button To skip to the next track, press the Fast forward button To go to the beginning of the current track or skip back to the...

  • Page 8: Adjusting The Volume

    Adjusting the volume To adjust the volume, press the Increase volume or Decrease volume buttons. Changing the order of tracks To choose between playing tracks in sequential order or random order, press the Select sequence /random button. The current order is indicated in the top left-hand side of the screen.

  • Page 9: Creating A Play List

    Creating a play list Press the Play list button The Play list screen will now appear in the display NOTE: By default, all tracks in the My Music folder of the Memory Card are added to the play list. To remove ALL tracks from the play list, press the Remove all tracks button.
  • Page 10 PHOTO ALBUM You can view individual photos or slideshows on your NAV500. Switch the unit on and tap Photo Album in the Main Menu screen. Alternatively, you can use the directional keys to highlight Photo Album and then press the OK key.

  • Page 11: Viewing Photos

    Viewing photos If you cannot see photo thumbnails, but instead see folders (as in the above image), then you can click these to access their contents (as in the image below). You can also scroll up or down to search up or down the list of folders or photos.

  • Page 12: Using The Slideshow

    You will see several options at the bottom of the screen, which are defined as follows: - Go to previous photo - Go to next photo - Zoom in (You can also use the zoom in key) - Zoom out (You can also use the zoom out key) - View photo at default rotation - View photo at 90°...

  • Page 13: Setup

    SETUP To access the Setup feature on your NAV500: Switch the unit on and tap Setup in the Main Menu screen. The Setup screen will now appear in the display: From this screen you can set: Clock – Set the time/date Volume –...

  • Page 14: Setting The Time/Date

    Setting the time/date Choose Clock from the Setup screen. The Clock screen will now appear in the display: Choose the Time Zone from the drop-down list. You can use either the touch screen or the directional keys to do this. To enter the Date and Time, highlight the item you wish to change and then use the up/down directional keys to increase or decrease their values.

  • Page 15: Setting The Volume

    Setting the volume Choose Volume from the Setup screen. The Volume screen will now appear in the display: Click the + or – buttons to increase or decrease the volume. Alternatively, you can use the right/left directional keys to increase or decrease the volume.

  • Page 16: Brightness Options

    Brightness options Choose Brightness from the Setup screen. The Screen will now appear in the display: Calibrating the touch screen Click Calibration. The Calibration screen will now appear in the display. You will be asked to go through a number of simple steps to calibrate the screen.

  • Page 17: Adjusting The Brightness

    Adjusting the brightness To adjust the brightness, click the + or – buttons Alternatively, you can use the right/left directional keys to highlight Brightness, and then to increase or decrease the brightness. Once you have finished, press the OK button. Setting the Idle Time The idle time feature will automatically switch off the display following a period of inactivity.

  • Page 18: Choosing The Language

    Choosing the language Choose Language from the Setup screen. The Language screen will now appear in the display: Click the right/left arrow buttons or use the right/left directional keys to choose a language from the list. Once you have finished, press the OK button.

  • Page 19: Info

    Info Choose Info from the Setup screen. The System Info screen will now appear in the display: Here you can see your device’s serial number, OS version and Boot- loader version. The GPS Always On option is checked by default. This will keep the GPS module running and the blue signal indicator blinking when the navigator is launched and after it is closed.

  • Page 20: Downloading Files To The Memory Card

    USB to your PC. You need to have Microsoft Active Sync (supplied on CD) installed first. Simply connect the USB cable from the NAV500 to a spare USB port on your computer. Turn the NAV500 on. Active Sync will detect your Nav500 device and will prompt you to select a method of synchronizing, you can select ‘Guest mode’.

  • Page 21: Care And Maintenace

    Do not allow the NAV500 to get wet. Avoid shocks or vibrations. Only use the supplied stylus with the touch screen. Do not open your NAV500. Any attempts to open this device will void the warranty. Wipe the touch screen only with a lint-free cloth, slightly dampened, while the device is switched off.
  • Page 22 All map data sources contain some level of inaccuracies or incomplete data. Bushnell strives to provide the most recent map information at a reasonable cost.
  • Page 23 FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 24 3. New Memory Card doesn’t work or files have been deleted from my original Memory Card. • Format card (only if new), then copy and paste files/folders from within the Memory Card folder on the NAV500 CD to your Memory Card.

  • Page 25: Design Limitations

    To do a hardware reset, slide the hardware reset switch to the opposite position, then return it to its original position. 5. I cannot play my music on the NAV500. • Make sure that all music is MP3, WMA, or WAV format.
  • Page 26 connected again, the LED will remain orange for approximately 30 minutes before changing to green. Before first use, the device needs to be charged for at least 8 hours. Before first use, please make sure that the hardware reset switch is in the correct position.
