Summary of Contents for Aqua Pulse Spas Miami Classic Spa
- Page 1 CONTACT DETAILS EMAIL: sales@aquapulsespas.com.au WEB: www.aquapulsespas.com.au PHONE: (07) 3208 4625 Miami Classic Spa USER MANUAL...
- Page 2 Draining the spa – using the drain fitting Turning jets on & off Waterfall control handle Air control handle Main diverter handle 10-11 Operating your Miami Classic Spa Setting the time Setting the cycle cleaning Setting the cycle heating Turning on the heater manually – maintaining heat...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your physiological response to hot water is very subjective and depends on your age, health and medical history. If you don’t know your tolerance to hot water or experience dizziness, headaches or nausea you should exit the spa immediately and cool down. WARNINGS Children in and around the spa should be supervised at all times by a responsible adult. -
Page 4: Water Supply
HYPERTHERMIA Since your spa can be set to reach temperatures of 40°C (104°F) users should be aware that extended submersion in water that exceeds normal body temperature can lead to hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches several degrees above the normal body temperature of 37°C (98.6°F). -
Page 5: Electrical Safety
You will need a suitable electrical supply to run the spa. The Miami Classic Spa requires a 10Amp Residual Current Device Protected Dedicated Power Connection. Your Licenced Electrical Contractor can hardwire the spa straight to the meter box in your house or they can install a 10Amp residual current device protected dedicated single power plug. -
Page 6: Important Usage Warnings - Non Warranty Faults
IMPORTANT USAGE WARNINGS – NON WARRANTY FAULTS Spas are extremely delicate products and require regular maintenance. Below we will list a number of common causes of problems which are not covered under this warranty. Should we ever need to visit you to repair your spa you will be charged the full cost of a repair if we found that the cause was the result of poor maintenance or customer negligence. - Page 7 adjustments you need to make using our how to balance the water instructions. You do need to be careful to not just apply the amounts of chemical that they tell you to apply. The reason for this is that they might set the parameters differently to what your spa requires.
- Page 8 FILLING YOUR SPA WITH WATER – AVOIDING AIR LOCKS The correct way to fill your spa with water is to remove the spas filter and place your hose inside the filter box. Be sure to remove the fitting off the hose to prevent it from falling into the spas plumbing. Placing the hose inside the spas main seating area may cause a build-up of air inside the plumbing creating an air lock.
- Page 9 An empty or partially empty spa of water during sunlight hours can cause deforming, melting, crazing, discolouration, blisters or holes in the spa’s fiberglass, acrylic and fittings, this can happen within minutes of the spa being emptied or partially empty. Your warranty does not cover deforming, melting, crazing, discolouration, blisters or holes in the spa’s acrylic and fittings, so it is especially important your hardcover is on the spa when not in use and the spa is filled with water at all times during daylight hours.
- Page 10 OPERATING YOUR MIAMI CLASSIC SPA • Your spa has two modes of operation, Standby and Active modes. • To switch between Standby and Active modes press • The spa will display ‘---’ to indicate that the spa is in Standby mode.
- Page 11 OPERATING YOUR MIAMI CLASSIC SPA BUTTON FUNCTION MODE Turns on Water Jets 1 Active Mode Only No Function Active Mode Only No Function Active Mode Only No Function Active Mode Only Turns on Heater for Manual Active Mode Only Heating...
-
Page 12: Setting The Time
SETTING THE TIME When turning on the spa for the first time you will need to set the clock time. To set the clock time the spa must be in Standby mode. Please ensure the spa is in Standby Mode (---). The three horizontal dashes must be displayed. The hour and minutes will begin to flash on the display. - Page 13 SETTING THE CYCLE HEATING Use the preheating function at the same time you run your cleaning cycle. Ensure the spa is in Standby Mode (---) Press (Use the same time set for the cleaning cycle). To adjust the time, press the buttons.
-
Page 14: Frost Prevention System
TURNING ON THE HEATER MANUALLY- MAINTAINING HEAT Ensure the spa is in Active Mode. Press the button to adjust the temperature to the desired temperature. Press this button to turn on the heater manually. You will see the word heat flashing on the touchpad, once the heat word goes solid and stops flashing the spa is heating. -
Page 15: Troubleshooting
TROUBLESHOOTING Symptoms Possible Cause(s) Possible Resolutions No Power MCB Switch off Check MCB Inadequate wiring of power to spa Consult electrician Fuse blown in control box Replace fuse RCD Tripped Reset RCD Connected Improperly Consult electrician No Circulation Impeller clogged Access and clean Water level too low Top up water...
Need help?
Do you have a question about the Miami Classic Spa and is the answer not in the manual?
Questions and answers

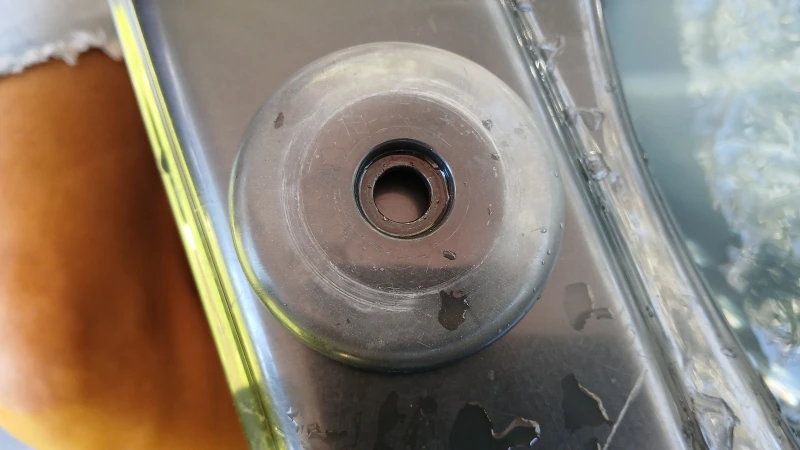

On a miami classic oasis spare we need replacement hand controls we need 2 images attached
