Mosmatic LU-W Assembly Instructions

LU-W 2"
No. 60.958
Assembly instructions
4" 5' 8"
a
180°
b

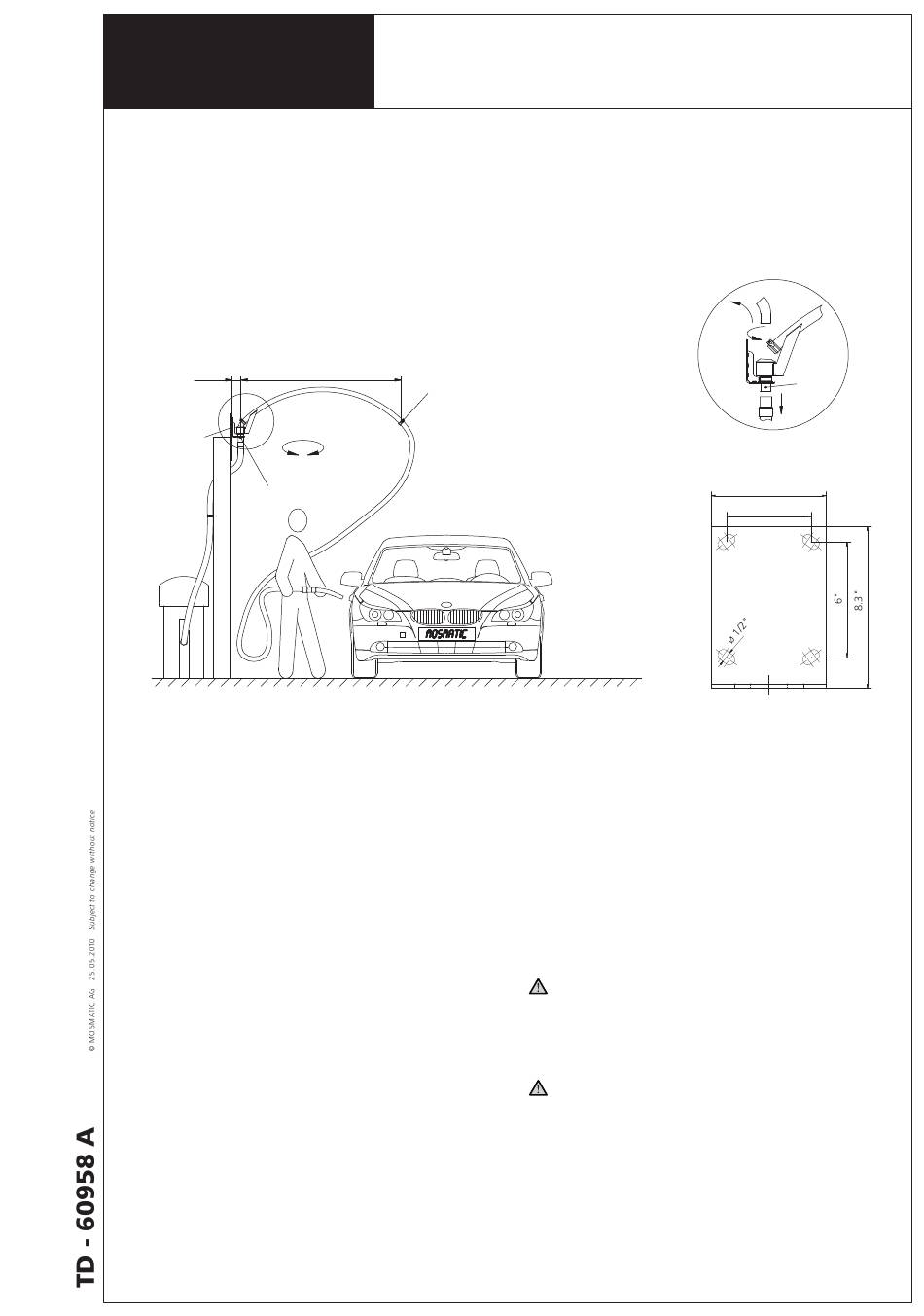

Wall installation
1. Install the Airsystem boom with the mounting plate (a) to the
concrete wall or the steel beam.
Attention: bearable hole load (e.g.: bolt 1/2") at least
30'000N
2. Connect the vacuum hose of the stationary vacuum cleaner to the
vacuum port (b / 2") of the boom arm.
3. Connect the vacuum hose to the tube of the boom arm. Secure
with the pipe clamp (c).
Airsystem-Boom Wall mount
c
Maintenance
To avoid clogging of the airsystem boom, we recomended
regular cleaning. Remove the elbow-90° (see detail drawing X
above).
For your own safety
- Read all instructions before the initial operation. Check their
proper condition and that they operate safely.
- Our products should only be installed by experienced users of
high pressure equipment.
- Safety regulations and guidelines (Accident Prevention Rules)
from the manufacturer of vacuum cleaners are applicable.
- No modifications to the unit are permitted.
X
b
Mounting plate
6"
4.3"
