ADTRAN TA 351 Manual

Product P/N: 1187777G1
D
ESCRIPTION
The Total Access 3XX ONT Mounting Bracket is used to install
®
an Electronics Module indoors in an unrestricted access location.
It is critical that the Electronics Module remain closed. This Job
Aid provides instruction for installing screws to prevent the
Electronics Module from being opened. This Job Aid also
provides instructions for mounting the ONT Mounting Bracket.

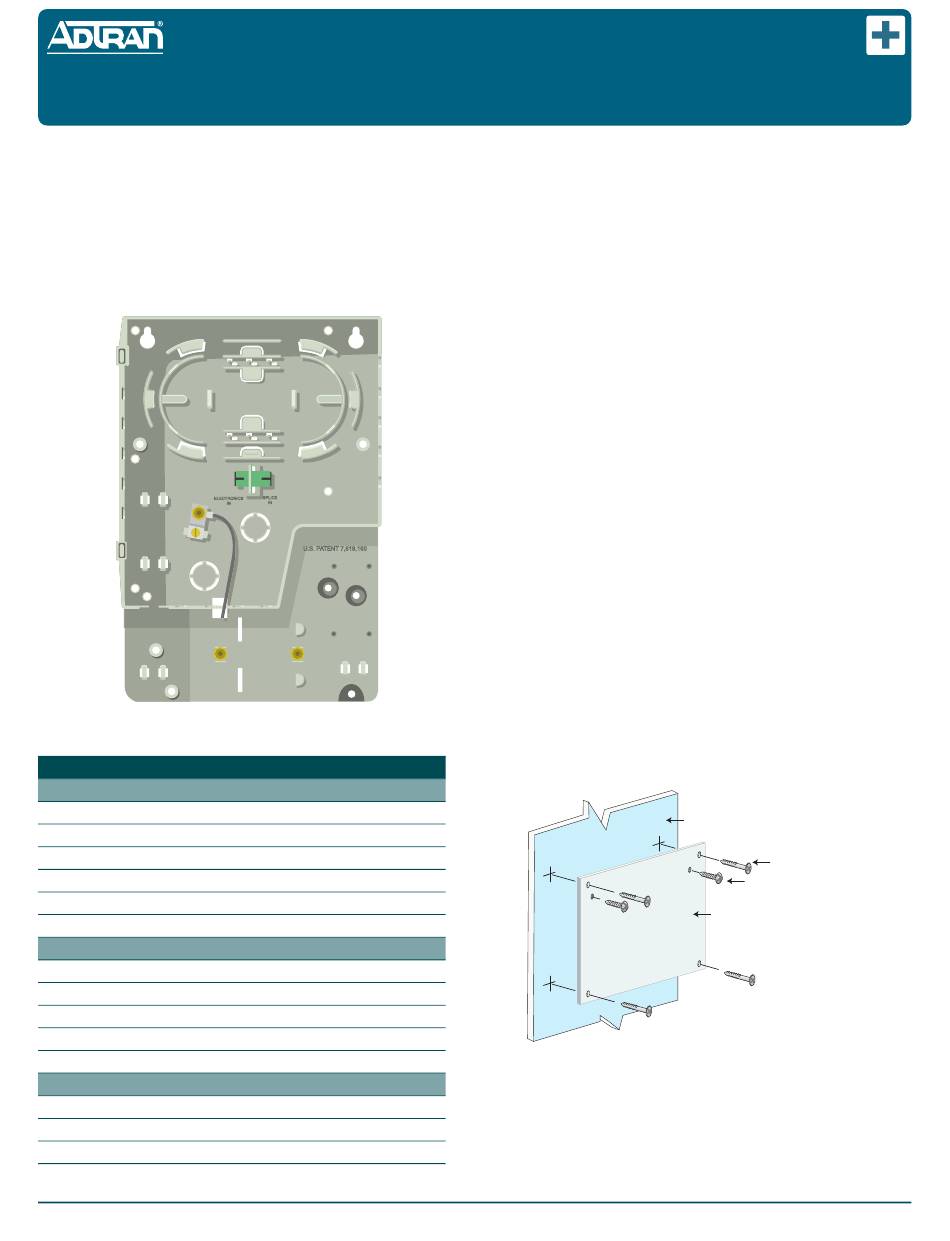

The Total Access 3XX ONT Mounting Bracket, pictured above, is
used to mount any of the ONTs listed in the following table.
ONT
1st Generation
TA 351
TA 352
TA 361
TA 362
TA 362S
TA 362R
2nd Generation
TA 351
TA 352
TA 361
TA 362
TA 362R
TA 354E
TA 352H
TA 362H
ONT Mounting Bracket
Indoor Unrestricted Access
Part Number
1187701G1
1187702G1
1187711G1
1187712G1
1187712G2
1187715G1
1287701G1
1287702G1
1287711G1
1287712G1
1287715G1
Misc.
1287704G1
1287702G3
1287712G3
TA 3XX
I
NSTALLATION
After unpacking the 1187777G1, inspect it for damage. If damage
is noted, file a claim with the carrier and then contact ADTRAN.
For more information, refer to the warranty.
Required Tools and Supplies
Standard technician tools and those listed below are required for
installing the 1187777G1:
•
RJ45 Crimper
•
Carpenter's level
•
3/32" (0.24 cm) screw driver
•
Electric Drill and assorted bits
•
5/32" (0.4 cm) hex tamper proof bit
Included with the 1187777G1 packaging is a plastic bag
(P/N 3356046) that contains #6 Pan Head screws (4 ea) used to
mount the ONT Mounting Bracket. The remaining contents of
P/N 3356046 will be used to secure the Electronics Module.
Wall Preparation
The ONT Mounting Bracket is used to mount the Electronics
Module. To prepare the wall to accept the Mounting Bracket, use
the illustration below and complete the following steps:
1. Attach a 3/4 inch (1.9 cm) Mounting Board (typically ply-
wood) to the wall studs using four, 2.5 inch (6.35 cm) (or
greater) wood screws.
2. Use the keyholes on the top of the ONT Mounting Bracket as
location markers and install two #6 Pan Head screws. Leave
approximately 1/16 inch (0.16 cm) protruding from the
mounting surface.
3. Slide the ONT Mounting Bracket over the Pan Head screws
and exert a small amount of downward pressure to ensure
the top of the slots rest on the shafts of the Pan Head screws.
jobAid
Issue Date: March 2012
Document P/N: 61187777G1-22A
Wall
Wood Screws (4 ea)
Pan Head Screws (2 ea)
Mounting Board
1
