Instructions

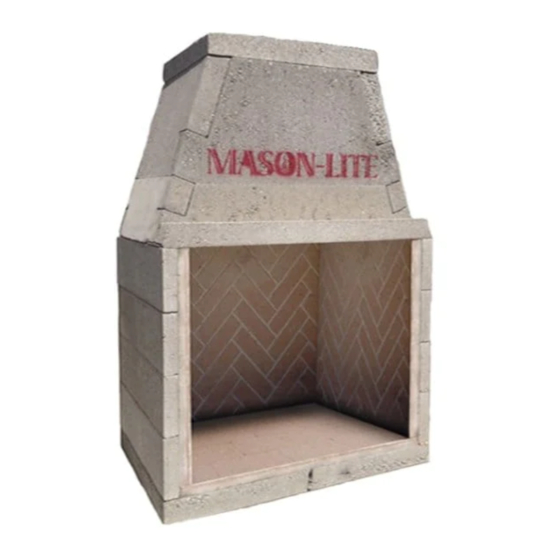

Masonry Firebox
MODELS MM33, MM39, MM44, MM49 AND MM63
IF FIREPLACE IS TO BE INSTALLED DIRECTLY ON ANY COMBUSTIBLE MATERIAL, A METAL BASE
IS REQUIRED.
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance,
it also contains information that will enable you to obtain replacement parts or accessory items
when needed. Keep it with your other important papers.
to ANS Z21.60 or Z21.84 standards. It has not been tested or approved for unvented gas logs.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Refer to this manual for correct installation and operational procedures. For as-
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
08-154
t N
For more information, visit www.fmiproducts.com
Advertisement
Related Manuals for FMI MM33
Summary of Contents for FMI MM33
- Page 1 All manuals and user guides at all-guides.com Instructions Masonry Firebox MODELS MM33, MM39, MM44, MM49 AND MM63 IF FIREPLACE IS TO BE INSTALLED DIRECTLY ON ANY COMBUSTIBLE MATERIAL, A METAL BASE IS REQUIRED. SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed.
- Page 2 TABLE OF CONTENTS All manuals and user guides at all-guides.com Venting Installation SAFETY IMPORTANT: Check local codes before install- substitute for a furnace to heat an entire home. Use for supplemental heat only. FOR YOUR SAFETY mable vapors or liquids in the vicinity of this or any other appliance.
- Page 3 SAFETY All manuals and user guides at all-guides.com Continued DO NOT USE OR STORE GASOLINE OR OTHER WARNING: THIS FIREPLACE HAS NOT BEEN FLAMMABLE LIQUIDS OR GASES IN OR NEAR TESTED FOR USE WITH AN UNVENTED GAS THE FIREPLACE! LOG SET. TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT INSTALL AN UNVENTED GAS ATTENTION LOG SET INTO FIREPLACE.
- Page 4 SECTION A-A Ø4" OUTSIDE AIR ACCESS CAN BE INSTALLED 22" ON THE LEFT SIDE ALSO 4 ½" 30 ½" 24 ½" Figure 1: MM33 Fireplace Overall Dimensions SECTION A-A OUTSIDE COMBUSTION AIR ACCESS HOLE Figure 2: MM63 Fireplace Overall Dimensions www.fmiproducts.com...
- Page 5 SPECIFICATIONS All manuals and user guides at all-guides.com Continued Ø F SECTION H-H Figure 3: MM39/44/49 Fireplace Overall Dimensions www.fmiproducts.com...
- Page 6 PRODUCT OVERVIEW All manuals and user guides at all-guides.com INTRODUCTION Internal Wall Corner Installation Installation PRODUCT OVERVIEW Installation Installation Figure 4: Typical Installations The Four Components of the Grand Meridian Fireplace: ATTENTION IMPORTANT ATTENTION Consult Optional Outside Air Kit www.fmiproducts.com...
- Page 7 PRE-INSTALLATION PREPARATION All manuals and user guides at all-guides.com SELECTING LOCATION WARNING: Do not pack required air spaces with insulation or other materials. Minimum/Maximum Chimney Height for Residential Installation Optional Outside Air Kit MINIMUM CLEARANCE TO COMBUSTIBLES FRAMING Maintain the following clearances: Figure 5: Mantel Clearances to Combustible Material www.fmiproducts.com...
- Page 8 PRE-INSTALLATION PREPARATION All manuals and user guides at all-guides.com Continued WARNING: Failure to position the parts in accordance with these diagrams or failure to use only Condition Dim. H** Figure 6: Framing Dimensions for Combustible Floor Systems Figure 7: Framing Dimensions for Non-Combustible Floor Systems www.fmiproducts.com...
- Page 9 PRE-INSTALLATION PREPARATION All manuals and user guides at all-guides.com Continued 2” MIN 2” MIN NON-COMBUSTIBLE FACING MATERIAL NON-COMBUSTIBLE HEARTH EXTENSION * 8” 8” 1’-0” 1’-0” Figure 8: Corner Installation for Combustible Floor Systems 8” 8” 1’-0” 1’-0” Figure 9: Top View for Combustible Floor Systems www.fmiproducts.com...
- Page 10 PRE-INSTALLATION PREPARATION All manuals and user guides at all-guides.com Continued MANTEL AND MANTEL SHELF CLEARANCES ATTENTION: ATTENTION: NOTE: It is required that ember protector strips must These are included with the Metal Base accessory. WARNING: Hearth extension is to be installed only as shown in Figure 10.
- Page 11 PRE-INSTALLATION PREPARATION All manuals and user guides at all-guides.com Continued Figure 11: Non Combustible Floor Figure 12: Combustible Floor www.fmiproducts.com...
- Page 12 VENTING INSTALLATION All manuals and user guides at all-guides.com OPTIONAL OUTSIDE AIR KIT (MODEL MM4AK) Bushes Installation Figure 13 - Outside Air Kit Venting CAUTION: Combustion air inlet ducts shall not terminate in attic space. The maximum height for the air vent can not termination.
- Page 13 VENTING INSTALLATION All manuals and user guides at all-guides.com Continued LINEAL GAIN PART NO. DESCRIPTION GAIN CHIMNEY PIPE WARNING: The opening in the collar around be obstructed. Never use blown insulation to Figure 14 - Lineal Gain www.fmiproducts.com...
- Page 14 VENTING INSTALLATION All manuals and user guides at all-guides.com Continued ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY SYSTEM Figure 15 - Elbow Offset USING ELBOW OFFSETS (30E-12DM) OFFSET RISE CHIMNEY LENGTH 12" 18" 24" 36" 48" Detail B OFFSET CHART (22-50 FT. SYSTEM HEIGHT) Figure 16 - Ceiling Support Pipe 12S-12DM www.fmiproducts.com...
- Page 15 VENTING INSTALLATION All manuals and user guides at all-guides.com Continued PENETRATING ROOF Return Return Elbow Elbow Return Elbow Elbow Elbow 6' Max. 6' Max. Return Return 6' Max. Elbow Elbow 6' Max. Elbow Elbow 6' Max. 6' Max. Elbow Figure 17 - Typical Offset Terminations FIRESTOP SPACERS (FS-10) 19.5"...
- Page 16 VENTING INSTALLATION All manuals and user guides at all-guides.com Continued FLASHING INSTALLATION (V6F-10DM OR TERMINATIONS/SPARK ARRESTOR V12F-10DM) CAUTION: Do not seal openings on the rooftop provided with the termination being used. Installing Flashing on a Metal Roof Collar Cone Collar Figure 23 - Termination Figure 21 - Flashing Installation CHASE INSTALLATIONS...
- Page 17 VENTING INSTALLATION All manuals and user guides at all-guides.com Continued FINISHING FIREPLACE MASONRY (PRECAST) CHIMNEY Figure 24 - Multiple Chase Installation 10 FOOT RULE cessories Figure 25 - 10 Foot Rule OPTIONAL GAS LINE INSTALLATION OPTIONAL ELECTRICAL CONNECTION INSTALLATION www.fmiproducts.com...
- Page 18 SUPPORTING FLOOR SYSTEM INSTALLATION All manuals and user guides at all-guides.com WARNING to the licensed design professional and/or building contractor: It is your responsibility to be certain that the Grand Meridian can be REBAR LOCATIONS WOOD FLOOR CRAWL SPACE OR UPPER FLOOR: Metal Base Assembly EXAMPLE ONLY...
- Page 19 Example Only Strong-Tie A-35 or equivalent Example Only Figure 27 - Floor Joist Installation Figure 28 - Floor Joist Installation WEIGHT DETERMINATION Table I MM33 MM39 MM44 MM49 MM63 Other Weight Considerations: Table II - Construction S or W D +L...
- Page 20 SUPPORTING FLOOR SYSTEMS INSTALLATION All manuals and user guides at all-guides.com Continued Model Figure 29 - Anchorage Dimensions Figure 30 - Hardware EXAMPLE ONLY outline SECTION VIEW ROTATED 90CW Figure 31 - Typical Anchorage Layout COMBUSTIBLE FLOOR INSTALLATION 8 METAL BASE (MMB63) EMBER PROTECTOR STRIPS: 8 clearance NOTE:...
- Page 21 COMBUSTIBLE FLOOR INSTALLATION All manuals and user guides at all-guides.com Continued MATERIALS INCLUDED: NOTE: The insulation (concrete) board chosen must to the Figure 32 - MMB63 Metal Base Assembly 6" METAL BASE (MMB33,MMB39, MMB44, AND MMB49) 6 clearance Figure 33 - MMB33, MMB39, MMB44 and MMB49 Metal Base Assembly www.fmiproducts.com...
- Page 22 FIREPLACE INSTALLATION All manuals and user guides at all-guides.com MATERIALS INCLUDED: MM33, MM39, MM44, MM49: IMPORTANT: MM63: Accessories FIELD ASSEMBLY PROCEDURES Accessories Acces sories Accessories TOOLS NEEDED FOR INSTALLATION: MATERIALS NEEDED FOR INSTALLATION: wood shims supplied with the Fireplace www.fmiproducts.com...
- Page 23 Assembly Instructions Combustible Floor Installations: Figure 35 - Positioning Hearth Base for MM63 Non-combustible Floor Installations: Figure 36 - Preparing Hearth Base Model Figure 34 - Positioning Hearth Base For MM33,39,44,49 Figure 37 - Preparing Side and Rear Wall Pieces www.fmiproducts.com...
- Page 24 Figure 39 - Layering walls and sides for MM63 MM63: Rear Wall Rear Wall Stagger positions of rear wall Figure 38 - Layering walls and sides for Rear Wall MM33,39,44,49 Figure 40 - Staggering walls and sides for MM63 www.fmiproducts.com...
- Page 25 FIREPLACE INSTALLATION All manuals and user guides at all-guides.com Continued cu. ft. Figure 43 - Attaching Downdraft Diverter and Side walls Figure 41- Inserting Rebar and adding Ready Mix Concrete Figure 44 - Attaching Lower Rear Dome and Lintel Figure 42 - Attaching Lower Seismic Straps www.fmiproducts.com...
- Page 26 FIREPLACE INSTALLATION All manuals and user guides at all-guides.com Continued NOTE: Although you are cautioned to use mortar MM63 ONLY: the mortar. IMPORTANT: Figure 46 - Attaching Middle Dome Figure 45 - Attaching Lower Dome Sides Installing Damper and Chimney System NOTE: The chimney hole on the Dome Top is not WARNING: DO NOT PACK REQUIRED AIR SPACES WITH INSULATION OR OTHER...
- Page 27 FIREPLACE INSTALLATION All manuals and user guides at all-guides.com Continued MM33 MM39,44,49 MM63 Figure 46 - Attaching Middle Dome www.fmiproducts.com...
- Page 28 WARNING: Do not interchange chimney parts required by FMI PRODUCTS, LLC otherwise a potential hazardous condition may be created. Figure 47 - Installing Anchor Plate www.fmiproducts.com...
- Page 29 FIREBRICK INSTALLATION All manuals and user guides at all-guides.com CUSTOM FIREBRICK LINING Custom Accessories MODULAR FIREBRICK LINING at least Figure 48 - Postion of Rear Panel www.fmiproducts.com...
- Page 30 OPERATION AND MAINTENANCE GUIDLINES All manuals and user guides at all-guides.com FIREPLACE GRATES SCREENS Doors GLASS DOORS Figure 49 - Bi-Fold Glass Doors IMPORTANT: WARNING: Fireplaces equipped with glass doors should be operated only with doors fully opened or doors fully closed. Doors, if left partly Cleaning Glass OWNER’S OPERATION &...
- Page 31 OPERATION AND MAINTENANCE GUIDLINES All manuals and user guides at all-guides.com Continued ANNUAL FIREPLACE MAINTENANCE WARNING: Burning of above mentioned materials will cause an unsafe condition and will void your warranty! STARTING A FIRE AND BASIC OPERATION www.fmiproducts.com...
- Page 32 OPERATION AND MAINTENANCE GUIDLINES All manuals and user guides at all-guides.com Continued SURFACE CRACKS TECHNICAL SERVICE www.fmiproducts.com. REPLACEMENT PARTS Note: Use only original replacement parts. This will under warranty. www.fmiproducts.com...
- Page 33 ACCESSORIES All manuals and user guides at all-guides.com MORTAR - 50 LB BUCKET 4 OUTSIDE AIR KIT Herringbone DAMPER / ANCHOR PLATE KIT Running Bond BRICK PANELS GRATES SCREEN ASSEMBLIES SEISMIC STRAP KIT MASONRY ARCH METAL BASE KIT EMBER PROTECTOR www.fmiproducts.com...
- Page 34 ACCESSORIES All manuals and user guides at all-guides.com Continued DOUBLE WALL PIPE STORM COLLAR 30° OFFSET AND RETURN FIRESTOP SPACER ROOF FLASHING ROUND TOP TERMINATIONS CHIMNEY SUPPORT SQUARE CHASE-TOP TERMINATION www.fmiproducts.com...
- Page 35 ACCESSORIES All manuals and user guides at all-guides.com Continued MASONRY (PRECAST) CHIMNEY 14 DIAMETER www.fmiproducts.com...
- Page 36 PARTS All manuals and user guides at all-guides.com MODELS MM39, MM44 AND MM49 Non-Combustible Floor Systems Combustible Floor Systems See Page 16 thru 18 and framing anchoring illustrations www.fmiproducts.com...
- Page 37 PARTS All manuals and user guides at all-guides.com Replacement Parts ITEM P/N ITEM P/N DESCRIPTION DESCRIPTION † § § § † § www.fmiproducts.com...
- Page 38 PARTS All manuals and user guides at all-guides.com MODELS MM33 Combustible Floor Systems Non-Combustible Floor Systems See Page 16 thru 18 for combustible illustrations www.fmiproducts.com...
- Page 39 PARTS All manuals and user guides at all-guides.com Replacement Parts ITEM PART NUMBER DESCRIPTION † § † § www.fmiproducts.com...
- Page 40 PARTS All manuals and user guides at all-guides.com MODELS MM63 Combustible Floor Systems Non-Combustible Floor Systems See Page 16 thru 18 for combustible illustrations www.fmiproducts.com...
- Page 41 PARTS All manuals and user guides at all-guides.com Replacement Parts ITEM PART NUMBER DESCRIPTION 3 sets † † § www.fmiproducts.com...
- Page 42 All manuals and user guides at all-guides.com www.fmiproducts.com...
- Page 43 All manuals and user guides at all-guides.com www.fmiproducts.com...
- Page 44 WARRANTY All manuals and user guides at all-guides.com KEEP THIS WARRANTY _________________ ______________ __________________ FMI PRODUCTS, LLC LIMITED WARRANTIES New Products www.fmiproducts.com...
