AS OWNER/OPERATOR IT IS YOUR RESPONSIBILITY TO WRITE AND CARRY OUT
YOUR OWN RISK ASSESSMENT BEFORE ATTEMPTING TO USE THIS PRODUCT.
Site survey:
1. Carry out a survey of the area where the Arena Extreme will be located, and check for any
overhead/underground cables. It's important that this is carried out to avoid ground
anchors penetrating underground services, and the Arena Extreme coming into contact
with overhead cables when inflated.
2. You should provide an adequate power supply to the fan, this should adhere to your local
power regulations.
3. Check wind speed: The industry recommends a maximum wind speed of Force 5 on the
Beaufort scale of 28 - 38 kmph (19-24 mph). Force 5 is a fresh breeze when small trees in
leaf begin to sway.
Version 1.1 29/03/17

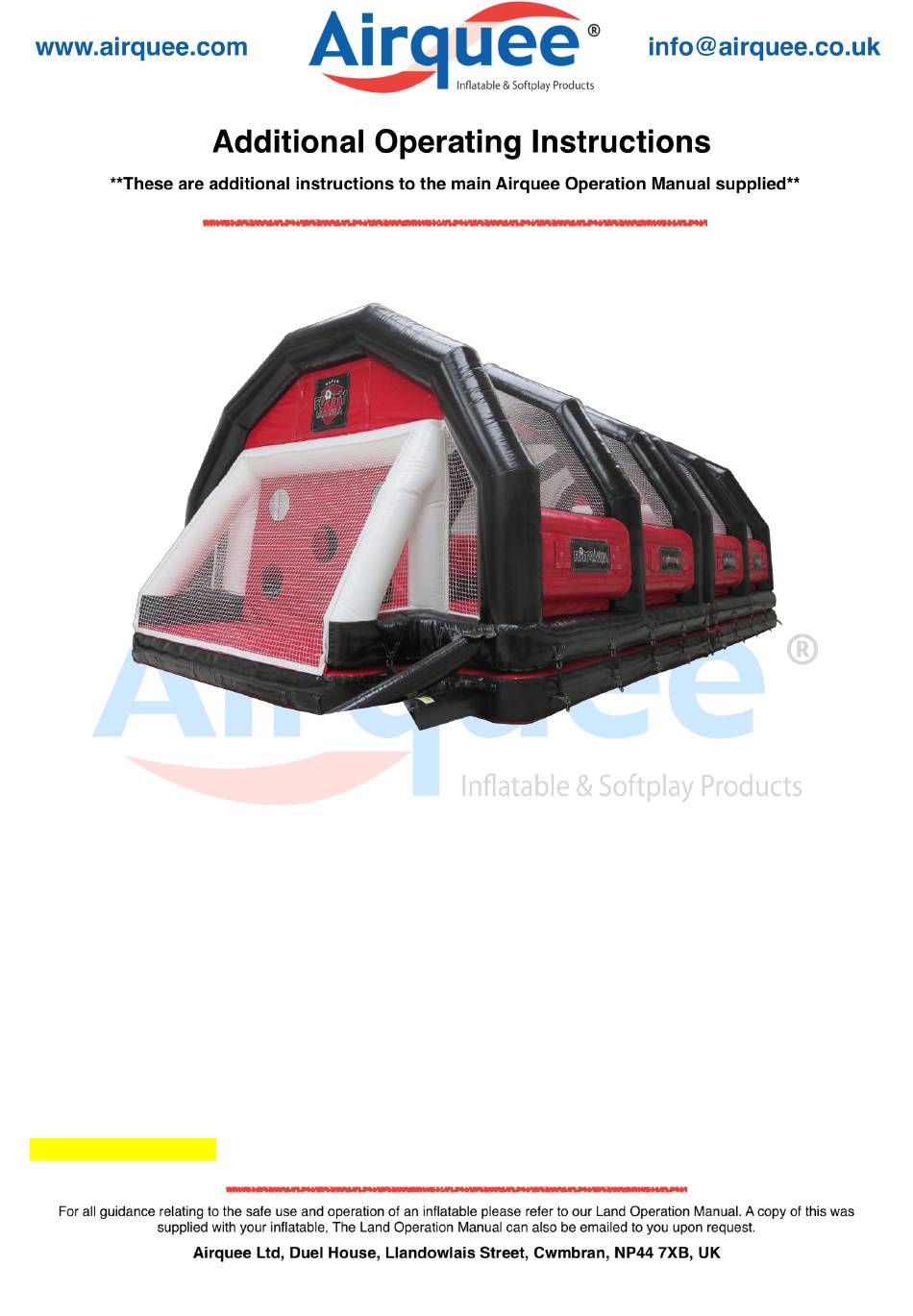

Arena Extreme
IMPORTANT
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Arena Extreme and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for airquee Arena Extreme

  • Page 1 YOUR OWN RISK ASSESSMENT BEFORE ATTEMPTING TO USE THIS PRODUCT. Site survey: 1. Carry out a survey of the area where the Arena Extreme will be located, and check for any overhead/underground cables. It’s important that this is carried out to avoid ground anchors penetrating underground services, and the Arena Extreme coming into contact with overhead cables when inflated.
  • Page 2 Included with your Arena Extreme: The inflatable Land Operation Gladiator Poles Neck Braces Metal Bar Caps Anchor Pegs Repair Kit in its bags Manual Gladiator Basket Ball Volleyball Net Adult Harness Child harness Adult Helmets Child Helmets Podiums Hoops Arena Wall...
  • Page 3 IMPORTANT: IT IS FORBIDEN TO USE THE GAME WITHOUT THE PROVIDED NECK BRACES AND HELMETS! Gladiator 1. Unroll the Arena Extreme bed, please ensure the blanking plates are facing upwards. This will allow you to fit the podiums. (fig. 1a) 2.
  • Page 4 Fig. 3 TIE IT REALLY TIGHT When assembled your Gladiator should look like figure 3. FOR SAFETY REASONS THE FAN MUST BE POSTIONED/ANGLED AT LEAST 2.5 METRES AWAY FROM THE UNIT. (SEE DIAGRAM BELOW) Dive N Save 1. Unroll one half of the bed, ensuring the Gladiator sockets are facing the ground and are fitted with the blanking panels.
  • Page 5 Fig. 4 b) Please connect the top and the bottom part of the unit with the sandwich Velcro seen in figure 5a, b. Fig. 5a Fig. 5b c) Connect all webbing straps around the outside of the unit as shown in figure 6. Fig.
  • Page 6 Fig. 6d Fig. 6e 4. Once inflated attach the blanking plates (fig. 7a,b) and the goal netting (fig. 8a) 5. Attach a 2 HP fan to the bed filler pipe (bottom one), and a 1.5 HP fan to the netted frameworks filler pipe (top one).
  • Page 7 Fig. 8b Fig. 8a Tip: Please ensure that wherever a sandwich Velcro is in place, that the rough sides of the Velcro are folded into each other. This is to prevent the build-up of foreign materials and prolong the life of your inflatables Velcro. See images below. Fig.
  • Page 8: Back View

    Fig. 10b Fig. 10a Basketball 1. Turn off the fan to the top part of the unit so that the top sheet above the goals drops to a reachable height. One side at a time. 2. From the inside poke the cam buckle and straps through the holes, and pull tight from the outside.
  • Page 9 Fig. 12 Human Table Football 1. Connect 3 steel poles by twisting them together. In the end you should have 8 metal bars. 2. You may notice there is soft Velcro on both sides of the metal bars, as seen on figure 13b. Dress the 8 metal bars with the 16 PVC caps with cambuckle on them.
  • Page 10 THE CORRECT PLACEMENT OF THE PVC HANDLES: Fig. 15b Fig. 15a Bungee Football Attach the bungee cords to the MDF plates (fig. 16a), and through the holes in the sidewalls use the carabiners to attach them to the belts. (fig. 16b) Then Velcro the disc in place over the hole. Fig.
