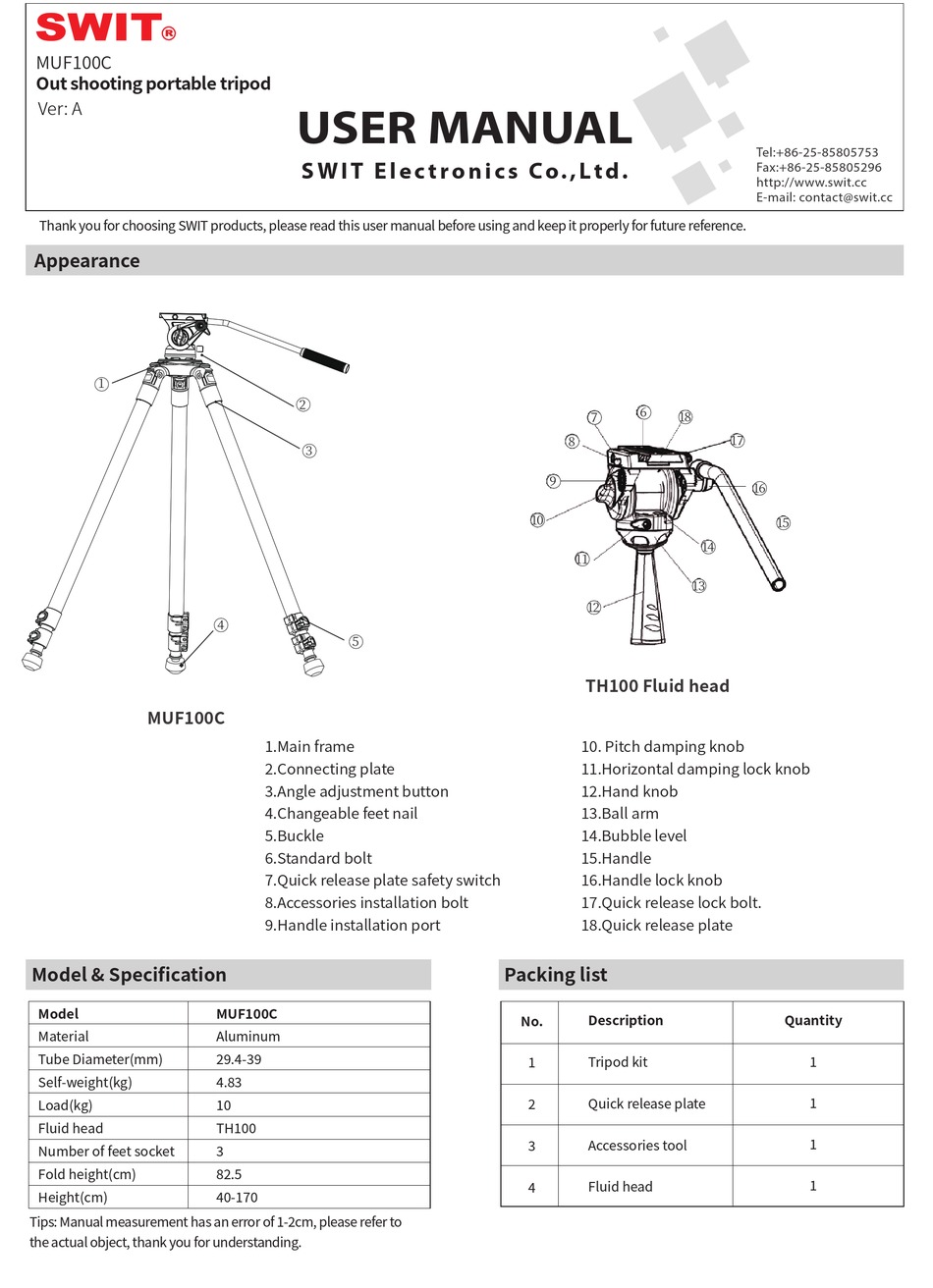

SWIT MUF100C User Manual

MUF100C
Out shooting portable tripod
Ver: A
Thank you for choosing SWIT products, please read this user manual before using and keep it properly for future reference.

Appearance

�
MUF100C
Model & Specification
Model
Material
Tube Diameter(mm)
Self-weight(kg)
Load(kg)
Fluid head
Number of feet socket
Fold height(cm)
Height(cm)
Tips: Manual measurement has an error of 1-2cm, please refer to
the actual object, thank you for understanding.
USER MANUAL
S W I T E l e c t r o n i c s C o. , L t d .
�
�
�
�
1.Main frame
2.Connecting plate
3.Angle adjustment button
4.Changeable feet nail
5.Buckle
6.Standard bolt
7.Quick release plate safety switch
8.Accessories installation bolt
9.Handle installation port
MUF100C
Aluminum
29.4-39
4.83
10
TH100
3
82.5
40-170
�
��
�
�
�
��
��
��
TH100 Fluid head
10. Pitch damping knob
11.Horizontal damping lock knob
12.Hand knob
13.Ball arm
14.Bubble level
15.Handle
16.Handle lock knob
17.Quick release lock bolt.
18.Quick release plate

Packing list

No. Description
Tripod kit
1
Quick release plate
2
Accessories tool
3
Fluid head
4
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
��
��
��
��
��
Quantity
1
1
1
1
