MUF50
Out shooting portable tripod
Ver: A
Thank you for choosing SWIT products, please read this user manual before using and keep it properly for future reference.

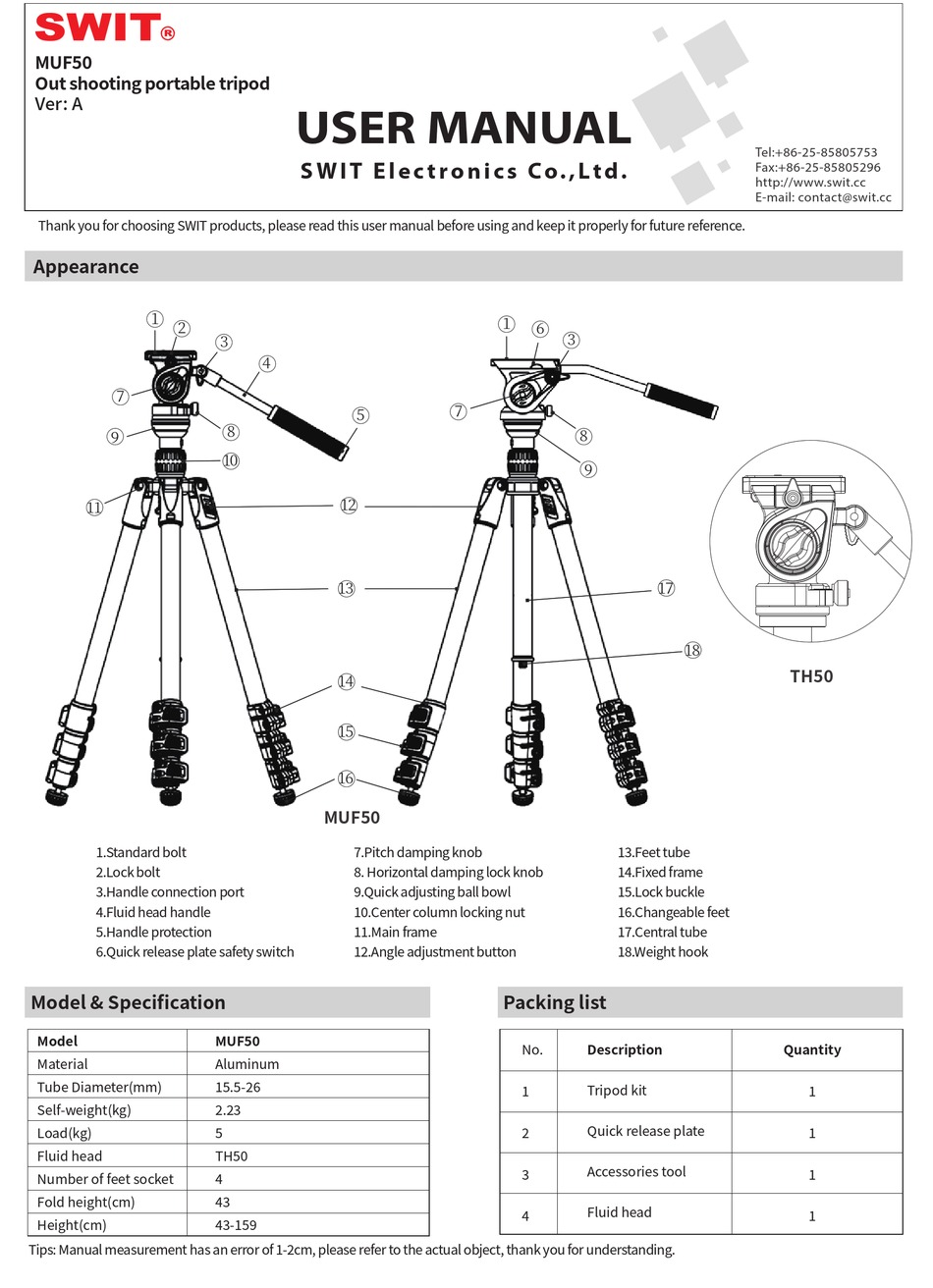

Appearance
�
�
�
�
��
1.Standard bolt
2.Lock bolt
3.Handle connection port
4.Fluid head handle
5.Handle protection
6.Quick release plate safety switch
Model & Specification
Model
Material
Tube Diameter(mm)
Self-weight(kg)
Load(kg)
Fluid head
Number of feet socket
Fold height(cm)
Height(cm)
Tips: Manual measurement has an error of 1-2cm, please refer to the actual object, thank you for understanding.
USER MANUAL
S W I T E l e c t r o n i c s C o. , L t d .
�
�
�
�
��
��
��
��
��
��
MUF50
7.Pitch damping knob
8. Horizontal damping lock knob
9.Quick adjusting ball bowl
10.Center column locking nut
11.Main frame
12.Angle adjustment button
MUF50
Aluminum
15.5-26
2.23
5
TH50
4
43
43-159
�
�
�
�
�
�
13.Feet tube
14.Fixed frame
15.Lock buckle
16.Changeable feet
17.Central tube
18.Weight hook
Packing list
No.
Description
Tripod kit
1
Quick release plate
2
Accessories tool
3
Fluid head
4
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
��
��
TH50
Quantity
1
1
1
1
