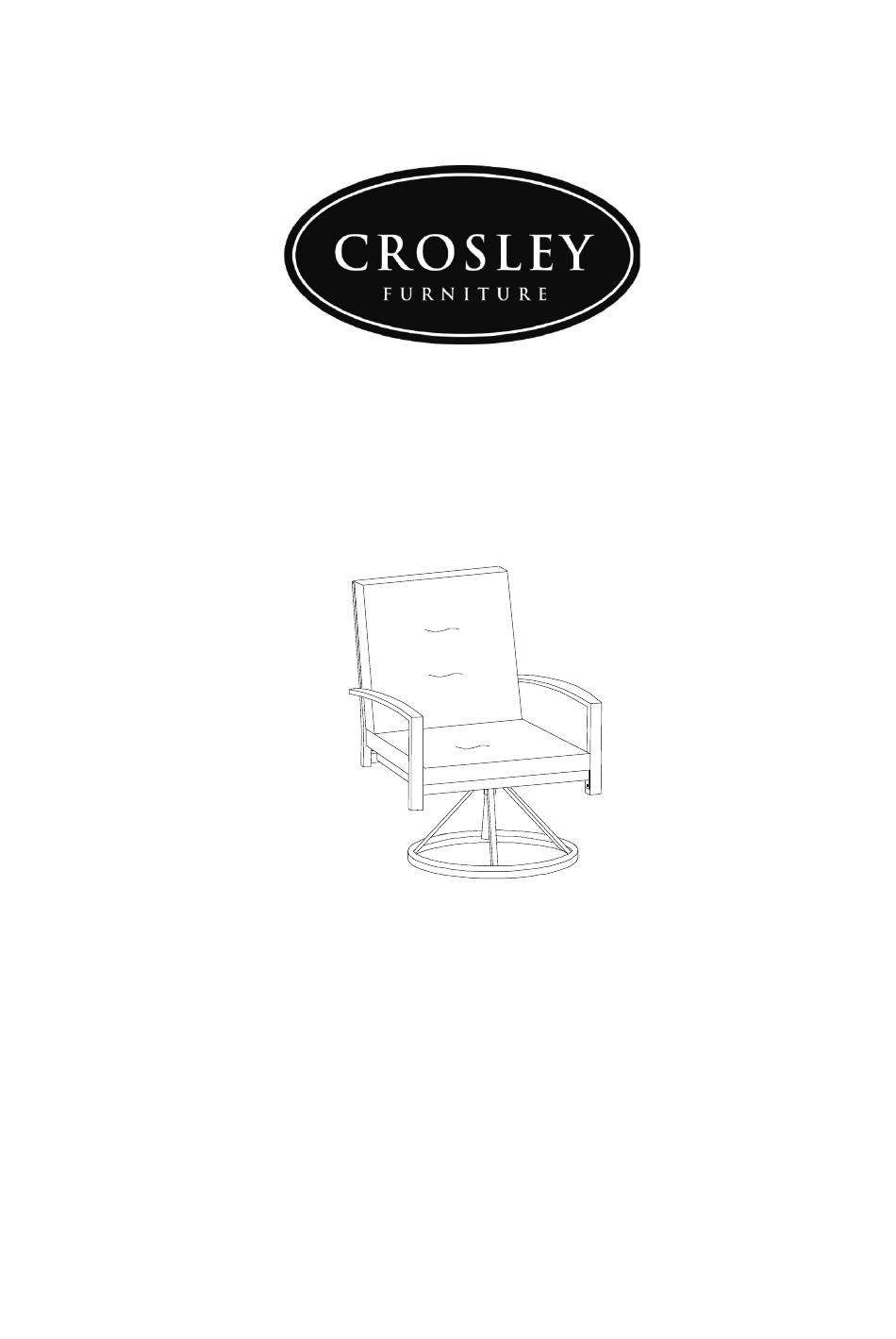

- Page 1 Outdoor Dining Swivel Chair CO6214...
-
Page 2: Part List
PART LIST Back Panel Seat Panel Swivel Right Arm Panel Left Arm Panel 2 PCS 2 PCS 2 PCS 2 PCS 2 PCS Back Cushion Seat Cushion Back Cushion Seat Cushion Core Cover * Cover * Core 2 PCS 2 PCS 2 PCS 2 PCS 2 PCS... - Page 3 Step 1. Lay right arm panel (part С) down on a soft flat surface, such as carpet, as shown below. Attach seat panel (part B) to right arm panel (part C) using short bolts (part #1), flat washers (part #4) and allen wrench (part #5). NOTE: Please do not fully tighten bolts until unit is fully assembled.
- Page 4 Step 3. Attach back panel (part A) to assembled unit (parts B, C & D) using short bolts (part #1), long bolts (part #3), flat washers (part #4) and allen wrench (part #5). NOTE: Please do not fully tighten bolts until unit is fully assembled. Step 4.
- Page 5 Step 5. Attach swivel (part E) to the base (part F) Step 6. Insert seat cushion core (part H) into seat cushion cover (part G). lnsert back cushion core (part J) into back cushion cover (part I).
- Page 6 Step 7. Place seat cushion and back cushion as shown below. Repeat steps 1-7 to assemble remaining chair. Back Cushion Seat Cushion...
- Page 7 Outdoor Dining Table CO6215...
- Page 8 PART LIST Top Panel 4 PCS 1 PC HARDWARE LIST M8*35mm M6mm Wrench Bolt Flat Washer 8 PCS (Extra 1) 8 PCS (Extra 1) 1 PC 1 PC...
- Page 9 Step 1. Lay top panel (part B) upside down on a soft flat surface, such as carpet, as shown below. Attach legs (part A) to top panel (part B) using bolts (part #1), flat washers (part #2) and wrench (part #3). NOTE: Please fully tighten all bolts at this time.
