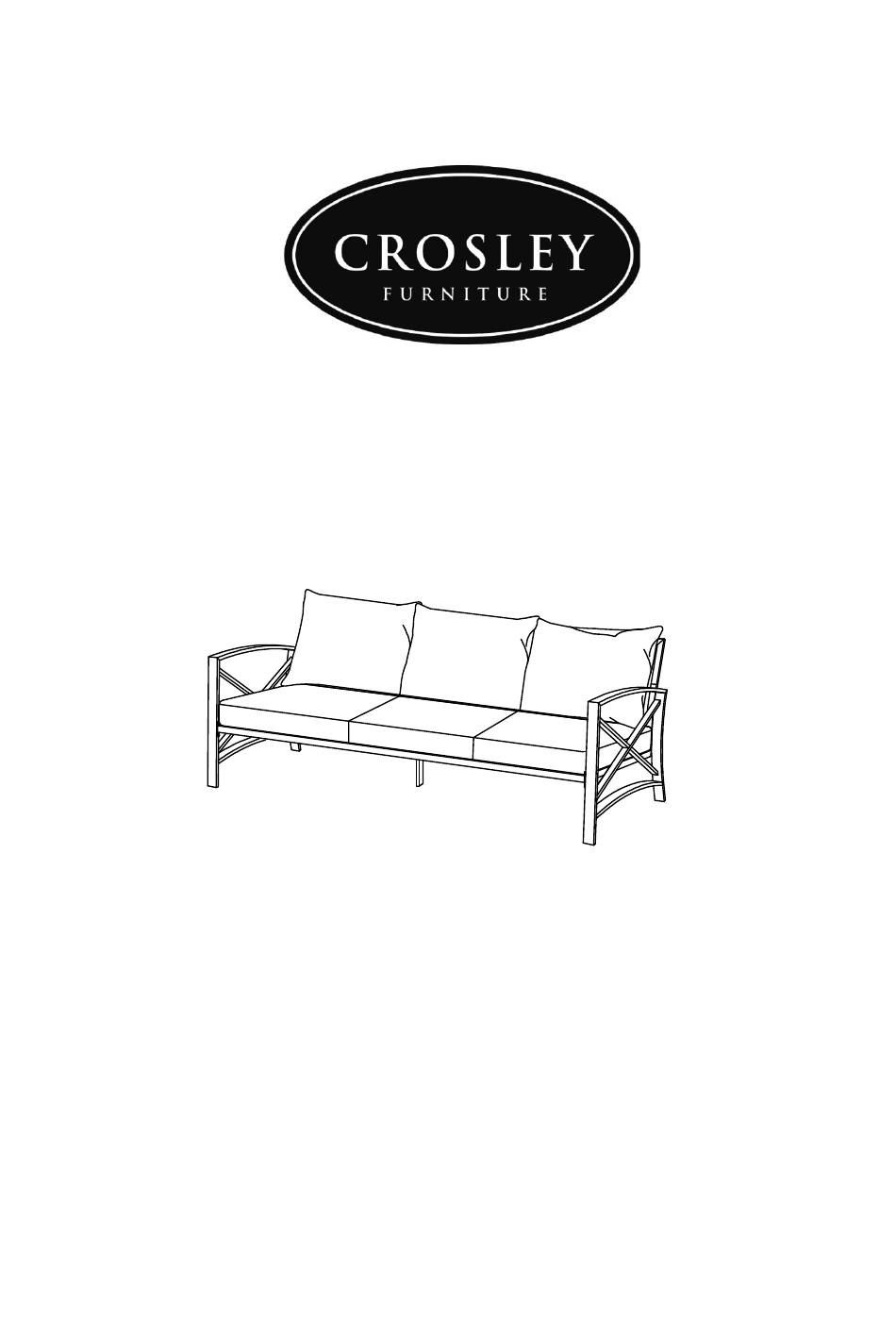

- Page 1 Outdoor Sofa CO6111...
- Page 2 PART LIST Seat Panel Back Panel Right Arm Panel Left Arm Panel 1 PC 1 PC 1 PC 1 PC 1 PC Core of Back Cover of Back Cover of Seat Core of Seat Cushion Cushion * Cushion * Cushion 3 PCS 3 PCS 3 PCS...
- Page 3 Step 1. Lay left arm panel (part D) down on a soft flat surface, such as carpet, as shown below. Attach back panel (part A) to left arm panel (part D) using long bolts (part #3), flat washers (part #4) and allen wrench (part #5). NOTE: Please do not fully tighten bolts until unit is fully assembled.
- Page 4 Step 3. Attach right arm panel (part C) to back panel (part A) and seat panel (part B) using short bolts (part #1), long bolts (part #3), flat washers (part #4) and allen wrench (part #5). NOTE: Please fully tighten all bolts at this time. Step 4.
- Page 5 Step 5. Insert core of seat cushions (part G) into cover of seat cushions (part F). lnsert core of back cushions (part I) into cover of back cushions (part H). Step 6. Carefully turn unit upright and add cushions as shown below.
