- Page 2 After you have finished reading the instructions, keep this document in a safe place for future reference. THIS PACKAGE CONTAINS 1x BRT17SLR sound bar BRT17SLR Mounting kit 1x Cigarette lighter plug adaptor 1x Remote control...
-
Page 3: Before You Start

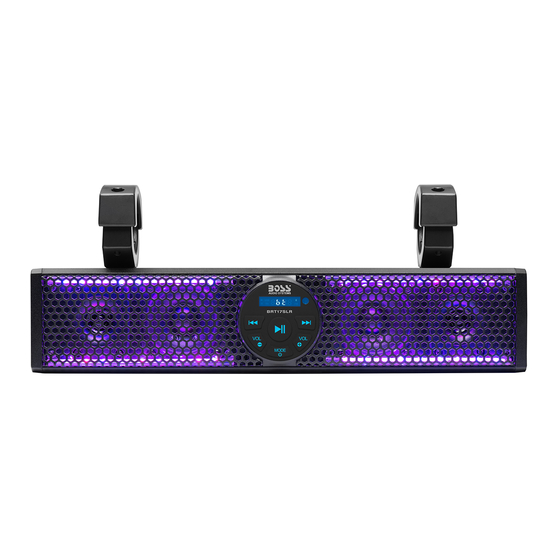

Before You Start Read and understand all instructions before you use your product. If you do not follow the instructions in this manual, we are not responsible for injury or damage resulting from improper handling. This will also void the warranty. Important Safety Precautions •... - Page 4 This product is shockproof and water resistant. This product is operated with 12 V DC vehicle power supply. Never connect this product to any other voltage supply. Product Overview BRT17SLR 3.5mm audio input jack Volume buttons RCA audio output sockets...
- Page 5 Mounting Mounting on ATV or UTV Always consult technical personnel if you are in doubt about installation. You must work with an assistant to mount the sound bar due to its heavy weight. Use only the supplied accessory for mounting. Using other mounting methods may void the warranty. To ensure safety of the mounted sound bar, always check the mounting conditions (e.g.
-
Page 6: Power Connection
(e.g. 24 V DC power supply in trucks or buses). Simply insert the cigarette lighter plug of the sound bar into your vehicle cigarette lighter socket. When the power supply is connected, the power LED indicator lights up. BRT17SLR Vehicle cigarette lighter plug Connection to the cigarette lighter socket Turn on or off •... - Page 7 See the illustration below. Connect the cigarette lighter plug of the sound bar into the cigarette lighter plug adapter. When the power supply is connected, the power LED indicator lights up. BRT17SLR Cigarette lighter plug Cigarette lighter plug adapter...
- Page 8 If Bluetooth mode is not selected, press briefly MODE to select Bluetooth mode. On your mobile device, enable Bluetooth function and select the device name (“Boss Audio BRT17SLR”) to pair the sound bar with the mobile device. If prompted for password, enter “0000”.
- Page 9 You can listen to an external audio device (e.g. MP3 player or a mobile phone) through the sound bar. BRT17SLR input 3.5mm audio cable Using an audio cable with 3.5mm plug (not included), connect the AUX input (3.5 mm) on the sound bar to the headphone jack on your audio device.
- Page 10 You can enjoy audio stored on a USB storage device through the sound bar. BRT17SLR port flash drive Connect a USB flash to the USB port on the sound bar. The sound bar automatically switches to USB mode when USB connection is made. “USB” is displayed briefly.
-
Page 11: Audio Output
Audio Output You can output audio from the sound bar to an external amplifier or powered speakers through RCA output. BRT17SLR RCA sockets Audio cable with RCA plugs Fuse Replacement If the power LED indicator on the vehicle cigarette lighter plug does not light up, this indicates the fuse inside the cigarette lighter plug is blown. -
Page 12: Remote Control
Remote Control The sound bar comes with a remote control. You can use the remote control to control both music playback and the LED lights which are integrated with the sound bar. Light control buttons Press and hold to turn the sound bar on or off. -
Page 13: Troubleshooting
Troubleshooting If you have problems using this product, check the following points before you request service. If you still have a problem, contact our technical support. Problem Solution The fuse inside the vehicle cigarette lighter plug is blown. Replace the fuse. No power The ACC switch of the vehicle is not on. -
Page 14: Specifications
Input voltage ............. 12 V DC (allowable 10 - 16 V DC) Current draw .............max. 4 A Fuse ..............10 A AGC type Clamp size range (O.D.) ........1.75” - 2” Weight ..............5.07 lbs / 2.3 kg Dimension drawing 3.70” BRT17SLR (94 mm) 17.32” 3.29” (440 mm) (83.5 mm)
