Boss ATV6.5B - Amplified All Terrain Sound System Manual

THIS PACKAGE CONTAINS

Please read through these instructions carefully so you will know how to operate your model properly.
After you have finished reading the instructions, keep this document in a safe place for future reference.

1x All terrain sound system (with a cigarette lighter plug)


1x Cigarette lighter plug adapter


1x AUX cable with 3.5 mm plug


2x Mounting straps + 2x Nylon zip ties


1x User manual + 1x Warranty card

Please enter below the Serial No. which is located on the exterior of the product. Retain this information for future reference.
Model:
Serial No.:
Date of Purchase:

Before You Start

Read and understand all instructions before you use your product. If you do not follow the instructions in this manual, we are not responsible for injury or damage resulting from improper handling. This will also void the warranty.

Important Safety Precautions

• Be sure to observe the following guidelines:
  • Do not increase speaker volume so high that you cannot hear what is around you.
  • Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not make any adjustment on the product when driving or in other situations where distractions can be hazardous. Responsible and safe driving is your primary responsibility when operating a vehicle.
• Start volume at a low setting then gradually increase the volume until you can hear it comfortably, without sound distortion and ear discomfort.
• In the event of smoke, strange noise or odor emitted from the product or any other abnormal operational signs appearing on the product, disconnect the product from the power supply. Discontinue use and contact your dealer or our technical support. Using the product in this condition may result in permanent damage to the system.
• Servicing must only be carried out by a technician. Contact our technical support for any service question.

Installation Precautions

•
  Always consult a professional installer.
• Installation must be performed by a professional. Contact our technical support for any installation question.
• Observe the safety and operating instructions of the devices which are connected to the product.
• Only use attachments/accessories specified by the manufacturer for installation.
• Do not modify this product, as this affects the safety of the product. Risk of injury or damage to the product.
• Before installation, disconnect the negative terminal of the vehicle battery to prevent damage to the product, fire, and/or possible injury.

Care for Your Product

• DO NOT clean the product in hot weather (e.g. hot sunlight).
• DO NOT use abrasive or highly alkaline cleaner on the product.
• DO NOT use gasoline, acetone, carbon tetrachloride or other aggressive chemical solutions on the product.
• DO NOT scrape the product with razor blade or other sharp instrument.
• This product is water resistant. However, never submerge the product to water.
• Wash the product with lukewarm water and mild soap or detergent, using a clean sponge or soft cloth. Rinse well with clean water.

Getting to Know Your ATV6.5B

Introduction

The product is a Bluetooth speaker system which is ideal for installation in a ATV (All Terrain Vehicle) or UTV (Utility Vehicle). Through Bluetooth connection, audio can be streamed from a mobile phone to this product and a hands-free function is available for voice call. With the 3.5 mm audio cable connection, music from an audio device (e.g. a mobile phone or MP3 player) can be played on this product.
This product is shockproof and water resistant. This product is operated with 12 V DC vehicle power supply. Never connect this product to any other voltage supply.
Please read this manual carefully so you will know how to operate your product properly. After you have finished reading this manual, store it in a safe place for future reference.

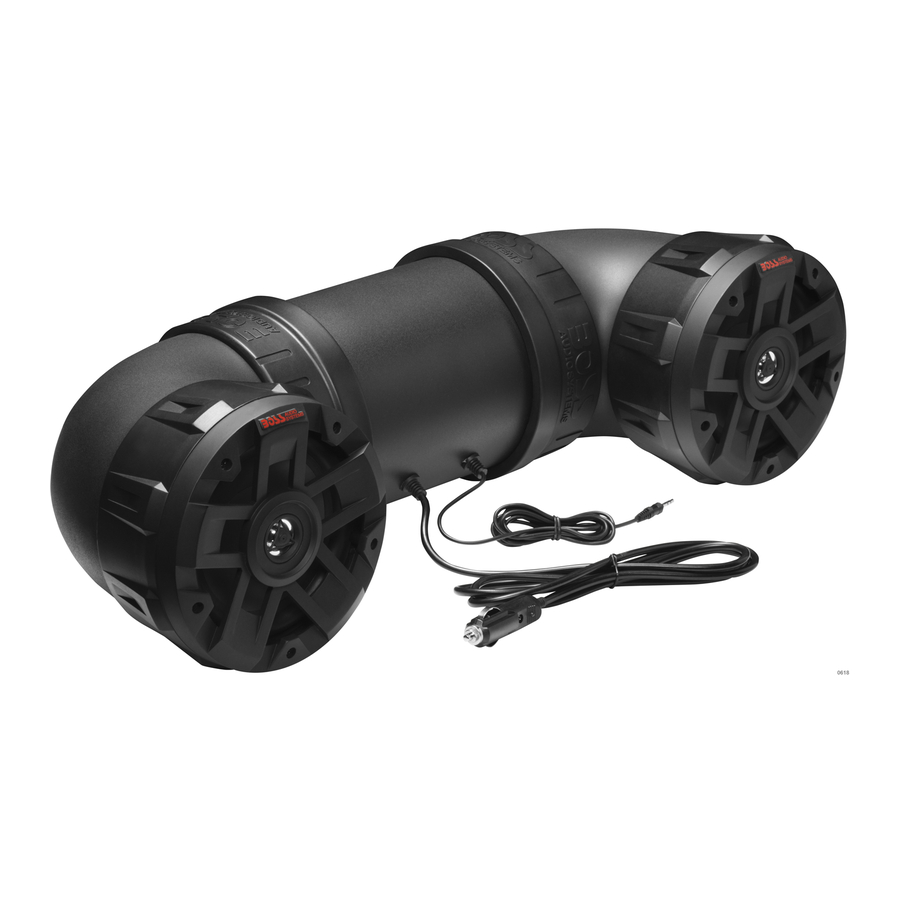

Product Overview

1. Speaker
2. Power LED indicator
3. Vehicle cigarette lighter plug
4. AUX input jack (3.5 mm)
5. Speaker

Before you can stream music from your mobile device (iOS device or Android device) to this sound system through Bluetooth, pair the sound system with your mobile device.

1. Make sure the AUX cable is not connected to the sound system. Then connect to power supply. The power LED indicator on the cigarette lighter plug lights up, and the sound system will automatically enter pairing mode
2. On your mobile device, enable Bluetooth function and select the device name ("Boss Audio ATV6.5B") to enter pairing mode. pair the sound system with the mobile device.
   If prompted for password input on your mobile device, input "0000".
   If no Bluetooth device is paired within two minutes, the sound system will automatically exit pairing mode.
   In this case, you need to repeat the steps above to re-enter the pairing mode.
3. After pairing, select and play audio files on your mobile device, and audio will be streamed to the sound system. Use the volume control on the connected device to adjust volume.

To maximize audio performance, set the volume of the Bluetooth device to a minimum 75% of the total volume before Bluetooth connection.
After pairing, the sound system will be automatically connected to your mobile device each time the two are turned on. Operating the sound system consumes the vehicle battery. To avoid battery exhaustion, be sure to run the vehicle engine when operating the sound system. Operational range can be reduced by any obstacle between the sound system and the device. If the connected device is out of the effective range from the sound system, the device will be automatically disconnected. The device will be automatically re-connected if it is within the effective range again. The sound system automatically re-connects the last paired device only. If your mobile device is not the last paired device, make sure no other device is currently paired with the sound system then repeat the steps described above to manually re-connect the sound system to the mobile device.

AUX Play

Yon can listen to an external audio device (e.g. MP3 player or a mobile phone) through this sound system.

1. Using the supplied AUX cable, connect to the AUX input jack (3.5 mm) on the sound system to the headphone jack on your audio device.
   If the sound system is currently connected to a mobile device through Bluetooth, Bluetooth connection will be automatically disconnected.
2. Select and play audio files on your audio device. Audio from the connected device will be played on this sound system. Use the controls on the connected device to control play (e.g. volume adjustment).

To maximize audio performance, set the volume of the connected device to a minimum 75% of the total volume before connection to the audio device.
To resume Bluetooth connection, you must disconnect the AUX cable from the sound system.
Operating the sound system consumes the vehicle battery. To avoid battery exhaustion, be sure to run the vehicle engine when operating the sound system.

Fuse Replacement

Fuse replacement of the vehicle cigarette lighter plug
If the power LED indicator on the vehicle cigarette lighter plug does not light up, this indicates the cigarette lighter plug is blown. Replace the blown fuse with a 10A AGC fuse type only.

1. Turn counterclockwise the front end assembly of the cigarette lighter plug to open to access the fuse.
   Replace with a new 10A AGC fuse (not included). Then replace the front end assembly of the cigarette lighter plug.


Care of the Environment

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Dimension drawing
