- Page 1 ATV6.5B USER’S MANUAL USER MANUAL BLUETOOTH® | AMPLIFIED ALL TERRAIN SOUND SYSTEM FEATURING . " MARINE SPEAKERS AND " WATERPROOF TWEETERS...
- Page 2 Thank you for purchasing this ATV6.5B All-Terrain Sound System Please read through these instructions carefully so you will know how to operate your model properly. After you have finished reading the instructions, keep this document in a safe place for future reference.
-
Page 3: Before You Start

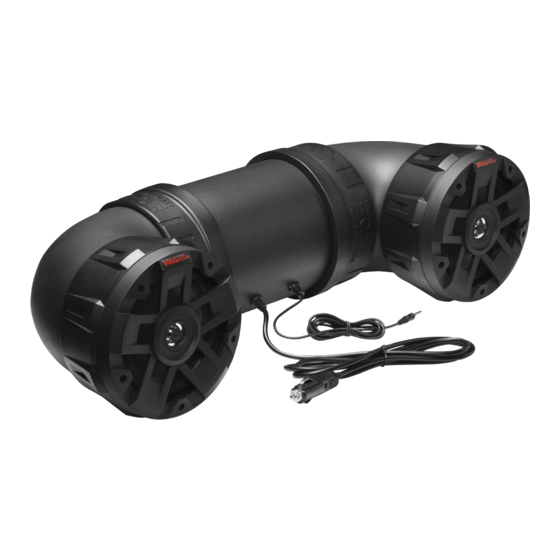

Before You Start Read and understand all instructions before you use your product. If you do not follow the instructions in this manual, we are not responsible for injury or damage resulting from improper handling. This will also void the warranty. Important Safety Precautions •... - Page 4 Getting to Know Your ATV6.5B Introduction The product is a Bluetooth speaker system which is ideal for installation in a ATV (All Terrain Vehicle) or UTV (Utility Vehicle). You can stream audio from a mobile phone to this product via Bluetooth. You can also play music from an external device (e.g.
- Page 5 Mounting Mounting on ATV or UTV Always consult an expert when in doubt about the installation. Use only the supplied accessory for mounting. Using other mounting methods may void the warranty. To ensure security of the mounted sound system, always check the mounting conditions (e.g. mounting straps) of the sound system before each vehicle ride.
-
Page 6: Power Connection
Power Connection Option1: Using Power Port If your vehicle has a 12V power port, directly connect the sound system to your vehicle for power connection. Insert the 12V power port plug of the sound system into your vehicle power port. When the power supply is connected, the power LED indicator illuminates on the power port plug. - Page 7 Power Connection Power port plug adapter 12V power port plug with 10A fuse Red wire Black wire On/Off switch Fuse Battery (not included) (not included) Vehicle’s metal frame Option 3: Direct connection to vehicle battery Important: • To avoid short circuits and any resulting damage to the sound system, the negative terminal of the vehicle battery must be disconnected first.
- Page 8 The power LED indicator illuminates on the power port plug, and the sound system will automatically enter pairing mode. On your mobile device, enable Bluetooth function and select the device name (“Boss Audio ATV6.5B”) to pair the sound system with the mobile device.
- Page 9 You can listen to an external audio device (e.g. MP3 player or a mobile phone) through this sound system. Using the supplied AUX cable, connect the AUX input jack (3.5 mm) on the sound system to the headphone jack on your audio device. If the sound system is currently connected to a mobile device through Bluetooth, Bluetooth will be automatically disconnected.
-
Page 10: Fuse Replacement
Fuse Replacement Fuse replacement of the vehicle power port plug If the power LED indicator on the power port plug does not illuminate, this indicates the fuse inside the power port plug is blown. Replace the blown fuse with a new 10A AGC fuse (glass cartridge type). Locate the screw cap on the front end of the power port plug. -
Page 11: Troubleshooting
Troubleshooting If you have problems using this product, check the following points before you request service. If you still have a problem, contact our technical support. Problem Solution Power connection is not made. See the section “Power Connection” for details. The ACC switch of the vehicle is not on. -
Page 12: Specifications
Specifications Bluetooth Bluetooth version ..........5.0 / EDR Bluetooth profile ..........A2DP Bluetooth frequency ..........2402 - 2480 MHz Transmission power..........<4 dBm Transmission distance ........up to 33 ft /10 m (line of sight) Speakers Dimensions ............6.5” / 165.1 mm Cone type ............PP carbon + rubber surround Tweeter size .............1”... - Page 13 BOSS Audio Systems 3451 Lunar Court • Oxnard, CA 93030 www.bossaudio.com 805-751-4853 Customer Service Tech Support: www.bossaudio.com/support 0521 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio...
