Dorel Home Products DA4057019 Manual

Hide thumbs

page of 18

/ 18
Bookmarks

Available languages

Quick Links

Download this manual

Weight Limit: 400 Lb / 181 Kg

C.W. - 2020/11/25

DA4057019(Black), DA4057119(White)

Thank you for purchasing from Dorel!

DO NOT RETURN TO THE STORE !

If parts are missing or damaged, we will gladly ship your

replacement parts free of charge.

Visit www.dhpfurniture.com/eng/replacement-parts

or call Toll-Free 1-800-267-1739

You can also chat with us at www.dhpfurniture.com

Date of Purchase

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY

INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Metal Daybed

Twin

Lot Number

(TAKEN FROM CARTON)

B34DA405701900-241637-C

Need help?

Do you have a question about the DA4057019 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dorel Home Products DA4057019

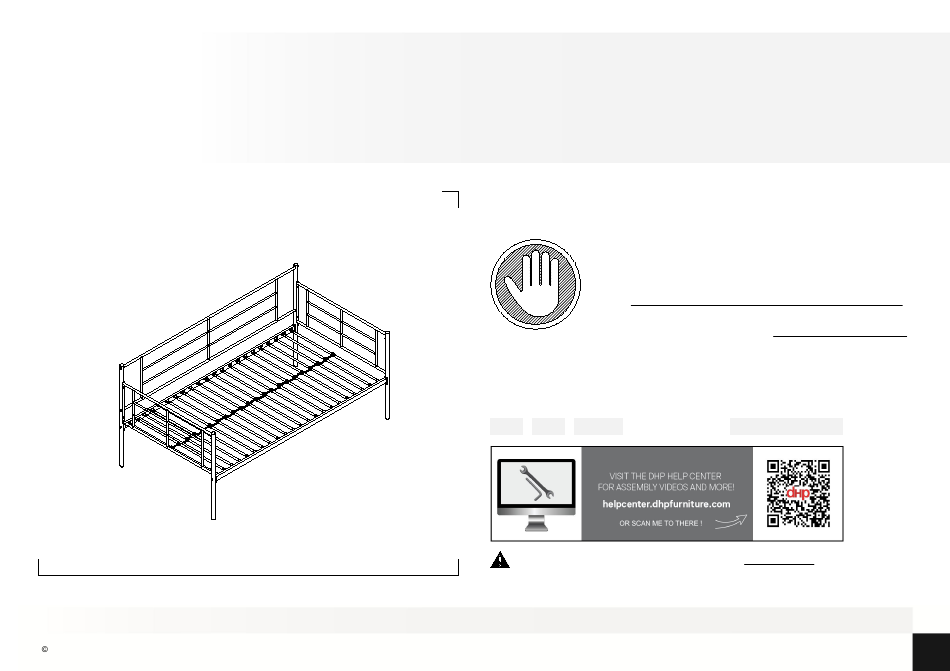

Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. C.W. - 2020/11/25 B34DA405701900-241637-C 2014 Dorel Home Products All Rights Reserved...
Page 2 Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
Page 3 PARTS...
Page 4 Spacer Slats Front/ Rear Rail Spacer Rear Guard Rail 22 PCS 22 PCS 21 PCS 1 PCS 2 PCS PART NUMBERS DA4057019 DA4057119 PART (Black) (White) LABELS T999440 T999500 Each part has unique part number. T999450 T999510 Please reference the appropriate part...
Page 5 1 PC Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. DA4057019(Black) HP#: TDA4057019-00 The screw(s), bolt(s) to be used at each step are DA4057119(White) HP#: TDA4057119-00 shown in actual size in the lower right corner of the page.
Page 6 Step 1 Attach A and C to F with...
Page 7 Step 2 Attach B and D to F with...
Page 8 Step 3 Attach G to C and D with...
Page 9 Step 4 Attach J x 2 to A, B, C, D with...
Page 10 Step 5 Insert O into J x 2 as illustrated, then lock O into place with Y.
Page 11 Step 6 6.1 Press W onto O approximately in the middle of O as illustrated. 6.2 Attach Q to W alternating left and right as illustrated.
Page 12 Prohibit jumping and horseplay on this bed. Only use a mattress which is 74"-75" long and 37 " - 38 " wide. Do not use risers under this bed. End Cap DA4057019(Black) T393770 T393780 DA4057119(White) Weight Limit: 400 Lb / 181 Kg...
Page 13 DA4057019(Negro),DA4057119(Blanco) NO LO REGRESE A LA TIENDA! Si le faltan piezas o las que se incluyen est n da adas, con mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Div n de metal Visite www.dhpfurniture.com/spa/replacement-parts Individual o llame gratis al 1-800-267-1739...
Page 14 Partes Paquete de componentes # de Paquete : DA4057019: TDA4057019-00 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts DA4057119 : TDA4057119-00 IMPORTANTE: La lista de n meros de piezas que aparece a continuaci n es Nota: Por favor no apriete completamente los pernos hasta que el exclusiva de su producto.
Page 15 Instrucciones L mites de peso: 400 Lb / 181 Kg Paso 1 Adjunte A & C a F con Consejos tiles Paso 2 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para levantar y trasladar su producto a su nueva ubicaci n. Adjunte B &...
Page 16 DA4057019(Noir),DA4057119(Blanc) NE PAS RETOURNER CE PRODUIT AU MAGASIN ! Si une pi ce est manquante ou endommag e, nous vous exp dierons avec plaisir vos pi ces de remplacement gratuitement. Lit de jour en m tal Visitez www.dhpfurniture.com/fre/replacement-parts ou appelez au 1-800-267-1739...
Page 17 Pi ces Quincaillerie Pour des pi ces de rechange, visitez www.dhpfurniture.com/fre/replacement-parts # de paquet : DA4057019: TDA4057019-00 DA4057119 : TDA4057119-00 IMPORTANT: La liste des r f rences ci-dessous est propre votre produit. Veuillez l'avoir sous la main lorsque vous appelez pour des pi ces de rechange.
Page 18 Instructions Limite de Poids: 400 Lb / 181 Kg tape 1 Fixez A & C aux F avec tape 2 Conseils utiles Fixez B & D aux F avec D placez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel tape 3 emplacement.

This manual is also suitable for:

Da4057119
