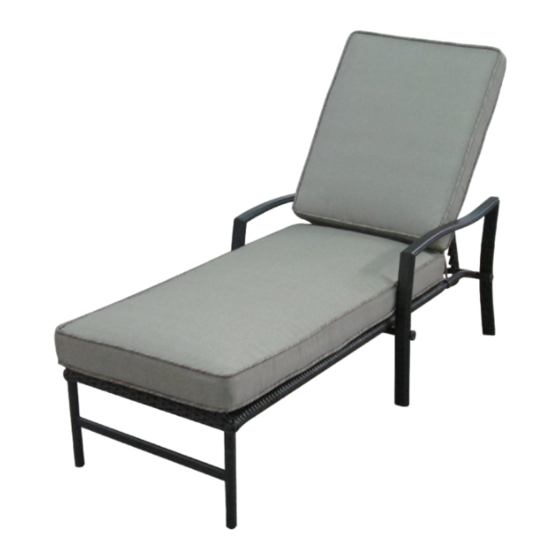

Courtyard Creations KVS134W Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
KVS134W-CS02-1
2
KVS134W-CS01-1
3
KVS134W-CS04-5
4
KVS134W-CS03-1
5
17C02A0712001YX
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #9)
Attention:
Make sure that all bolts needed for each step matches
the corresponding figure to ensure proper assembly.
Step 1:
Place the seat assembly (#1) onto a non-abrasive
surface, such as a carpet.
the seat assembly (#1) and fasten together by using
screws (#6). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the lounge is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
!
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC No. when contacting the service center.
!
V-3
INTENDED FOR RESIDENTIAL USE ONLY.
KVS134W
PART Q'TY
SEAT ASSEMBLY
ARM
FRONT LEG
BACK ASSEMBLY
BOLT M6*35
Insert the front leg (#3) into
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
STOP DO NOT RETURN TO THE STORE!
PAGE 1 OF 2
6
17C17A0403001YX
1 7
17C40A0712001YX
2 8
27XA3309
1 9
17KAA0101----Y4
1 10
61K134WX00001BA
4 11
61K134WY00001BA
FIGURE 1
3
SCREW ST4.2*12
BOLT M6*35
STEEL WASHER
HEX. KEY WRENCH 4MM
BACK CUSHION
SEAT CUSHION
3
6
COURTYARD CREATIONS INC.
2
2
4
1
1
1
1
1
