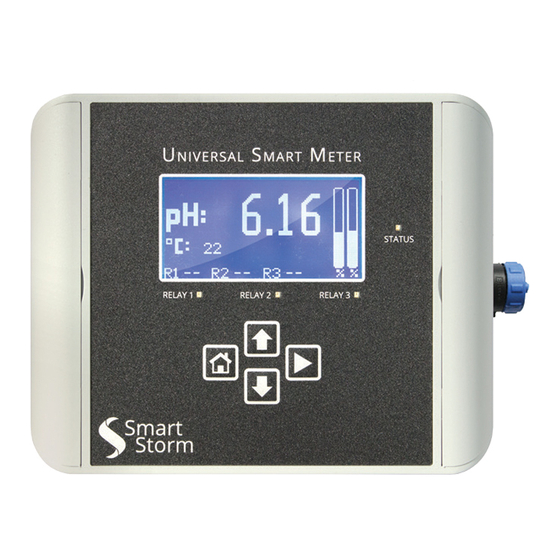

Summary of Contents for Smart Storm UNIVERSAL SMART METER

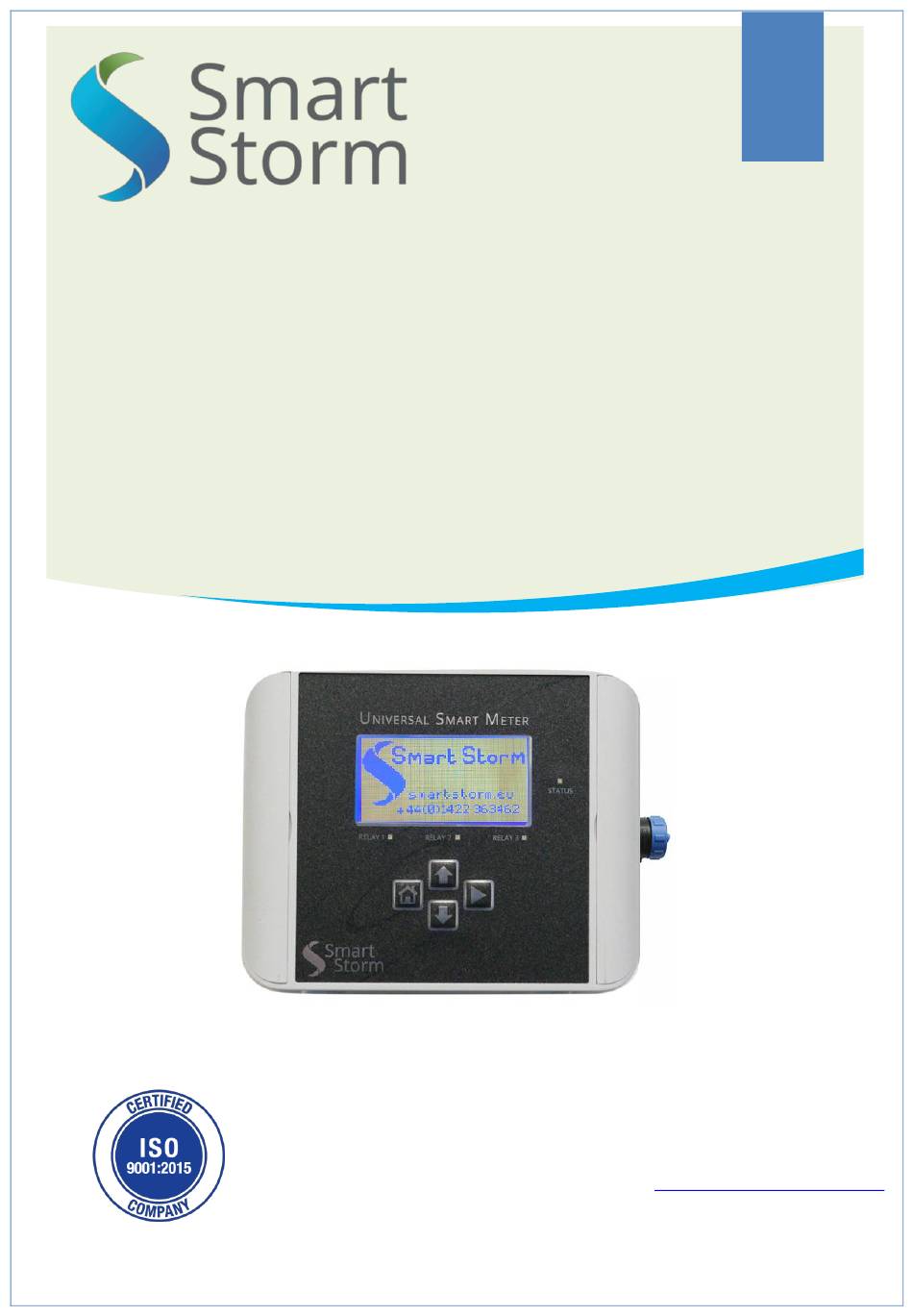

- Page 1 V 2.0 USM pH/ISE METER INSTRUCTION MANUAL 1 Lon Cae Darbi Cibyn Industrial Estate Llanberis Rd, Caernarfon Gwynedd, LL55 2BD T :(0)1422 363462 Enquiries@smartstormgroup.com Web : www.smartstormgroup.com UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 1 of...
-
Page 2: Table Of Contents
TEMPERATURE SET UP................28 4.6. MODBUS BMS SET UP................29 4.7. 4-20mA SET UP..................30 4.7.1. Typical 4-20mA SET UP for pH Balancing........... 31 UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 2 of... - Page 3 Table 1-1 Device Specification ................... 6 Table 4-1 Key Functionality ..................14 Table 4-2 Digital Probe Parameters................. 26 Table 6-1 Fault Finding.................... 45 Table 7-1ModBus Registers..................47 UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 3 of...
- Page 4 Figure 4-36 Relay Set Up Parameter Change............35 Figure 4-37 Relay Testing..................36 Figure 4-38 Time and Date Setting................36 Figure 4-39 Screen Saver Setting................37 UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 4 of...
- Page 5 Figure 5-6 Relay Page 1..................42 Figure 5-7 Relay Page 2..................42 Figure 5-8 4-20mA Screen..................43 Figure 5-9 Slope Configuration................43 Figure 5-10 Modbus Set Up Screen................. 44 UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 5 of...
-
Page 6: Specification
Enclosure Dimensions 160 mm x 130 mm x 60 mm Mounting Dimensions (including cable 185 mm x 155 mm x 60 mm glands, etc.) Table 1-1 Device Specification UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 6 of... -
Page 7: General Information
However, Smart Storm assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will the Smart Storm be liable for direct, indirect, special, incidental or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. -
Page 8: Use Of Hazard Information
This symbol, when noted on the product, identifies the location of the connection for Protective Earth (ground). This symbol, when noted on the product, identifies the location of a fuse or current limiting device. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 8 of... -
Page 9: Wiring And Handling Precautions
DANGER Ensure the relays are not subjected to loads great than 5 Amps as this will cause internal damage and possible product destruction. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 9 of... -
Page 10: About The Usm Ph/Ise Meter
3.1.2. Digital Probes. The following Digital probes can be used with the USM: • pH/Redox • Turbidity • Dissolved Oxygen • Conductivity C4E • Conductivity CTZ • TSS UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 10 of... - Page 11 UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 11 of...
-
Page 12: Usm Connections
The power connections for the probes are also available. CONN7 – provides the connection for the ISE probe including a PT100 temperature input and a connection for grounded probes. Figure 3-1 Relay Board Connections UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 12 of... -
Page 13: Turn On
3.3. TURN ON. When the unit is turned on a splash screen (Figure 1) will be shown detailing the contact details of Smart Storm. This will remain on for a few seconds while the USM measurements stabilise. Figure 3-2 Smart Storm Screen This will be followed automatically by the Home Screen (Figure 2). -
Page 14: Configuring The Usm
Action Scroll Right or Enter Scroll up, Increment Numbers Scroll down, Decrement Numbers Return to previous menu level or to Home Screen and Abort Table 4-1 Key Functionality UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 14 of... -
Page 15: Configuration Menu Access
If an incorrect password is entered 3 times the USM will lock the menu for 5 minutes. If PASSWORD is correct, access to The Configuration MENU page is granted. Figure 4-3 Configuration Menu Screen UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 15 of... -
Page 16: Configuration Menu
4-20mA output are not updated. if no key is pressed for 2 minutes the USM will exit the Configuration Menu and return to the Home Screen without saving any changes. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 16 of... -
Page 17: Analogue Probe Set Up
In the above example a buffer solution of pH 4 is being used. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 17 of... -
Page 18: Figure 4-6 Ph Calibration Buffer 1Sampling
After a few seconds the reading will stabilize and the screen will change Figure 4-7 pH Calibration Buffer 1 Stable. Press to accept the reading. The second point can now be calibrated. Figure 4-8 pH Calibration Buffer 2. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 18 of... -
Page 19: Figure 4-9 Ph Calibration Buffer 2 Stable
An ideal pH probe will have an offset (the mV reading in pH 7) of 0mV and a slope of -59.16 mV/pH @ 25ºC. pH probes are not ideal and will deteriorate over time and will eventually require replacing. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 19 of... -
Page 20: Figure 4-11 Ph Calibration Results Out Of Range
• Ensure that the probe is clean and dry before placing in the buffer solutions. • Ensure the buffer solution and clean and have been made correctly. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 20 of... -
Page 21: Redox Calibration
Ensure the probe is clean and dry and place it in the buffer solution, ensuring the bulb of the probe is completely submersed. Figure 4-14 Redox Sampling. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 21 of... -
Page 22: Calibration Of Other Ise Probes
Select two buffer solutions which fall within the probe limits shown in APPENDIX Figure 4-16 Select ISE Probe From the CALIBRATE PROBES screen use the buttons to select the probe type and press to confirm the selection. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 22 of... -
Page 23: Figure 4-17 Select Buffer A
Ensure the value is stable and press to save the reading. Figure 4-19 Select Buffer B. Use the buttons to select the Decade Buffer Solution B and press to confirm the selection. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 23 of... -
Page 24: Figure 4-20 Ise Sampling Of Buffer B
If the readings are correct press to proceed to the save data screen. Use the buttons to select YES and press to confirm the selection. The ISE probe is now calibrated. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 24 of... -
Page 25: Digital Probe Set Up
The displayed Parameters will be set to first two measurements returned from the probe – these can be changed in DISPLAY PARAMS. Press to return to the Digital Probe menu. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 25 of... -
Page 26: Display Parameters
The cursor will point at the Param2 value. Use the buttons to step through the available measurements and press to confirm the selection. Confirm the settings are to be saved before returning to the Digital Probe Menu. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 26 of... -
Page 27: Digital Probe Calibration
4.4.3. Digital Probe Calibration. 4.4.3.1. pH/Redox. 4.4.3.2. Turbidity. 4.4.3.3. Dissolved Oxygen. 4.4.3.4. Conductivity C4E. 4.4.3.5. Conductivity CTZ. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 27 of... -
Page 28: Temperature Set Up
If a Digital probe is detected an additional option is available (DIGITAL). This does not provide any compensation but displays the digital temperature on the Home Screen. N.B. After changing the temperature mode the probe must be re- calibrated. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 28 of... -
Page 29: Modbus Bms Set Up
The following Parameter options are available: 10 – 240 USM address: Baud Rate: 9,600, 19,200, 38,400, 57,600, 115200 UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 29 of... -
Page 30: 4-20Ma Set Up
Figure 4-28 4-20mA Status Screen. Use the buttons to select Output channel to be configured and press to confirm the selection. Figure 4-29 4-20mA Set UP Screen. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 30 of... -
Page 31: Typical 4-20Ma Set Up For Ph Balancing
The 4-20mA outputs may typically used to balance the pH of a discharged effluent stream. Channel 1 could be used to drive a Caustic dosing pump and Channel 2 to drive an Acid dosing pump. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 31 of... -
Page 32: 4-20Ma Test
420mA TEST OUTPUT and press to confirm the selection. Figure 4-32 4-20mA Testing Use the buttons to select the output to be tested and confirm press to confirm the selection. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 32 of... -
Page 33: Figure 4-33 Change The Ma Output
USM output. After testing is complete press Home key to return to the Configuration menu. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 33 of... -
Page 34: Relay Set Up
OFF) the Common to Normally Closed will be short circuit and the Common to Normally Open will be open circuit. buttons are used to select the parameter to be changed. The sequence is dictated by the selections and options available: UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 34 of... -
Page 35: Figure 4-36 Relay Set Up Parameter Change
The relay would remain ON until the pH rose above pH 5.2 (the OFF position). It can be seen that between the ON and the OFF position the state of the relay depends on whether the relay has been activated. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 35 of... -
Page 36: Relay Test
4.12. SET DATE AND TIME. To set the date and time, use the buttons to select Set DATE AND TIME and press to confirm the selection. Figure 4-38 Time and Date Setting. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 36 of... -
Page 37: Screen Save Mode
Software. The interval at which the measurements are logged can be set on the Logger Interval Screen. Use the buttons to select LOGGER INTERVAL and press confirm the selection. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 37 of... -
Page 38: Engineer Menu
4.15. ENGINEER MENU. The ENGINNERING MENU is used for the setting of factory calibrated parameters and should not be accessed. Contact Smart Storm if you require further details. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 38 of... -
Page 39: Usm Display Screens
Analogue/ISE Probe is selected and the USM is only being used with a Digital Probe the USM will display the Parameter 1 measurement from the Digital Probe. The temperature shown will be the temperature from the Digital Probe. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 39 of... -
Page 40: Figure 5-3 Digital Probe Only
4-20mA CHANNEL 1 STATUS SCREEN 4-20mA CHANNEL 2 STATUS SCREEN ANALOGUE PROBE CONFIGURATION SCREEN DATE AND TIME SCREEN COMMS CONFIGURATION SCREEN ABOUT USM SCREEN SMART STORM SPLASH SCREEN HOME UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 40 of... -
Page 41: Digital Probe Screen 1
Figure 5-5 Digital Probe Screen 2. If no probe is detected an error message (“Probe not detected”) will appear on the screen. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 41 of... -
Page 42: Relay Status Screens
Figure 5-7 Relay Page 2. The screen relay screen repeats the information for Relay 2 and additional shows Relay 3 (in this case the relay is not Enabled). UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 42 of... -
Page 43: 4-20Ma Screens
Figure 5-9 Slope Configuration. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 43 of... -
Page 44: Date And Time Screen
The current setting for the Modbus BMS (Building Management System) are displayed on this screen. See Appendix B for register information. 5.9. About USM. Displays the serial number and software release of the USM. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 44 of... -
Page 45: Fault Finding
Check the wiring of the 4- output 20mA output Relay not triggering at set Relay_x is DISABLED. Check the configuration of point Set points not reached the relay Table 6-1 Fault Finding. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 45 of... -
Page 46: Appendices
-59.16 -500mV @ 1900 ppm mV/dec 1000 ppm 0.4 ppm – -59.16 200mV @ Nitrate 6200 ppm mV/dec 1000 ppm 0.04 ppm – +59.16 Potassium 39000 ppm mV/dec UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 46 of... -
Page 47: Appendix B. Modbus Registers
XX 03 08 XXXX XXXX XXXX XX 03 0018 0004 XXXX XX 03 04 XXXX XXXX Table 7-1ModBus Registers. The maximum response time of the USM is 200ms. UNIVERSAL SMART METER-pH and ISE METER USER MANUAL v2.0 page 47 of... -
Page 48: Declaration Of Conformity
BS EN61010-1 Low Voltage 1993 We also declare that the products: Named above are of UK origin and are manufactured and tested to Smart Storm internal quality standards defined in the company’s formal ISO9001:2008 quality manual. Dr John Duffy Managing Director...
