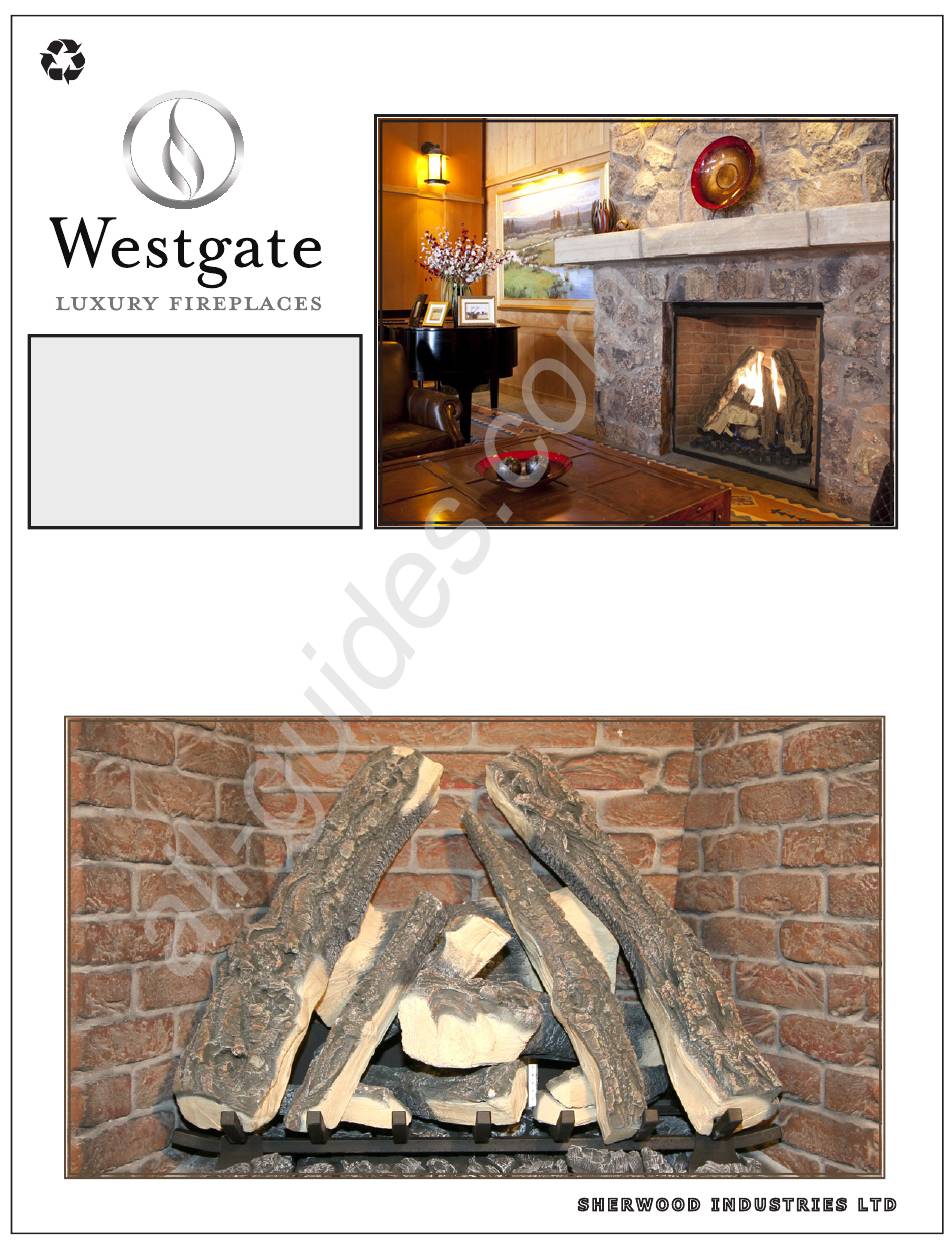

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
This publication is intended as a
guide for installers to help with the
assembly of the log set only.
Please refer to the Westgate DV62
Owner's Manual for specific, detailed
and complete information on
installation and operation.

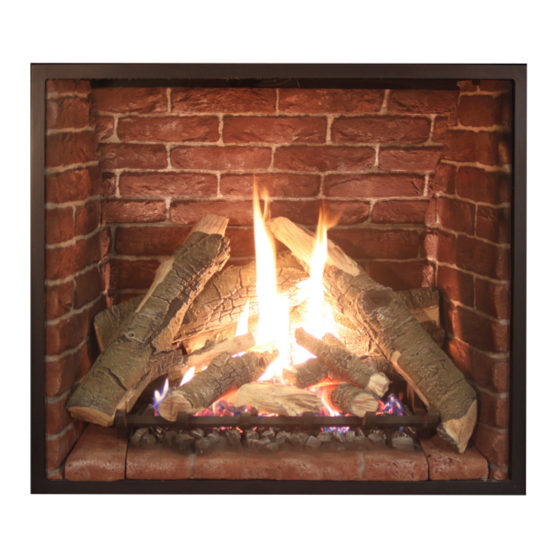

DV62
Log Set Installation
S H E R W O O D I N D U S T R I E S L T D

Advertisement

loading

Related Manuals for Westgate DV62

Summary of Contents for Westgate DV62

  • Page 1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE This publication is intended as a guide for installers to help with the assembly of the log set only. Please refer to the Westgate DV62 Owner’s Manual for specific, detailed and complete information on installation and operation.

  • Page 2: Log Set Installation

    All manuals and user guides at all-guides.com nStaLLatIon Each log is numbered 1 through 10 to assist in the log set assembly. (Logs are not assembled in # sequence.) Groove Locating Hole Grate Pin Tab 1. Install Log #8. Place the locating groove on the rear end of log #8 onto the grate. Insert the pin hole on the front end of log #8 into the pin tab at the center of the grate...
  • Page 3 All manuals and user guides at all-guides.com Locating Groove Fits Here Groove Rests Here 2. Install Log #7. Place the locating groove on the Log #8 in position rear end of log #7 onto the grate. Ridge Locating Hole Pin Tab Lean the front end of Log #7 up against the ridge 3.
  • Page 4 All manuals and user guides at all-guides.com Log #9 in position The bottom of Log #9 should be parallel to the top of the riser. Groove 2 Tab 2 Groove 1 Tab 1 4. Install Log #5. Fit the 2 locating grooves on Log #5 onto the 2 tabs on the left side of the grate. Log #5 in position...
  • Page 5 All manuals and user guides at all-guides.com Groove 1 Tab 1 5. Install Log #6. Fit the 2 locating grooves on Log #5 onto the 2 tabs on the right side of the grate. Groove 2 Tab 2 Log #6 in position...
  • Page 6 All manuals and user guides at all-guides.com Notch Groove Groove Grate 6. Install Log #10. Fit the rear of Log #10 onto the 7. Install Log #2. Place the bottom of Log #2 onto the groove at the rear of Log #8. Place the front of Log grate.
  • Page 7 All manuals and user guides at all-guides.com Groove Grate 8. Install Log #1. Place the groove on the bottom of Rest the top of Log #1 onto Log #9. Log #1 onto the grate. Groove Groove Grate Place the top of Log #4 into the groove of Log #10 9.
  • Page 8 All manuals and user guides at all-guides.com Groove Grate 10. Install Log #3. Place the groove on the bottom Log #4 in position of Log #3 onto the grate. Rest the top of Log #3 onto the logs behind it. Log #3 in position...
  • Page 9 All manuals and user guides at all-guides.com Completed Log Set...
