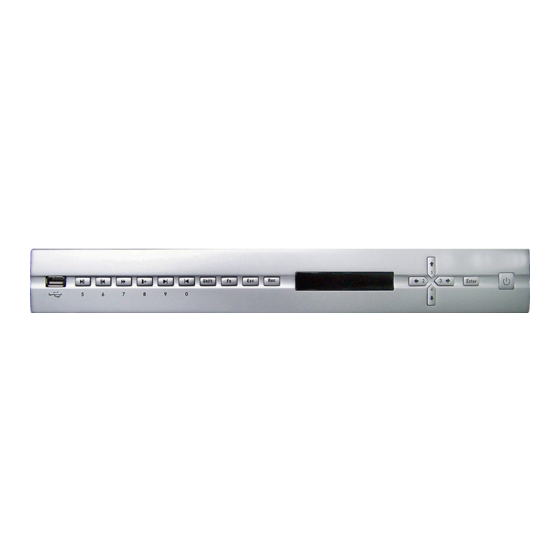

Standalone DVR User's Manual
Max 4
©2009 IC Realtime, Inc.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Max 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IC Realtime Max 4

Summary of Contents for IC Realtime Max 4

  • Page 1 All manuals and user guides at all-guides.com Standalone DVR User’s Manual Max 4 ©2009 IC Realtime, Inc.

  • Page 2: Table Of Contents

    Check Unpacked DVR ........................19 Check Unpacked DVR Check Unpacked DVR Check Unpacked DVR HDD Installation ........................... 19 HDD Installation HDD Installation HDD Installation Choose HDDs..........................19 3.2.1 Calculate HDD Size........................19 3.2.2 HDD Installation ..........................19 3.2.3 ©2009 IC Realtime, Inc.
  • Page 3 Login, Logout & Main Menu Login, Logout & Main Menu Login, Logout & Main Menu Login ..............................28 4.1.1 Main Menu ............................28 4.1.2 Logout............................... 29 4.1.3 4.1.4 Auto Resume after Power Failure ....................29 Replace CMOS Battery........................29 4.1.5 ©2009 IC Realtime, Inc.
  • Page 4 4.9.1Preset Setup ............................49 4.9.2 Activate Preset............................. 50 4.9.3 Patrol setup (Tour Setup)........................50 4.9.4 Activate Patrol (tour) ........................... 50 4.9.5 Pattern Setup ............................50 4.9.6 Activate Pattern Function ........................51 4.9.7 Auto Scan Setup ..........................51 ©2009 IC Realtime, Inc.
  • Page 5 5.5.5 Auto Maintain........................... 71 5.5.6 TV Adjust............................72 5.5.7 Information Information............................72 Information Information HDD Information ..........................73 5.6.1 BPS ..............................73 5.6.2 Log ..............................73 5.6.3 Version ............................. 74 5.6.4 Online Users ............................ 74 5.6.5 ©2009 IC Realtime, Inc.
  • Page 6 7.3.1 System Information................Error! Bookmark not defined. 7.3.2 Setting....................Error! Bookmark not defined. Playback Playback.....................Error! Bookmark not defined. Playback Playback Download ..................Error! Bookmark not defined. 7.4.1 7.4.2 Watermark..................Error! Bookmark not defined. Event......................Error! Bookmark not defined. Event Event Event ©2009 IC Realtime, Inc.
  • Page 7 LIST .... ERROR! BOOKMARK NOT DEFINED. APPENDIX C APPENDIX C APPENDIX C APPENDIX C COMPATIBLE CD/DVD BU COMPATIBLE CD/DVD BU COMPATIBLE CD/DVD BU COMPATIBLE CD/DVD BURNER LIST RNER LIST RNER LIST RNER LIST.. ERROR! BOOKMARK NOT DEFINED. ©2009 IC Realtime, Inc.
  • Page 8 Here you can find information about this series DVR, its features and functions, as well as a detailed menu tree. Before installation and operation, please read the following safeguards and warnings carefully! ©2009 IC Realtime, Inc.
  • Page 9 Before installation, open the package and check that all the below listed components are included: One power cable One Ethernet cable One remote control (batteries included) One USB mouse Contact your local retailer ASAP if something is missing in your package. ©2009 IC Realtime, Inc.

  • Page 10: Features And Specifi Features And Specifications Features And Specifi Cations

    4-Channel, BNC, 1.0Vp-p, 75Ω Video Output 2-channel TV output BNC, 1.0Vp- p, 75 ; 1 VGA output Video Standards PAL（625Line，50f/s），NTSC（525Line，60f/s） Video Compression H.264 Video Resolution Format NTSC D1(4CIF) 704*480 704 * 576 352 *240 352 *288 ©2009 IC Realtime, Inc.
  • Page 11 Time/Date, Alarm, Motion Detection & exact search (accurate to second) Playback 4-channel playback simultaneously, Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection. ©2009 IC Realtime, Inc.
  • Page 12 Two USB 2.0 ports, one for mouse control, one for backup RS232 Keyboard, PC communication RS485 PTZ control Environmental Power Consumption Working Temperature 0℃~＋55℃ (14°F ~ 130°F) Working Humidity 10%~90% Atmosphere Pressure 86kpa~106kpa Dimension 1U, 375x285x45mm (W*D*H) Weight 3.25Kg Mounting Desktop or rack ©2009 IC Realtime, Inc.

  • Page 13: Overview And Controls S S S

    In text box: input number 0. In input mode, switch between numeral/character and other function keys. Shift Shift In four-window preview mode, it can work as Fn button. In 1-ch monitor mode: pop up assistant function：PTZ Assistant control and Video color ©2009 IC Realtime, Inc.

  • Page 14: Rear Panel

    Turn shuttle (outer ring) clockwise to navigate right, counter clockwise to navigate left. Turn jog (Inner dial) clockwise to navigate down, counter clockwise to navigate up. 2.2 Rear Panel Rear Panel Rear Panel Rear Panel 2.2.1 Overview Please refer to ©2009 IC Realtime, Inc.

  • Page 15: Connection Sample

    Please pay attention to the ethernet connection, you need to use crossover cable to connect DVR to PC. You need to use straight-throught to connect DVR via hub or switch. 2.2.2 Connection Sample Here is a connection sample for your reference. See Figure 2-3. ©2009 IC Realtime, Inc.

  • Page 16: Remote Control

    All manuals and user guides at all-guides.com Figure 2-3 2.3 Remote Con Remote Con Remote Control Remote Con trol trol trol The remote control interface is shown as in Figure 2-4. Figure 2-4 Serial Number Function remote switch ©2009 IC Realtime, Inc.

  • Page 17: Mouse Control

    During playback, double click a file to start the selected playback. click mouse In multiple-window mode, double click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. ©2009 IC Realtime, Inc.

  • Page 18: Virtual K Virtual Keyboard & Front Panel Virtual K Eyboard & Front Panel

    Click that button to switch between numbers and letters. Use > or < to shift between small characters and capitalized characters. 2.5.2 Front Panel Move the cursor to the text column. Click Fn key and use direction keys to select the desired number. Press enter button to input, once finished. ©2009 IC Realtime, Inc.

  • Page 19: Installation And Connections Installation And Con Nections

    Data ribbons and fastening screws are provided in the accessory box. Please follow the instructions below to install hard disk. 1. Loosen the screws of the upper cover. 2. Remove the HDD bracket from internal unit. ©2009 IC Realtime, Inc.

  • Page 20: Desktop And Rack Mounting

    Supply Supply Supply Please check the input voltage and device power button is match or not. We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral equipments operation such as cameras. ©2009 IC Realtime, Inc.

  • Page 21: Connecting Video Input And Output Devices Co Co Nnecting Video Input And Output Devices

    “FN2” or Shift on the front panel for about 5 seconds, in order to change display modes. NOTE: Video output 1 and VGA can’t display at the same time. But Video output 2 can display properly with Video Output 1 or VGA. ©2009 IC Realtime, Inc.

  • Page 22: Connecting Audio Input & Output, Bidirectional Audio

    2. Make sure the audio connector is wired as follows: 3. Connect a line input device or pre-amplified microphone to the audio connector for the video channel on the rear panel. Please refer to Error! Reference source not found.. Figure 3-3 ©2009 IC Realtime, Inc.

  • Page 23: Alarm Input And Relay Output

    Please refer to Figure 3-5 for more information. Figure 3-5 3.6.5 Alarm Input and Output Details You can refer to the following sheet and Figure 3-6 for more information. Parameter 0404 L(N)(Grounding Alarm) Ground line C1/O1:C2/O2 These are two alarm output ports(Normal Open) ©2009 IC Realtime, Inc.

  • Page 24: Relay Output Description

    12 V power to the alarm detector such as the smoke detector. Use the same ground with that of DVR if you use external power to the alarm device. Figure 3-7 3.6.6 Relay Output Description 4 ways relay alarm output. Provide external power to external alarm device. ©2009 IC Realtime, Inc.
  • Page 25 30VDC 2A, 125VAC 1A （resistance Maximum switch power 125VA 160W load） Maximum switch voltage 250VAC, 220VDC Maximum switch currency Insulation between touches with 1000VAC 1minute 50/60Hz same polarity 1000VAC 1minute 50/60Hz between touches with different polarity ©2009 IC Realtime, Inc.

  • Page 26: Rs485

    3. Follow the instructions for configuring a camera to enable each PTZ device on the DVR. Formatted: Bullets and Numbering Other Interfaces Other Interfaces Other Interfaces Other Interfaces There are still other interfaces on the DVR, such as USB ports. You can refer to the Figure 3-10 for more information. ©2009 IC Realtime, Inc.
  • Page 27 All manuals and user guides at all-guides.com Figure 3-10 ©2009 IC Realtime, Inc.

  • Page 28: Menu

    After you logged in, the main menu is shown as in Figure 4-2. There are total six icons: search, information, setting, backup, advanced and shutdown. You can move the cursor to highlight the icon, and then left click mouse to enter the sub-menu. ©2009 IC Realtime, Inc.

  • Page 29: Logout

    Please make sure to use battery model CR-2032. We recommend you replace it regularly (such as once every 2-3 years) to guarantee system time accuracy. 4.2 Record Recording O ing Operation peration Record Record ing O ing O peration peration 4.2.1 Live Viewing ©2009 IC Realtime, Inc.

  • Page 30: Manual Record

    Figure 4-5 4.2.2.3 Enable/disable record Check current channel status: “○” means it is not in recording status, “●” means it is in recording status. Use either the mouse or the directional keys to highlight a channel number. ©2009 IC Realtime, Inc.
  • Page 31 You will see the recording LED light on the front panel turn on, and the system will begin manual recording. Figure 4-8 4.2.2.5 Stop all channel recording Highlight “ALL” after “Stop”. See Figure 4-9. ©2009 IC Realtime, Inc.

  • Page 32: Search & Playback

    & Playback & Playback 4.3.1 Search Menu There are two ways for you to go to search menu. Click Pause/Play, in the remote control. Click search in the main menu. The search screen is shown below ©2009 IC Realtime, Inc.
  • Page 33 All manuals and user guides at all-guides.com Figure 4-10. Usually there are three file types: R: regular recording file. A: external alarm recording file. M: motion detection recording file There are several playback windows. The DVR support 1/4-ch playback ©2009 IC Realtime, Inc.

  • Page 34: Basic Operation

    4.3.2.5 File backup You can backup directly from the search menu. You can draw a √ before the file name (multiple choices) and click backup to start the backup process. (Button 14 ©2009 IC Realtime, Inc.
  • Page 35 In playback mode, click play/pause, frame by frame slowly turn the jog (inner dial) clock-wise to view frame by frame, counter clock wise to view 1 frame playback. 4.3.2.8 Backward playback and frame by frame playback ©2009 IC Realtime, Inc.

  • Page 36: Calendar

    Note: All the operations here (such as playback speed, channel, time and progress) have relationship with hardware version. Some series DVRs do not support some functions or playback speeds. 4.3.3 Calendar Click the calendar icon ©2009 IC Realtime, Inc.

  • Page 37: Record Setup (Schedule)

    Week day: There are eight options: ranges from Saturday to Sunday and all. Record types: There are three types: regular, motion detection (MD) and Alarm. Please highlight icon to select the corresponding function. ©2009 IC Realtime, Inc.

  • Page 38: Detect Detect

    “save” to save and the system will go back to the previous menu. Note: In motion detection mode, you can not use the copy/paste feature to set channel setup. The recorded video option of each channel may not be the same. ©2009 IC Realtime, Inc.
  • Page 39 Click Fn to switch between active/passive motion detection. The red grid squares are your active motion zones – everything else is a passive zone. After competing setup, please press enter to exit or right click to return to the previous menu Figure 4-13 Figure 4-14 ©2009 IC Realtime, Inc.

  • Page 40: Video Loss

    You can enable alarm output channel and then enable show message function also. Channel: select the channel you want to configure for motion detection. Event type: from the dropdown list you can select the detection type. ©2009 IC Realtime, Inc.

  • Page 41: Camera Masking

    Event type: from the dropdown list you can select the detection type. Record Channel: select the channel to activate recording function once the detection occurs. Make sure you have set MD record in the schedule menu (Main Menu->Setting->Schedule ©2009 IC Realtime, Inc.

  • Page 42: Alarm Setup And Alarm Activation

    4.6.1 Alarm Menu From the main menu, navigate from Setting then to Alarm. You can see an interface is shown as in Figure 4-20. 4.6.2 Alarm setup Alarm interface is shown as below. See Figure 4-20. ©2009 IC Realtime, Inc.
  • Page 43 Please go to chapter 5.3.9 Display for tour interval setup. Please highlight icon to select the corresponding option. After completing all the setups please click save button, system goes back to the previous menu. Figure 4-20 ©2009 IC Realtime, Inc.

  • Page 44: Backup Backup

    Chapter 7: Web Client Operation for network downloads & backup operations. 4.7.1 Detect Device Click backup button, you can see an interface is shown as in Figure 4-24. Here is for you to view devices information. ©2009 IC Realtime, Inc.

  • Page 45: Backup

    After the backup completed, you can see a dialogue box prompting successful backup. Figure 4-25 Click start, and the system will begin burning. At the same time, the start button becomes stop button. You can view the remaining time and process bar at the bottom left. ©2009 IC Realtime, Inc.

  • Page 46: Ptz Control And Color Setup

    Note: The camera video should be in the current screen. Before setup, please check the following connections are correct: PTZ and decoder connection is in place. Decoder address setup is right. Decoder A (B) line connects with DVR A (B) line. ©2009 IC Realtime, Inc.
  • Page 47 “Fn” on the remote control) to highlight pan/tilt/zoom sub menu. See Figure 4-28. Figure 4-28 Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-29. Speed: value ranges fro 1 to 8. Zoom Focus Iris Click icon to adjust zoom, focus and iris. ©2009 IC Realtime, Inc.

  • Page 48: Intelligent Positioning Key

    Preset Preset atrol atrol attern attern /Scan /Scan In Figure 4-29, click the “set” button. The interface is shown as below. See Figure 4-32. Here you can set the following items: Preset Tour (Patrol) Pattern Border ©2009 IC Realtime, Inc.

  • Page 49: 1Preset Setup

    In Figure 4-29, use the eight directional arrows to adjust camera to the proper position. In Figure 4-32, click preset button and then input the desired preset number. The interface is shown as in Figure 4-34. Now you can add this preset to one tour. ©2009 IC Realtime, Inc.

  • Page 50: Activate Preset

    The interface is shown as in Figure 4-36. Then you can go to Figure 4-29 to modify zoom, focus, and iris. Go back to Figure 4-36 and click “end” button. Now you can memorize all these operations as pattern 1. System supports max 255 patterns. ©2009 IC Realtime, Inc.

  • Page 51: Activate Pattern Function

    Flip Flip In Figure 4-33, click page switch button, you can see an interface is shown as below. Figure 4-38. Here you can set auxiliary functions. Clicking page switch again, system goes back to Figure 4-29. ©2009 IC Realtime, Inc.
  • Page 52 All manuals and user guides at all-guides.com Figure 4-38 ©2009 IC Realtime, Inc.

  • Page 53: Understanding The Menu: Operation And Co Understanding The Me Nu: Operation And Control Nu: Operation And Co Ntrol

    After you are logged in, the system main menu is shown as below. See Figure 5-1 . There are a total six icons: Search, Information, Setting, Backup, Advanced and Shutdown. Move the cursor to highlight the icon and then left click mouse to enter its sub-menu. ©2009 IC Realtime, Inc.

  • Page 54: Setting

    In Figure 5-4, click date button, you can see an interface is shown as in Figure 5-5. Here you can set the start time and end time by setting the corresponding date setup. ©2009 IC Realtime, Inc.
  • Page 55 Note: Since system time is very important, do not modify time unless there is a must! After completing all the setups please click save button, system goes back to the previous menu. Figure 5-3 Figure 5-4 ©2009 IC Realtime, Inc.

  • Page 56: Encode

    Channel display: You can select whether the system displays channel number or not when you playback. System default setup is: Channel:1 Compression:H.264 Resolution: CIF Bit rate: CBR Quality: 6 Frame rate: 30f/s Please highlight icon to select the corresponding function. ©2009 IC Realtime, Inc.

  • Page 57: Schedule

    Baud rate: You can select proper baud rate. Data bit: You can select proper data bit. Stop bit: There are three values: 1/1.5/2. Parity: there are three choices: none/odd/even. After completing setup, click save button. The system will return to the previous menu. ©2009 IC Realtime, Inc.

  • Page 58: Network

    Transfer mode: Here you can select the priority between fluency/video qualities. Network download: System can process the downloaded data first if you enable this function. After completing setup, click save. The system will return to the previous menu. ©2009 IC Realtime, Inc.
  • Page 59 DVR. System supports a maximum of 64 IP addresses. Please note after you enabled this function, only the IP listed below can access current DVR. If you disable this function, all IP addresses can access current DVR. ©2009 IC Realtime, Inc.
  • Page 60 224.0.0.4 DVMRP router 224.0.0.5 OSPF router 224.0.0.13 PIMv2 router Administrative scoped addressees -239.0.0.0-239.255.255.255 -Private address space Like the single broadcast address of RFC1918 Can not be used in Internet transmission Used for multiple cast broadcast in limited space. ©2009 IC Realtime, Inc.
  • Page 61 New Deli GMT+5 Bangkok GMT+7 Beijing (Hong Kong) GMT+8 Tokyo GMT+9 Sydney GMT+10 Hawaii GMT-10 Alaska GMT-9 Pacific Time(P.T) GMT-8 American Mountain Time(M.T) GMT-7 American Central Time(C.T) GMT-6 American Eastern Time(E.T) GMT-5 Atlantic Time GMT-4 Brazil GMT-3 ©2009 IC Realtime, Inc.
  • Page 62 Now you can open DDNSServer web search page. Figure 5-15 5.3.5.7 Alarm Server You can configure the alarm in accordance with different alarm protocols. System can inform the alarm server when alarm occurs. See Figure 5-16. ©2009 IC Realtime, Inc.
  • Page 63 The system also supports the upload of multiple DVRs to one FTP server. You can create multiple folders under this FTP. In Figure 5-9, select FTP and then double click mouse. You can see the following interface. See Figure 5-19. ©2009 IC Realtime, Inc.
  • Page 64 When interval value is 0, the system will upload all corresponding files. Period 1 and period 2: you can set two periods: one for each recording type. System file name is shown as in Figure 5-21. ©2009 IC Realtime, Inc.

  • Page 65: Alarm

    Time display: You can select to display time or not when the system is in playback. Channel display: You can select to channel name or not when the system is in playback. ©2009 IC Realtime, Inc.
  • Page 66 In Figure 5-23, click modify button after channel. You can see an interface is shown as in Figure 5-24. Please note all your modification here applies to the local display only. You need to refresh web or client-end to get the latest channel name. System max support 25-digital character. ©2009 IC Realtime, Inc.

  • Page 67: Default

    After completing all the setups please click save button, system goes back to the previous menu. Warning! System menu color, language, time display mode, video format, and IP address will not maintain previous setup after default operation! ©2009 IC Realtime, Inc.

  • Page 68: Search

    Here you can view and manage hard disks. See Figure 5-28. You can set proper mode for each hard disk from the dropdown list. After completing all the setups please click save button, system needs to reboot to get all the modification activated. ©2009 IC Realtime, Inc.

  • Page 69: Abnormity

    1 to 6. Delay value is from 0 to 240 seconds. After completing setup, click save. The system will need to reboot to apply the changes. Figure 5-29 5.5.2 Abnormity The Abnormity interface is shown as in Figure 5-30. ©2009 IC Realtime, Inc.

  • Page 70: Alarm Output

    Here you can manually configure alarm outputs. Please highlight icon to select the corresponding alarm output. See Figure 5-31. After completing setup, click OK. Figure 5-31 5.5.4 Manual Record Please refer to Chapter 4.2.2 manual record. ©2009 IC Realtime, Inc.

  • Page 71: Account

    5.5.6 Auto Maintain Here you can configure auto-reboot time and the auto-delete of old files. See Figure 5-33. You can select the options from the dropdown list. Please click O.K button after you completed the setup. ©2009 IC Realtime, Inc.

  • Page 72: Tv Adjust

    5.6 I I I I nformation nformation nformation nformation Here you can view system information. There are a total of five submenus: HDD (hard disk information), BPS (data stream statistics), Log and version, and online user. See Figure 5-35. Figure 5-35 ©2009 IC Realtime, Inc.

  • Page 73: Hdd Information

    Figure 5-36 5.6.2 BPS Here you can view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 5-37. Figure 5-37 5.6.3 Log Here you can view system log file. See Figure 5-38. ©2009 IC Realtime, Inc.

  • Page 74: Version

    Alarm out System version: Build Date Figure 5-39 5.6.5 Online Users Here you can manage online users. See Figure 5-40. You can disconnect one user or block one user if you have the appropriate system rights. ©2009 IC Realtime, Inc.
  • Page 75 Logout menu user: log out menu. You need to input password when you login the next time. Restart application: reboot DVR. Shutdown: system shuts down and turns off power. Restart system: system begins rebooting. Switch user: you can use another account to log in. Figure 5-41 ©2009 IC Realtime, Inc.
  • Page 76 See Figure 6-4 . Click the center to activate this option. The system should now go back to the single screen mode without the graphical directional pad. Drag the mouse in the screen to adjust section size. ©2009 IC Realtime, Inc.
  • Page 77 In Figure 6-2, click the page switch button you can see an interface is shown as in Figure 6-6. Here you can activate the following functions: Preset Tour(Patrol) Pattern Auto scan Auto pan Flip Page Switch ©2009 IC Realtime, Inc.
  • Page 78 6.2.3 Tour Setup In Figure 6-5, click Patrol button, you can see an interface is shown as in Figure 6-8. Input preset number and then add this preset to one patrol (tour). Figure 6-8 ©2009 IC Realtime, Inc.
  • Page 79 Click stop button to terminate scan operation. 6.2.9 Flip In Figure 6-6, click page switch button, you can see an interface is shown as below. Figure 6-11. Here you can set auxiliary function. ©2009 IC Realtime, Inc.
  • Page 80 All manuals and user guides at all-guides.com Click page switch button again, system goes back to Figure 6-2. Figure 6-11 ©2009 IC Realtime, Inc.
  • Page 81 Figure 7-1 Your browser will prompt you to install “webrec.cab” Click on the information bar, and choose install. If you can’t download the ActiveX file, modify your security settings as follows. See Figure 7-2. ©2009 IC Realtime, Inc.
  • Page 82 After installation, you will have the interface shown below. See Figure 7-3. Input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, you should modify your password after your first login. Figure 7-3 ©2009 IC Realtime, Inc.
  • Page 83 Figure 7-4 Preview window switch. The system supports 1/4/8/9/16-window real-time preview. You will need proper rights to view preview modes.. See Figure 7-5. Figure 7-5 Section1 Section 3 Section 2 Section 4 Section 5 Figure 7-6 ©2009 IC Realtime, Inc.
  • Page 84 5: Audio: Turn on or off audio. (It has no relationship with recording the audio) 6: Close video. Refer to Figure 7-8 for main stream information. Figure 7-8 Refresh You can use this button to refresh camera list. ©2009 IC Realtime, Inc.
  • Page 85 Click the PTZ button, you will see the interface shown in Figure 7-10 . You can click this icon to display or hide the PTZ control platform. Figure 7-10 7.2.2.1 Direction Key In Figure 7-10, there are eight direction keys. ©2009 IC Realtime, Inc.
  • Page 86 Iris close Open Click the triangle icon in Figure 7-10, you will see the following interface. See Figure 7-11. Figure 7-11 In Figure 7-11, click PTZ set, you will see the following interface. See Figure 7-12. ©2009 IC Realtime, Inc.
  • Page 87 In Figure 7-12, input an auto tour value and a preset value. Click add to set the preset in the tour. By repeating the above procedures you can add more presets in one tour. 7.2.2.8 Assistant You can select the assistant item from the dropdown list. See Figure 7-13. ©2009 IC Realtime, Inc.
  • Page 88 Alternatively, you can click default, to use the default color setup. Figure 7-14 7.2.4 Picture Path and Record Path Click more, in Figure 7-14, and you will see the interface shown in Figure 7-15. Figure 7-15 ©2009 IC Realtime, Inc.
  • Page 89 Figure 7-18 Left click your mouse and then drag it to the channel control status bar. You will notice the two menus interface switched positions. See Figure 7-19. You can compare the following interface with Figure 7-6. ©2009 IC Realtime, Inc.
  • Page 90 Setup Setup In the main window, click Setup; you will see an interface as shown in Figure 7-20. Figure 7-20 7.3.1 System Information Click device configuration, and you will see the following interface. See Figure 7-21. ©2009 IC Realtime, Inc.
  • Page 91 Click version, and you will see corresponding HDD information for reference. See Figure 7-22. Figure 7-22 HDD Information Here you can view the number of HDD’s, HDD status, total volume and free space. See Figure 7-23. ©2009 IC Realtime, Inc.
  • Page 92 System time: This is where you can modify the system time. click ‘Save’ after your changes Date format: Here you can select the date format from the dropdown list. Data separator: select separator such as – or /. ©2009 IC Realtime, Inc.
  • Page 93 Frame rate: The value ranges from 1f/s to 25f/s (PAL) and 1f/s to 30f/s (NTSC). Compression: There is one option: H.264 Resolution: D1/HD1/DCIF/CIF Quality: The value ranges from 1 to 6. The level 6 is the best video quality. ©2009 IC Realtime, Inc.
  • Page 94 Period: There are six periods for you to define. Click set, next to the corresponding period. See Figure 7-28. note The setup here is based on a 24 hour cycle. E.g. 00.00 to 24.00. ©2009 IC Realtime, Inc.
  • Page 95 Figure 7-27 Figure 7-28 Tip: After you finished setup for one channel, you can click “save as”, which will pop up the following interface. See Figure 7-29.Now you can copy one channels setup to additional channels. ©2009 IC Realtime, Inc.
  • Page 96 Once finished, click save. You will need to restart to activate your configuration. After rebooting, the DVR will connect to the internet automatically. The IP displayed in the IP address item is the public IP address. You can use client-end software to visit current IP now. Figure 7-30 ©2009 IC Realtime, Inc.
  • Page 97 The keyboard setting is for a special keyboard to control the device. Baud rate: You can select proper baud rate. Data bit: You can select proper data bit. Stop bit: There are three values: 1/1.5/2. Parity: there are three choices: none/odd/even. ©2009 IC Realtime, Inc.
  • Page 98 All manuals and user guides at all-guides.com Figure 7-32 Multi-DDNS Here you can select a DDNS type to run updates with. See Figure 7-33. Figure 7-33 ©2009 IC Realtime, Inc.
  • Page 99 When interval value is 0, the system will upload all corresponding files. Time period: Click set, you will see an interface as in Figure 7-35. You can check the box to select the file type. System supports multiple choices. Figure 7-34 Figure 7-35 ©2009 IC Realtime, Inc.
  • Page 100 The value ranges from 10-300 seconds. Tour: Here you can enable the tour function once an alarm occurs. It is a one- window tour (full-screen): Please go to chapter 5.3.9 Display for tour interval setup. Figure 7-36 ©2009 IC Realtime, Inc.
  • Page 101 The system supports multiple-window tours. Go to chapter 5.3.9 Display for tour interval setup. PTZ activation: Click set; you will see an interface as shown in Figure 7-42. The system can go to a corresponding preset when the alarm occurs. ©2009 IC Realtime, Inc.
  • Page 102 All manuals and user guides at all-guides.com Figure 7-38 Figure 7-39 ©2009 IC Realtime, Inc.
  • Page 103 All manuals and user guides at all-guides.com Figure 7-40 Figure 7-41 Figure 7-42 ©2009 IC Realtime, Inc.
  • Page 104 Here you can export or import configuration information. See Figure 7-44. Save configuration data: Click export config, to save the current setup as a .CFG file. See Figure 7-45. Load configuration data: Click import config, to load a .CFG setup file. ©2009 IC Realtime, Inc.
  • Page 105 Account Record control HDD management Video matrix Snap & watermark Auto maintain Account Account interface is shown as in Figure 7-46. Here you can add/delete users, add/delete groups, modify user or group rights, modify users passwords. ©2009 IC Realtime, Inc.
  • Page 106 To add a group, click add group, and you will see the following interface. See Figure 7-47. Here you can add one new group, and then select corresponding rights for the users contained within this group. ©2009 IC Realtime, Inc.
  • Page 107 Here you can input a new username and password, and also select corresponding rights. Note: Your user and pass have a max limit of 6 characters and are case sensitive! Also note that user permissions cannot exceed the group permissions which they are a part of. ©2009 IC Realtime, Inc.
  • Page 108 Alarm output channel: Here you can select an alarm output channel to trigger. The DVR output channel can not support a large overload (It must be less than 1A). Too heavy of a current may result in relay damage. Use contactor if necessary. ©2009 IC Realtime, Inc.
  • Page 109 Select the HDD first, and then you can see the items on your right have become enabled. You can check the corresponding option here. See Figure 7-50. After you have completed setup, click control HDD – you will see the DVR restart itself. ©2009 IC Realtime, Inc.
  • Page 110 Figure 7-50 Auto maintenance Auto maintenance interface is shown as in Figure 7-51. Here you can enable/disable auto reboot or the auto deletion of old files. The DVR needs to support this operation to function properly. ©2009 IC Realtime, Inc.
  • Page 111 Figure 7-52 Snap & Watermark Snap & watermark interface is shown as in Figure 7-53. The DVR needs to support this function to work properly. ©2009 IC Realtime, Inc.
  • Page 112 Once you’ve chosen a time, date, and channel, click on ‘search’. The results will appear as in Figure 7-54. Use page up/down key to view the search results. Double click the file name to start the playback. Figure 7-54 ©2009 IC Realtime, Inc.
  • Page 113 5: Fast play Figure 7-55 7.4.1 Download Select one or more files you want to download and then click download. The System will pop up a dialogue box asking you to specify a destination directory. See Figure 7-56. ©2009 IC Realtime, Inc.
  • Page 114 Click watermark, to see an interface is shown as in Figure 7-58. Here you can select local recorded file and then click verify, to check watermark information. You can see corresponding information in the watermark juggle column. ©2009 IC Realtime, Inc.
  • Page 115 7.5 Event Event Event Event Here you can set alarm type and alarm prompt audio file. See Figure 7-59. Figure 7-59 7.6 Info Info Info Info Click info to view current web client information. See Figure 7-60. ©2009 IC Realtime, Inc.
  • Page 116 C C C C ontrol ontrol ontrol ontrol You can use web un-install tool “uninstall web.bat” to un-install web control. Note, before you un-install, close all web pages first. Otherwise the un- installation may result in error. ©2009 IC Realtime, Inc.
  • Page 117 If it is your first time to use the system, click on ‘add’ to add your device. The defaulted central control server is named ‘Local’. System default username and password are both admin. Note: For security reasons, we recommend you modify the password after your first login. ©2009 IC Realtime, Inc.
  • Page 118 DVR you wish to connect to. Once finished, select ‘save’ in the upper right part of your screen. For more information about this operation and more about this software, please refer to its own manual. ©2009 IC Realtime, Inc.
  • Page 119 All manuals and user guides at all-guides.com ©2009 IC Realtime, Inc.
  • Page 120 Select a window on you left side (Section-2) and then double click the channel name on you right hand (Section-6), you will notice the corresponding video in the highlighted window. Please refer to Figure 8-4 for connection/disconnection information. ©2009 IC Realtime, Inc.
  • Page 121 All manuals and user guides at all-guides.com Connected channel Disconnected channel Figure 8-4 Figure 8-5 Add device Add organization structure ©2009 IC Realtime, Inc.
  • Page 122 DVRs (Navigate from Main Menu Settings General). Now you are able to input the DVR control address and use the keyboard keys to control menu items, or any PTZ. See Figure 9-1. Note：The keyboard works only when ACT light is on. Figure 9-1 ©2009 IC Realtime, Inc.
  • Page 123 Use only one primary output at a time. Either the VGA output or the first composite output. The DVR and monitor resistance are not compatible. Video transmission is too long and may be degrading the signal. The monitor’s color or brightness is not correctly setup. ©2009 IC Realtime, Inc.
  • Page 124 A/B cables furthest end to delete the feedback or impedance. Otherwise the PTZ control will be unstable. The distance is too far for data communication. 12. Motion detection function does not work. These are the possibilities: Period setup is incorrect. ©2009 IC Realtime, Inc.
  • Page 125 These are the possibilities: DVR serial port connection is incorrect. Address is not correctly setup with either the DVR or the keyboard. When there are several converters, the power supply may not be sufficient. Transmission distance is too far. ©2009 IC Realtime, Inc.
  • Page 126 Only authorized vendors will be able to receive help on this topic. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. ©2009 IC Realtime, Inc.
  • Page 127 Step 4: According to Formula (4) to calculate total capacity (accumulation) q that is needed for all channels in DVR during alarm video recording (including motion detection). ×a% ∑ In the formula ：a% means alarm occurrence rate ©2009 IC Realtime, Inc.
  • Page 128 Super Stick Kingax Super Stick Netac U210 128M Netac U210 256M Netac U210 512M Netac U210 Netac U210 Teclast Ti Cool 128M Teclast Ti Cool 256M Teclast Ti Cool 512M Teclast Ti Cool Teclast Ti Cool ©2009 IC Realtime, Inc.
  • Page 129 DW1650 DVD-RW BenQ DW1640 DVD-RW BenQ 5232W CD-RW Samsung TS-H652M DVD-RW GH20NS10 SATA DVD-RW PIONEER DVR-212D SATA DVD-RW Sony AW-G170S SATA DVD-RW Samsung TS-H653A SATA DVD-RW Panasonic SW-9588-C SATA DVD-RW Sony DRX-S50U DVD-RW BenQ 5232WI DVD-RW ©2009 IC Realtime, Inc.
  • Page 130 SATA Western Digital Caviar SE16 WD7500KS 750G SATA Western Digital Caviar SE16 WD5000KS 500G SATA Western Digital Caviar SE16 WD4000KD 400G SATA Western Digital Caviar SE16 WD3200KS 320G SATA Western Digital Caviar SE16 WD2500KS 250G SATA ©2009 IC Realtime, Inc.
  • Page 131 All manuals and user guides at all-guides.com ©2009 IC Realtime, Inc.

Table of Contents
