SECTION
1. TECHNICAL SPECIFICATIONS ................................................................................................... 1
2. SERVICE HINTS........................................................................................................................... 2
3. SERVICE TOOLS.......................................................................................................................... 2
4. SERVICE MODE........................................................................................................................... 3
5. MICROPROCESSOR AND IC DATA............................................................................................. 4
6. BLOCK DIAGRAM ........................................................................................................................ 7
7. FLAG NO....................................................................................................................................... 7
8. SCHEMATIC DIAGRAM................................................................................................................ 9
9. PARTS LOCATIONS (Chip parts Side) ....................................................................................... 15
10. EXPLODED VIEW AND PARTS LIST ......................................................................................... 19
11. ELECTRICAL PARTS LIST ......................................................................................................... 22
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
All manuals and user guides at all-guides.com
TEXT
POWER
ON/OFF
TABLE OF CONTENTS
CD-17mkIII
CD17MK3 /
PLAY
STOP
OPEN/CLOSE
FILTER

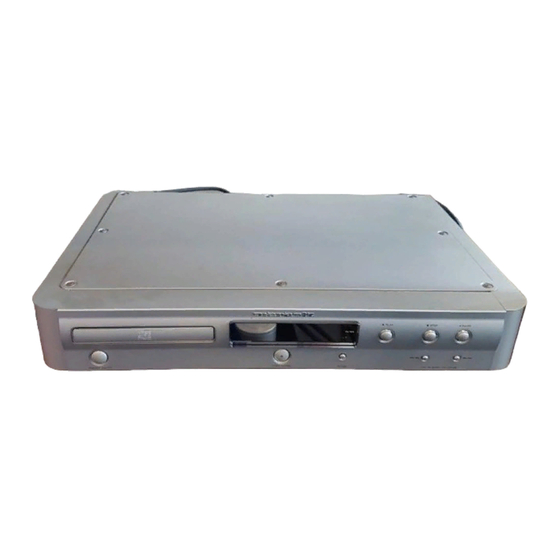

CD PLAYER CD-17mkIII
K1G/N1G/S1G
/N1S
CD Player
PAUSE
PAGE
R
10AK855010 MIT
First Issue 2003.02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Marantz CD17MK3
Summary of Contents for Marantz CD17MK3
-
Page 1: Table Of Contents
All manuals and user guides at all-guides.com Service CD17MK3 / K1G/N1G/S1G /N1S Manual CD Player PLAY STOP PAUSE TEXT POWER OPEN/CLOSE FILTER CD PLAYER CD-17mkIII ON/OFF TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ....................1 2. SERVICE HINTS........................... 2 3. - Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed.
-
Page 3: Technical Specifications
All manuals and user guides at all-guides.com 1. TECHNICAL SPECIFICATIONS Audio Characteristics Channels ................2 channels Sampling frequency..............44.1 kHz Quantization ............16-bit linear/channel Error correction..... Cross-interleave read solomon code (CIRC) Wow & fl utter ............Precision of quartz Optical Readout System Laser ............. GaAIAs semiconductor Wavelength ................ -
Page 4: Service Hints
All manuals and user guides at all-guides.com 2. SERVICE HINTS 3. SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. -
Page 5: Service Mode
All manuals and user guides at all-guides.com 4. SERVICE MODE 1. How to enter into the Service Mode Turn the power on while pressing [PLAY]+[OPEN/ CLOSE] buttons together. The display shows “model number”, “microprocessor ver- sion” and “mode”. C D 1 9 : 1 0 P 0 0 Mode number Microprocessor version Model number (... -
Page 6: Microprocessor And Ic Data
All manuals and user guides at all-guides.com 5. MICROPROCESSOR AND IC DATA Q101 TDA1302T Q102 SAA7372GP SYMBOL DESCRIPTION SYMBOL DESCRIPTION output of diode current amplifier 4 VSSA1 *analog ground 1 output of diode current amplifier 6 VDDA1 * analog supply voltage 1 output of diode current amplifier 3 unipolar current input (central diode signal input) output of diode current amplifier 1... - Page 7 All manuals and user guides at all-guides.com QD01/QD51 PCM1716 QD02 TC160G11AU-1305 QY01 µPD78076 SYMBOL To/From Description Name Port Active To/From Description P120/RTP0 QD01/QD5 Latch signal for mode control of DAC QD01/QD51 NAME DESCRIPTION BCLK1 Q102 Serial bit clock input MBCK IN/OUT P121/RTP1 QD01/QD5 Serial clock for mode control of DAC QD01/QD51 LRCIN...
-
Page 8: Block Diagram
All manuals and user guides at all-guides.com QY02 µPD780204 6. BLOCK DIAGRAM DECORD & SERVO Q102 Pin No. Port Name Function To/From Descriptio Active SAA7372 MOTOR DRIVE CD MECHANISM +5VD +5VD VAM1201 & HF AMP OPEN LED On/Off INTERFACE DIF/DAC L.P.F&HDAM DISC OPEN... -
Page 9: Schematic Diagram
All manuals and user guides at all-guides.com 8. SCHEMATIC DIAGRAM R153 7 OR 8 BIT CLK VAM1201 R141 J101 R150 SERVO PCB(PV16) R149 R142 L143 Q109 D3,D4 R143 2SC2712 120/190 R144 C124 C145 C126 R145 10/16V XMODE 100/140/200 J102 J103 W102 C112 LDON... - Page 10 All manuals and user guides at all-guides.com FRONT PCB (PY16) MAIN PCB (PP16-2/3) POWER ON CY08 +5VD VY01 RY09 220K CY01 2.2/50V QY03 RNDM PROG EDIT A – B RPT S806D-Z +5VD FILTER DISC INDX PEAK TIME TRIS CY03 CY02 XY01 TROS 47/16V...
- Page 11 All manuals and user guides at all-guides.com FOR MPU FOR Q102 MAIN PCB (PP16-3/3) +12V R669 JUMPER QD51 PCM1716 C664 RH52 RH51 DH52 220/16V WCLK +5VD LRCK 1SS302 CD13 R653 C655 SERIAL MBCK 3.01k 1200p Filter-1(Sharp roll-off) Filter-2(Slow roll-off) DATA MBCK Q657 INPUT...
-
Page 12: Parts Locations (Chip Parts Side)
All manuals and user guides at all-guides.com 9. PARTS LOCATION (Chip parts Side) QY05 QY08 PY16 PV16 QY02 QY04 QY06 QY07 WG382K162-0 PY16 CY09 LY03 LY01 Q191 SY06 RY07 SY04 Q191 QY08 DY05 QY02 C192 R129 R128 SY05 PAUSE STOP UPD780204 R194 DY04... - Page 13 All manuals and user guides at all-guides.com PP16 QN92 QN55 Q658 QD51 Q901 QN91 QN56 Q657 QH56 ~ QH51 QN06 Q608 QH06 ~ QH01 QD01 QD12 QD02 QN05 Q607 Q204 Q802 Q801 QY03 QY01 Q812 Q811 WG382K161-0 PP16 NJM4556 030G C663 CD53 HDAM R CH...
-
Page 14: Exploded View And Parts List
All manuals and user guides at all-guides.com 10. EXPLODED VIEW AND PARTS LIST K V E RS I ON W0 0 1 0 0 3 Dx 6 0 0 2 Dx 2 SH0 2 5 1 2 8 CASE ASSY. ( 0 5 2 N) x 2 ( 0 5 3 N) x 2 SH0 1... - Page 15 305K262010 SPARE PARTS 025M 305K058500 GEAR K 305K058500 001S PACKING CASE 10AK801010 030M 305K264010 BELT 305K264010 002S CUSHION 4 PIECE 318K809010 035M 305K064110 CASE 305K064110 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
-
Page 16: Electrical Parts List
All manuals and user guides at all-guides.com 11. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : ASSIGNMENT OF COMMON PARTS CODES. RESISTORS The suppliers and their type numbers of fusible resistors : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows;... - Page 17 ELECT. 220µF ±20 16V SILMIC OA22701640 R149 CHIP . 22kΩ ±5% 1/16W NN05223610 C666 ELECT. 220µF ±20 16V SILMIC OA22701640 R150 CHIP . 22kΩ ±5% 1/16W NN05223610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 18 NI05561110 CHIP . 560Ω ±5% 1/10W NI05561110 1SS176 MA165 1SS254 30V 0.1A RH58 NI01333110 CHIP . 33kΩ ±1% 1/10W NI01333110 DN07 HD30561000 ZENER DIODE 5.6V HD30561000 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 19 Q101 HC10136490 IC TDA1302T SERVO PRIAMP HC10136490 Q192 HT30001000 TRS. HT30001000 PP16-MISCELLANEOUS 2SC2458 2SC1740S 2SC3199 ETC F811 FS10080850 FUSE T800 MA 250V BS LISTED FS10080850 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 20 LY02 FC90030070 FERRITE CORE BLM31A02 FC90030070 CHIP INDUCTOR LY03 FC90030070 FERRITE CORE BLM31A02 FC90030070 CHIP INDUCTOR SY01 SP01013370 PUSH SWITCH SP01013370 SY07 EVQ11L05R H/5MM 160GF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
