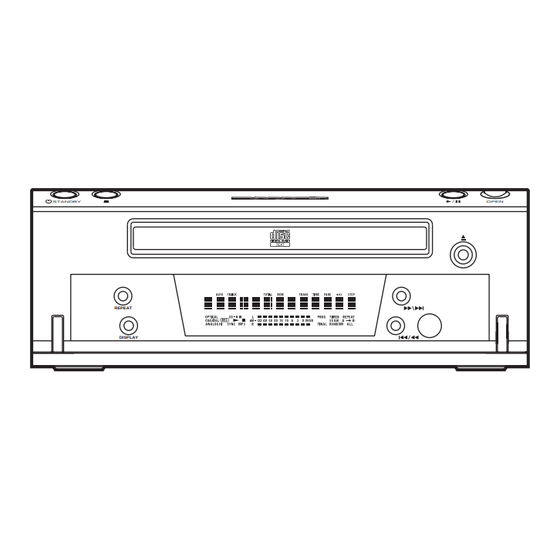

Marantz CD110/N1S Service Manual

Cd player marantz cd110 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

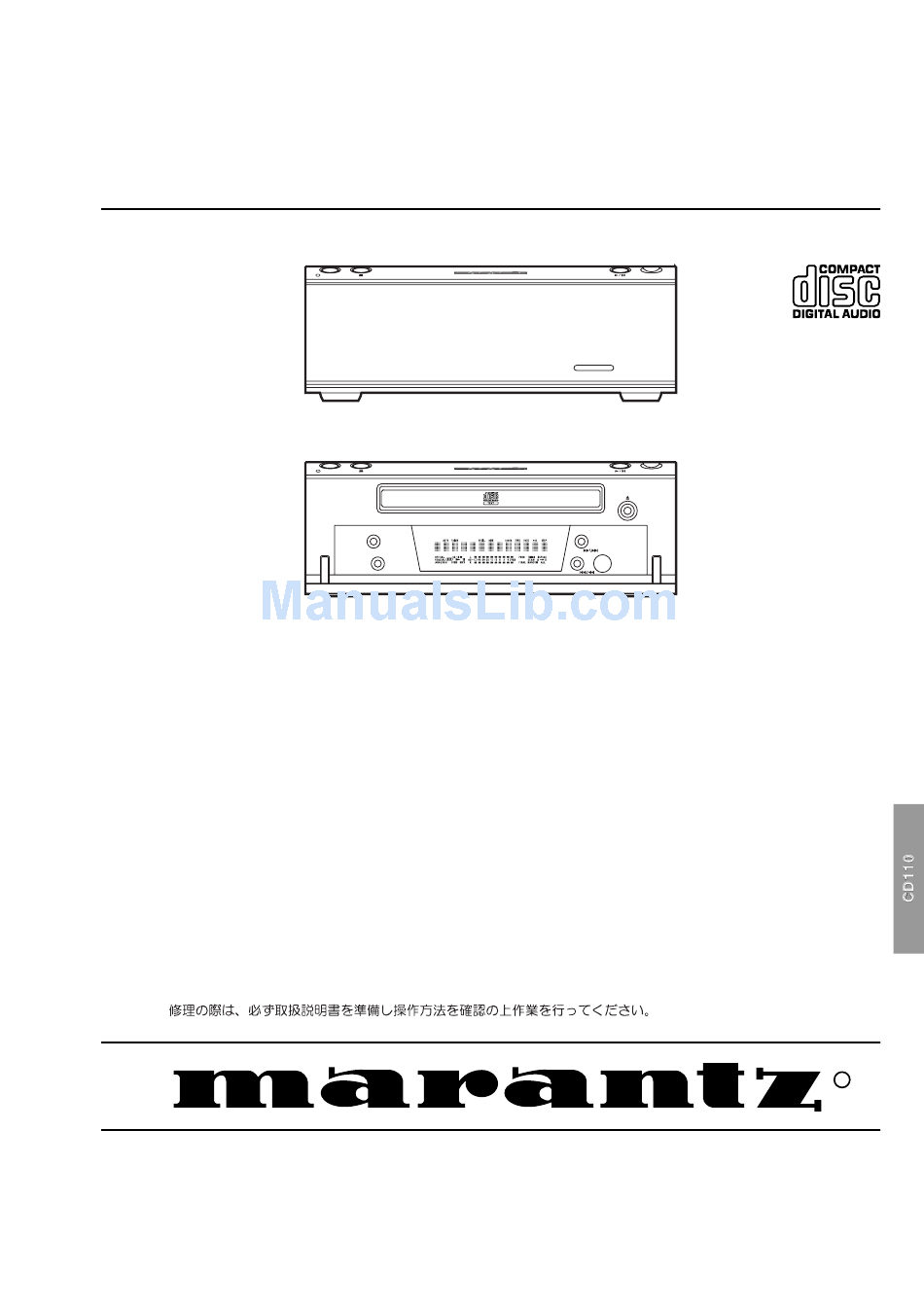

Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS ........................................................................... 1
2. SERVICE MODE .................................................................................................. 2
3. WIRING DIAGRAM ............................................................................................... 3
4. BLOCK DIAGRAM ................................................................................................ 5
5. SCHEMATIC DIAGRAM ....................................................................................... 7
6. PARTS LOCATION (Pattern Side) ..................................................................... 16
7. IC DATA .............................................................................................................. 21
8. EXPLODED VIEW AND PARTS LIST ................................................................ 31
9. ELECTRICAL PARTS LIST ................................................................................ 35
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
STANDBY
STANDBY
REPEAT
DISPLAY

TABLE OF CONTENTS

CD110
CD110 /
F1S, /N1S, /U1S
CD Player
OPEN
CD110
OPEN
PAGE
326W855010 MIT
3120 785 22720
First Issue 2001.11
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD110/N1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz CD110/N1S

Summary of Contents for Marantz CD110/N1S

  • Page 1: Table Of Contents

    Service CD110 / F1S, /N1S, /U1S Manual CD Player STANDBY OPEN CD110 STANDBY OPEN REPEAT DISPLAY TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ................1 2. SERVICE MODE ....................2 3. WIRING DIAGRAM ....................3 4. BLOCK DIAGRAM ....................5 5.
  • Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.

  • Page 3: Technical Specifications

    1. TECHNICAL SPECIFICATIONS Audio Characteristics Channels ..............................2 channels Frequency range ..........................20Hz-20kHz Dynamic range ............................> 90 dB S/N ratio (WTD) .............................. 87 dB Channel separation (1 kHz) ........................... 87 dB THD (1 kHz) ..............................0.02 % Wow & flutter ..........................Precision of quartz Error correction .................

  • Page 4: Service Mode

    2. SERVICE MODE Service Mode 1. While Mains cord is disconnected, press STOP Button on the unit and plug in the Mains cord. 2. Version number of the front micom software is displayed. 3. Press FF/NEXT Button(>>/>>|) then Display segment test begins. 4.

  • Page 5: Wiring Diagram

    3. WIRING DIAGRAM...

  • Page 6: Block Diagram

    4. BLOCK DIAGRAM...

  • Page 7: Schematic Diagram

    5. SCHEMATIC DIAGRAM MAIN BOARD FRONT BOARD...
  • Page 8 RF BOARD...
  • Page 9 AUDIO BOARD...
  • Page 10 MP3 BOARD...

  • Page 11: Parts Location (Pattern Side)

    6. PARTS LOCATION FRONT BOARD Q803 Q802 Q804 IC801 Q801...
  • Page 12 AUDIO BOARD IC309 RF BOARD Q201 IC201 Q206 Q205 Q203 Q204 Q304 Q301R Q302R Q302L Q301L IC202 IC305 IC304 Q309 Q310 IC303 IC203 IC301 Q307 Q308 Q306 Q305...
  • Page 13 MAIN BOARD Q104 IC102 Q102 Q103 IC103 Q101 Q105...
  • Page 14 MP3 BOARD IC501 IC507 IC505 IC502 IC503 IC509 IC504 IC506 IC508 MP3 TEST BOARD REGULATOR BOARD...

  • Page 15: Ic Data

    7. IC DATA IC201:CXP2581 Block Diagram Pin Configuration RFAC EQ_ON/OFF RW/ROM DC_OFST DC_OFST RFDCI RFDCI RW/ROM RFDCO EQ_IN RFDCO AC_SUM VOFST RW/ROM TE_BAL RW/ROM VOFST RW/ROM VOFST RW/ROM TE_BAL RW/ROM APC-OFF (Hi-Z) RW/ROM VOFST RFAC (H/L) Pin Description Symbol Description APC amplifier output.
  • Page 16 IC203:CXD3068Q Block Diagram...
  • Page 17 IC303:NJM2068 Pin Configuration IC502:T224162 Pin Assignment Pin Description...
  • Page 18 IC304:PCM1748 BLOCK DIAGRAM Serial LRCK Input Output Amp and DATA Low-pass Filter Oversampling Enhanced Digital Filter Multi-level with Delta-Sigma Function Function Modulator Controller Control Output Amp and Low-pass Filter System Clock System Clock Zero Detect Power Supply Manager PIN ASSIGNMENTS PIN CONFIGURATION NAME TYPE DESCRIPTIONS...
  • Page 19 IC503/509:74HC08 PIN DESCRIPTION PIN NO. SYMBOL NAME AND FUNCTION 1, 4, 9, 12 1A to 4A data inputs 2, 5, 10, 13 1B to 4B data inputs 3, 6, 8, 11 1Y to 4Y data outputs ground (0 V) positive supply voltage FUNCTION TABLE INPUTS OUTPUT...
  • Page 20 IC505:MAS3507 Pin Configuration...
  • Page 21 IC506:74HC157 PIN DESCRIPTION PIN NO. SYMBOL NAME AND FUNCTION common data select input 2, 5, 11, 14 to 4I data inputs from source 0 3, 6, 10, 13 to 4I data inputs from source 1 4, 7, 9, 12 1Y to 4Y multiplexer outputs ground (0 V) enable input (active LOW)
  • Page 22 IC801:M66004F...
  • Page 23 IC301:CXP84632 Pin Assignment PIN NO PIN NAME Operation Description ASSIGN POWER ON Output for relay on Active "HIGH" FL_RESET Output for RESET of M66005 FLT DRIVE IC FL_CE Output for CE 66005 FLT DRIVE IC CD DSP SCLK Input for SCLK of CXD3068Q CD DSP FL_DATA Output for DATA of M66005 FLT DRIVE IC ST/BY LED...

  • Page 24: Exploded View And Parts List

    8. EXPLODED VIEW AND PARTS LIST E X2 B X2 A X4 A X2 E X2 13 X2 A X3 C X9 J X2 K X7 D X4 K X2 F X2 34 X2 20 X2 6 X3 19 X2 33 X2 4 X2 K X2...
  • Page 25 SCREW,TAP TITE, +2S 3x8 CARD Warranty(CANADA Ver.) B-TYPE ZNY/BH CARD Warranty(JAPAN Ver.) SCREW,TAP TITE, +2S 3x17 001S BOX GIFT 324W801010 B-TYPE ZNY/BH 002S CUSHION SNOW 323W809010 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 26 9965 000 11138 LOADING BELT 324W264010 9965 000 11139 PLATE CLAMPER 324W005010 9965 000 11140 CLAMPER 324W005020 9965 000 11141 PULLEY 324W262010 9965 000 11142 MOTOR LOADER *MM001160R NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

  • Page 27: Electrical Parts List

    9. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : ASSIGNMENT OF COMMON PARTS CODES. RESISTORS The suppliers and their type numbers of fusible resistors : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows; : 2) GD05 ×...
  • Page 28 4822 130 30862 D,ZENER,MTZJ9.1B-0.5W/5MA *HD301970R C224 CER.CHIP,100pF-J/50V IC101 9965 000 11121 IC,KA7808 *HC300380R C225 CER.CHIP,68pF-J/50V LINEAR-REGULATOR C226 ELECT,220µF-M/10V 8x5 IC102 4822 209 31631 IC,KIA7805PI 20W-TO220IS HC3890509F LINEAR-REGULATOR C227 CER.CHIP,0.1µF-K/50V NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 29 R314 CHIP,1K-J 1/16W CP202 CN.FPC 1.0MM, R314L CHIP,330-J 1/16W 52807-1610 16P ANGLE R314R CHIP,330-J 1/16W CP203 CN.WAFER 2.0MM, R315 CHIP,47-J 1/16W GIL-S-6P-S2L2-EF R315L CHIP,100-J 1/16W NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 30 CN.WAFER 2.0MM, PLT301 4822 130 10845 MODULE,GP1F32T / YJ15000090 35237-0410 4P OPTICAL TX CP503 CN.WAFER 2.0MM, PLT302 4822 130 10845 MODULE,GP1F32T / YJ15000090 GIL-S-2P-S2T2-EF OPTICAL TX NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 31 Q804 Z801 9965 000 11028 D,ZENER,MTZJ7.5B *HD301980R FRONT -MISCELLANEOUS CN801 CN.FPC 1.0MM,52806-1910 19P STRAIGHT PLATE801 BRACKET,SCREW RM801 9965 000 10754 NJL64H380A / *HW100520R MODULE REMOTE NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
