EEI–2932

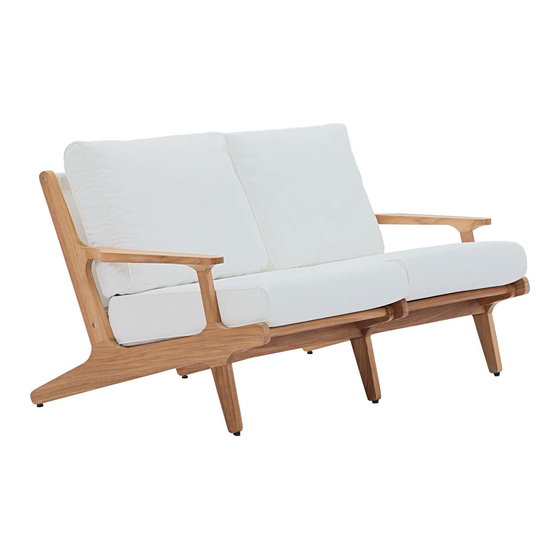

LOVESEAT
Thank you for purchasing the MODWAY LOVESEAT!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the loveseat, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
1
7
3
Customer Service 908-368-1025 www.modwayfurniture.com
5
7
4
2
2
8
︱
Hardware:
A
B
5
6
6
Bolt M8x40mm
x 12
Allen Wrench M5
x 1
1. Chair Back
x4
2. Chair Seat
x2
3. Left Frame
x1
4. Right Frame
x1
5. Back Cushion
x2
6. Seat Cushion
x2
7. Batyline
x2
8. Middle Frame
x1
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for modway EEI-2932
Summary of Contents for modway EEI-2932
- Page 1 EEI–2932 LOVESEAT Thank you for purchasing the MODWAY LOVESEAT! Before you start, here are some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the loveseat, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI–2932 LOVESEAT STEP 1: Please put Left Frame (3) on a carpeted or padded area. Insert the tenon on Chair Seat (2) into the rabbet on Left Frame (3) at first. Insert Wooden Bar or Chair Back (1) one by one through the drilling hole. STEP 2: Please insert Batyline fabric (7).
- Page 3 EEI–2932 LOVESEAT STEP 3: Carefully turn over the assembled Chair Back (1), Chair Seat (2), Left Frame (3) and Middle Frame (4). Insert the tenon on Chair Seat (2) into the rabbet on Middle Frame (8). Next insert Wooden Bar or Chair Back (1) one by one through the drilling hole. Insert Batyline fabric (7).
- Page 4 EEI–2932 LOVESEAT STEP 5: Insert 2 pieces of Bolt (A) into the pre-drilled holes on Chair Back (1) through the top pre-drilled holes on Left Frame (3). Insert 2 piece of Bolt (A) into the pre-drilled holes on Chair Seat (2) through the top pre-drilled holes on Left Frame (3).
