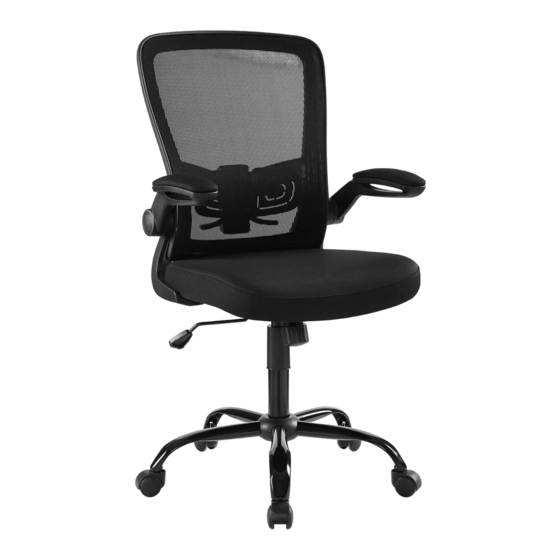

EEI –2992 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
1
Base x1
2 Cylinder Column x1
6 Right Arm x1 7 Left Arm x1
Customer Service 908-368-1025︱www.modwayfurniture.com
Hardware:
A.
B.
C.
D.
E.
5
6
4
3
2
9
1
8
3 Control Mechanism x1
8 Castor x5
Bolt M6x30mm
Bolt M6x35mm
Bolt M6x18mm
Cover
Allen Wrench
7
8
4 Seat x1
9 Round casing x1
x 4
x 4
x 4
x 4
x1
5 Back Frame x1
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for modway Exceed EEI-2992
Summary of Contents for modway Exceed EEI-2992
- Page 1 EEI –2992 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –2992 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (8) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (8). STEP 2: Carefully turn over the assembled Base (1) from step 1.
- Page 3 EEI –2992 Office Chair STEP 3: Attach Right Arm (6) and Left Arm (7) to the both side of Back Frame (5) by using 4 pieces of Bolts (B) as shown. Tighten Bolts (B) by using Allen Wrench (E) as shown. Hardware &...
- Page 4 EEI –2992 Office Chair STEP 5: Attach assembly unit in step 4 to the Seat (4) by using 4 pieces of Bolts (A) as shown. Tighten Bolts (A) by using Allen Wrench (E) as shown. Hardware & Tools required STEP 6: Attach Control Mechanism (3) to the Seat (4) by using 4 pieces of Bolts (C) as shown.
- Page 5 EEI –2992 Office Chair STEP 7: Insert assembled Control Mechanism (3) into the Cylinder Column (2) as shown. STEP 8: Assembly is complete. Your office chair is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 5...
