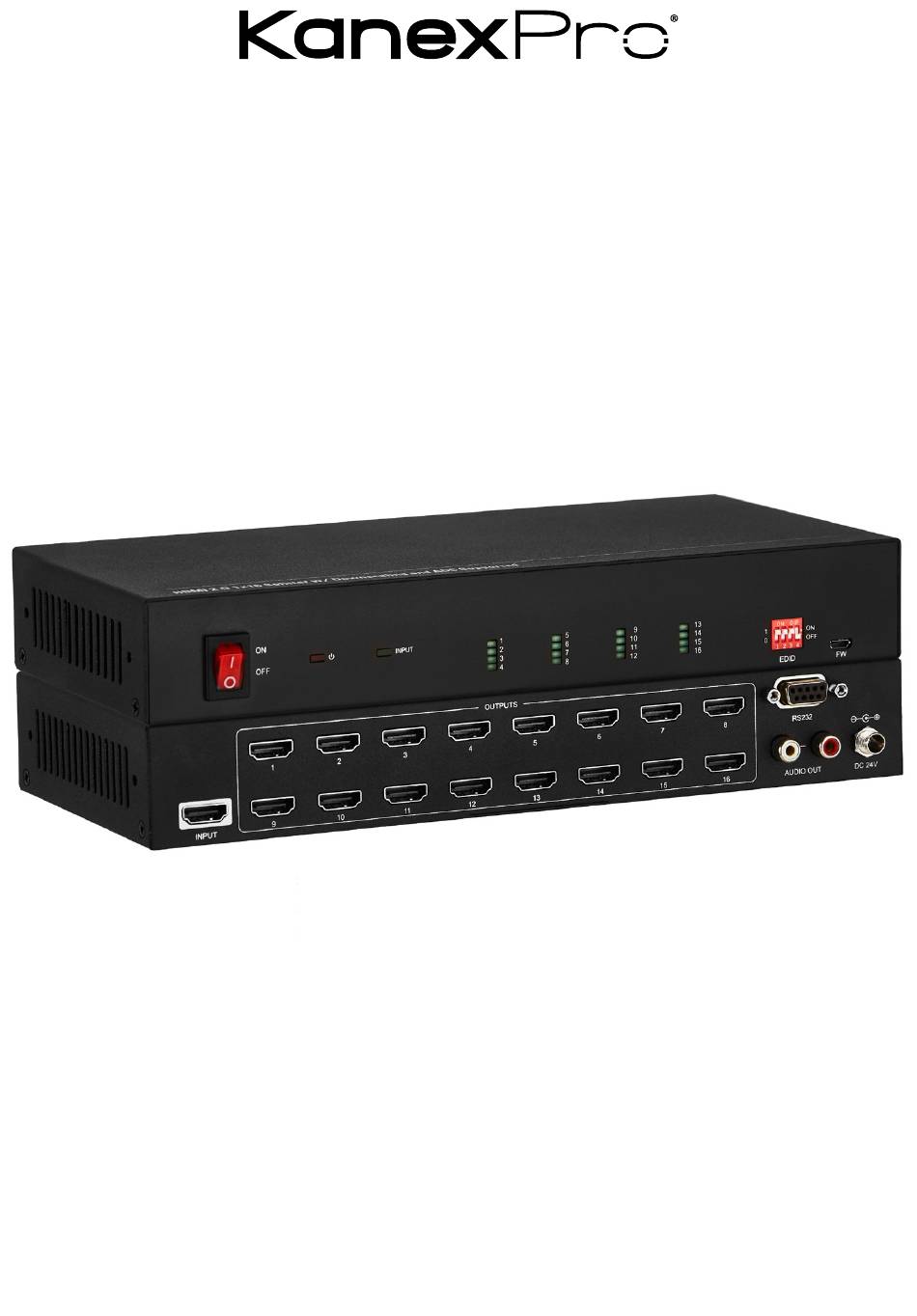

- Page 1 1x16 HDMI 2.0 Splitter with Downscaling MPN: SP-1X16SL18G VER. SUH116-H2_2021V1.2 All brand names and trademarks are properties of their respective owners...
- Page 2 1. Introduction • Do not dismantle the housing or modify the module to avoid The KanexPro 1x16 HDMI 2.0 Splitter with Downscaling is an installer- electrical shock or burn. friendly, lightweight HDMI splitter that distributes one HDMI input into •...
- Page 3 4. PANEL DESCRIPTION: Rear Panel Front Panel OUTPUTS RS232 INPUT EDID AUDIO OUT DC 24V INPUT ① POWER SWITCH: Power on/off the splitter. ② POWER LED: The LED illuminates red when power is applied. ① INPUT: Connect HDMI source. ③ INPUT LED: The LED illuminates green when there is HDMI input.
- Page 4 5. DIP SWITCH OPERATION: Switch 4 is used for HDCP setting. The switch status and its corresponding setting are shown at the below chart. The 4-pin DIP switch on the front panel of the unit is used for EDID Switch 4 Status HDCP management and HDCP management.
- Page 5 6.1 System Commands Set the HDCP active mode. [Param]= Src, Sink Command Example and Src - Active by Src. Follow Command Description >SetHdcpActiveMode Src Feedback source. >SetHdcpActiveMode Sink - Active by Sink. Follow [Param] >GetFirewareVersion Get firmware version. <V1.0.0 display. Note: The EDID switch must >SetFactoryReset Reset to factory default.
- Page 6 7. FIRMWARE UPGRADE 9. TECHNICAL SPECIFICATIONS: Please follow the below steps to upgrade firmware by the Micro-USB port: Video Input Prepare the latest upgrade file (.bin) and rename it as “FW_MERG.bin” on PC. Power off the splitter and connect the Micro-USB (FW) port of splitter to the PC with Input (1) HDMI USB cable.
- Page 7 Storage Temperature -25 to +70℃ (-13° to +158°F) Relative Humidity 10% to 90%, Non-condensing External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A Power Consumption 26W(Max) Dimension (W*H*D) 268mm x 40mm x 125mm Net Weight 1.14Kg Video Resolution Down-scaling: The splitter supports video resolution downscaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart.
